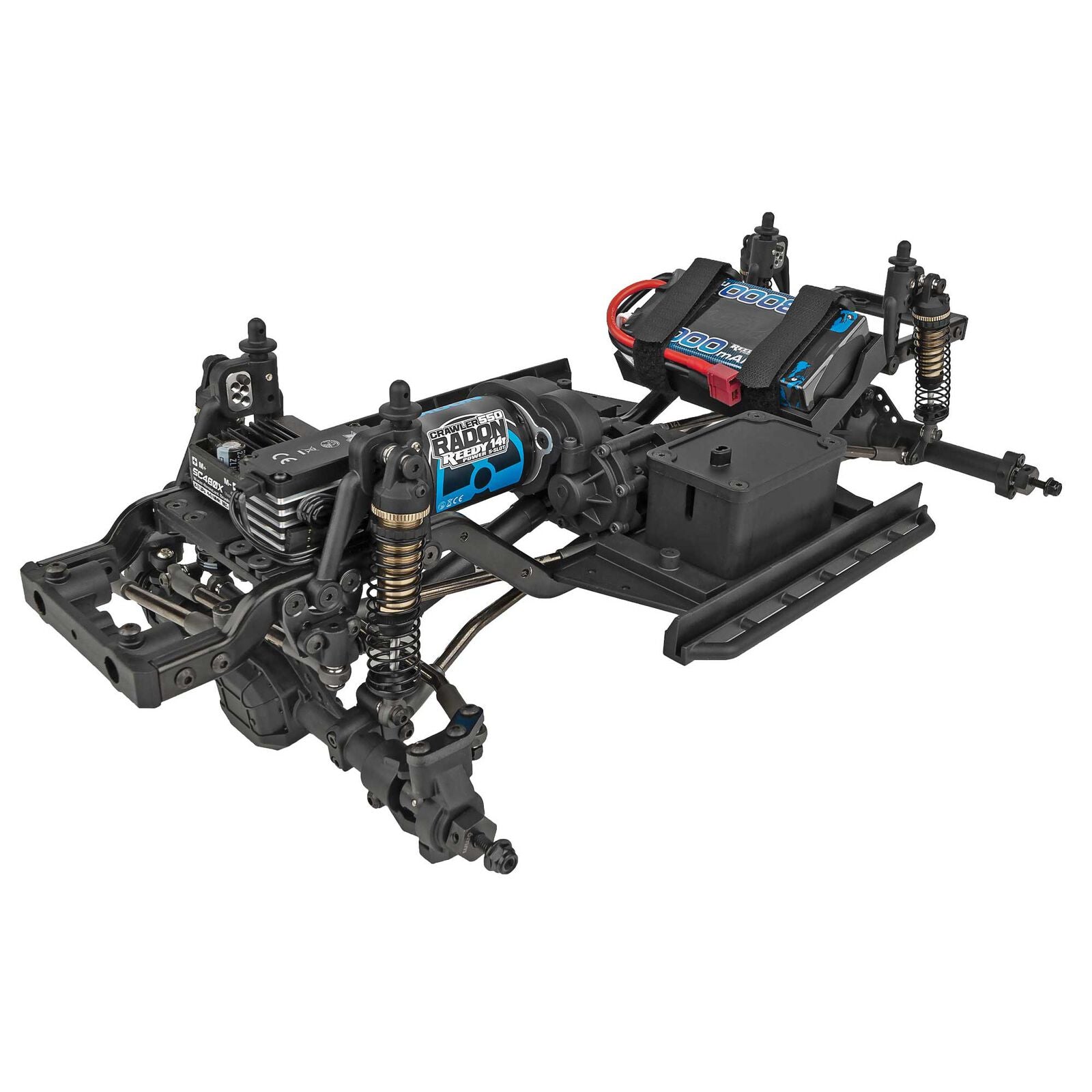

1/10 Enduro Builder’s Kit 3 4x4 Rock Crawler Kit

Always forward, never back. Here at Element RC we are always improving things, and this kit is no different. With added features and updated materials, the new and improved Enduro Builder’s Kit 3 is the perfect platform for any build.

In The Box

• (1) 1/10 Enduro Builder's Kit 3 4x4 Rock Crawler Kit

Needed to Complete

• (1) 2+ Channel Radio System
• (1) Standard-Size Steering Servo
• (1) 540-Size Motor
• (1) Electronic Speed Control
• (1) 7.2V - 7.4V Shorty Battery
• (1) Battery Charger

Enduro Builder’s Kit 3 Overview

Enduro has updated the Builder’s Kit yet again by including our GKS™ shock towers in front and rear. The shock mount inserts provide the ability to adjust shock angle, droop, and vehicle ride height without affecting spring preload. Matched up with the shock mount inserts are our race-proven ultra-smooth Factory Team bronze shocks with black plastic bleeder caps and collars–perfect for traversing rough terrain. Along with the updated shock towers, we’ve included the GKS aluminum track bar mount that is bolted directly to the frame rails. This makes the front suspension more rigid and flex-free with a more precise steering feel. Also included are updated Factory Team 12.3 and 12.8-inch wheelbase high-clearance links with black nitrate finish and durable Factory Team steel pivot balls for smooth articulation.

You get all these new features along with our forward bias motor Stealth® XF transmission with the ability to adjust the front and rear drive ratios independently across three different levels. In the box you get both the 5.7% and 11.83% overdrive gears, and available separately is a one-to-one ratio option for those who wish to drive the front and rear equally.

The behind-the-axle (BTA) steering greatly improves approach angle and front-end clearance, making rough terrain much easier to handle.

With all these updated features packed in one box, we know the new and improved Enduro Builder’s Kit 3 is better than ever. It’s the perfect rig for whatever adventures lie around the next corner. Your journey begins here!

Features

• Solid axle front suspension
• Universal front drive axles
• One-piece rear axle design
• Behind-the-axle (BTA) steering
• Aluminum steering plates
• Integrated servo winch mount
• CMS (Chassis Mounted Servo)
• Stamped steel frame rails
• Adjustable bumper mounts
• Enclosed water-resistant receiver box
• Injection-molded adjustable width rock sliders

• Threaded aluminum shock bodies
• Aluminum motor plate
• Optimized ball cups for more fluid axle articulation
• Telescopic driveshafts front and rear
• Extruded aluminum driveshaft splines
• 5mm heavy duty FT high clearance links
• Machined input pinion gear
• Metal ring gear
• Machined steel top shaft
• Metal ball bearings included
• Steel 25T servo horn

Shock Mount Inserts

GKS shock mount inserts provide drivers with the ability to rune shock angle, droop, and vehicle ride height without affecting spring preload.

12.3" and 12.8" Wheelbase High-Clearance Links

The 5mm heavy-duty links are black nitrate-coated with FT logo and length etched right on them for easy reference.

Aluminum Track Bar Mount

The GKS aluminum track bar mount bolted directly to the steel frame rail makes the front suspension more rigid and flex-free with a more precise steering.

Steel Pivot Balls

30 Factory Team machined steel pivot balls are more durable and smoother than out previous plastic pivot balls, providing a longer-laster suspension.

Factory Team Shocks

For ultra-smooth performance and looks, the machined aluminum threaded bronze-anodized shocks with black plastic caps and aluminum collars are included.

Factory Team Steel Wheel Hexes

Steel wheel hexes (12x6mm) add weight down low and provides a strong solid mount for your favorite plastic ot aluminum wheels.

Stealth XF Gearbox

At the heart of the Enduro is the low profile Stealth FX gearbox. This design moves the motor forward to help keep the weight over to the front wheels. The Stealth XF features the ability to adjust the rear drive ratio independently of the front drive across three levels.
