Tamiya

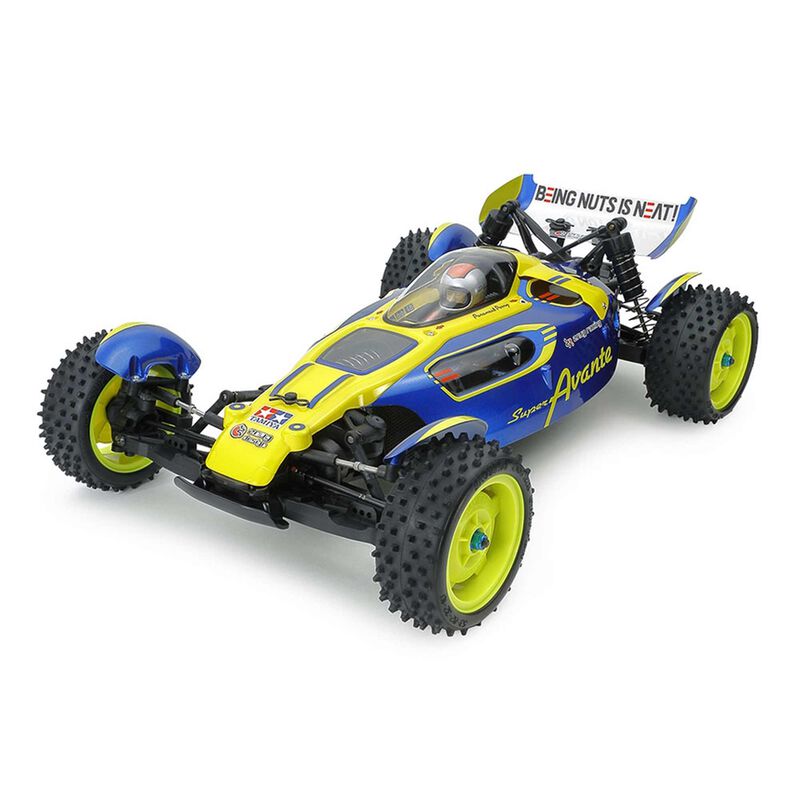

Tamiya 1/10 Super Avante TD4 4X4 Buggy Kit

Tamiya 1/10 Super Avante TD4 4X4 Buggy Kit

Regular price $314.99 USD
Regular price Sale price $314.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:TAM58696

1/10 Super Avante TD4 4X4 Buggy Kit

Tamiya’s designers have crafted the next fun to drive 4WD off-road buggy, the Super Avante!

  • Newly Designed Shaft-Driven 4WD Chassis Based On A One-Piece Monocoque Frame
  • TD4 Chassis Also Employs A Front Inboard Suspension Layout
  • Four-Wheel Double Wishbone Suspension System
  • Star Dish Wheels Are Paired With Square Spike Tires
In The Box
  • (1) 1/10 R/C Super Avante
  • (1) Instruction Manual
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) Electronic Speed Control
  • (1) 540-Size Motor
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger

Introduction

The body comes in the form of a re-imagined Avante. It even shares the fun rear wing moniker, “Being Nuts is Neat!” And, the front of the all-new TD-4 chassis, shares a front horizontal damper layout design, similar to the original Avante, except, this time around, the front dampers are underneath the body. The stylish body was designed by Kota Nezu, who has contributed to a number of popular Tamiya products.

Features

  • Polycarbonate body (inspired by the Tamiya classic, Avante) is designed by Japanese designer Kota Nezu of Znug Design.
  • Newly designed shaft-driven 4WD chassis based on a one-piece monocoque frame. It features the same ball differentials for front and rear, and features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance.

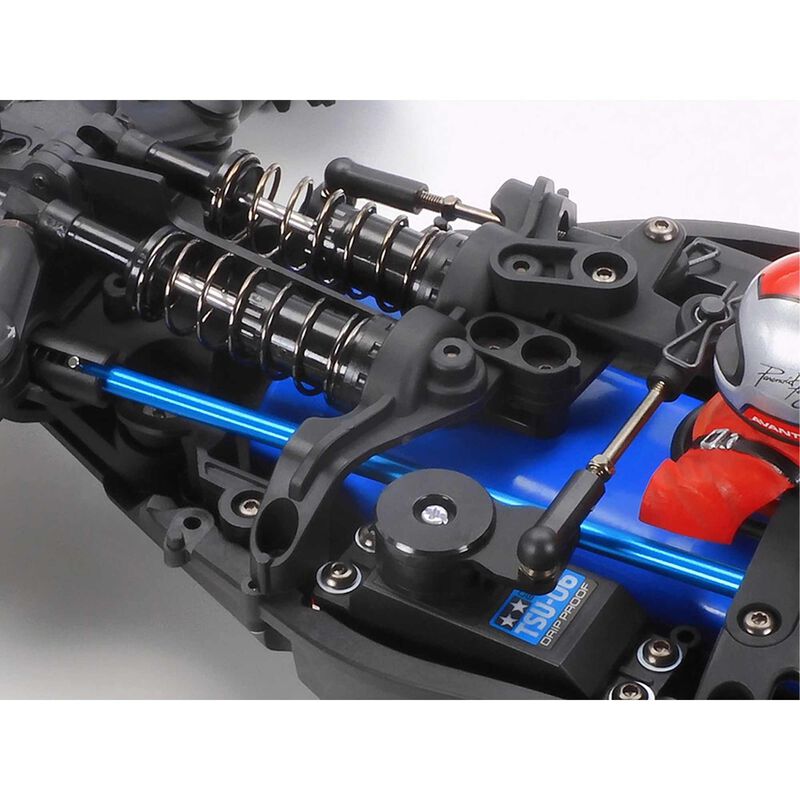

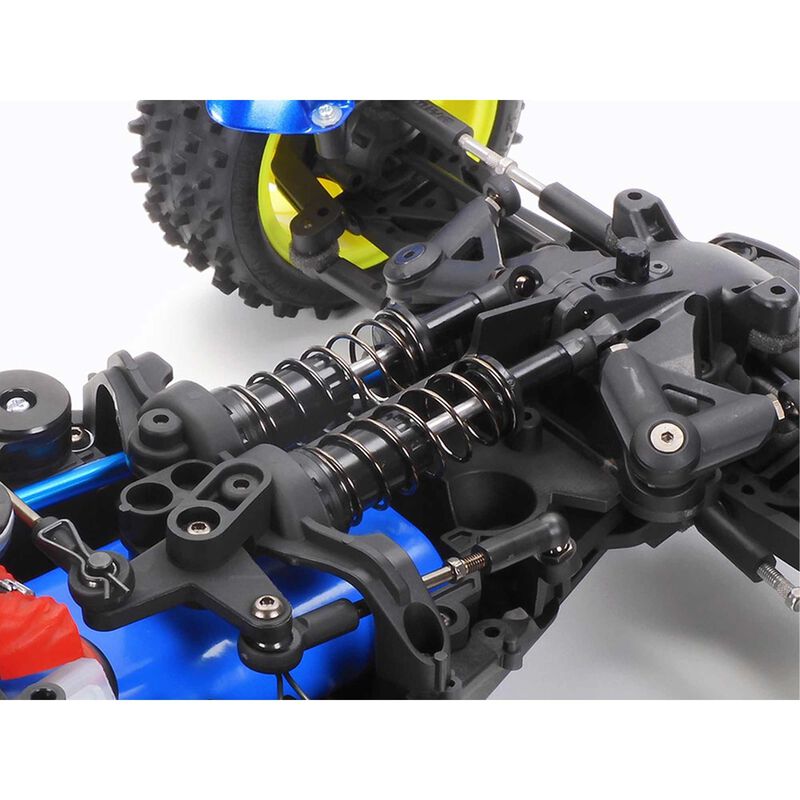

  • The TD4 chassis also employs a front inboard suspension layout which eliminates the need for a front damper stay and offers slim, low-profile form.

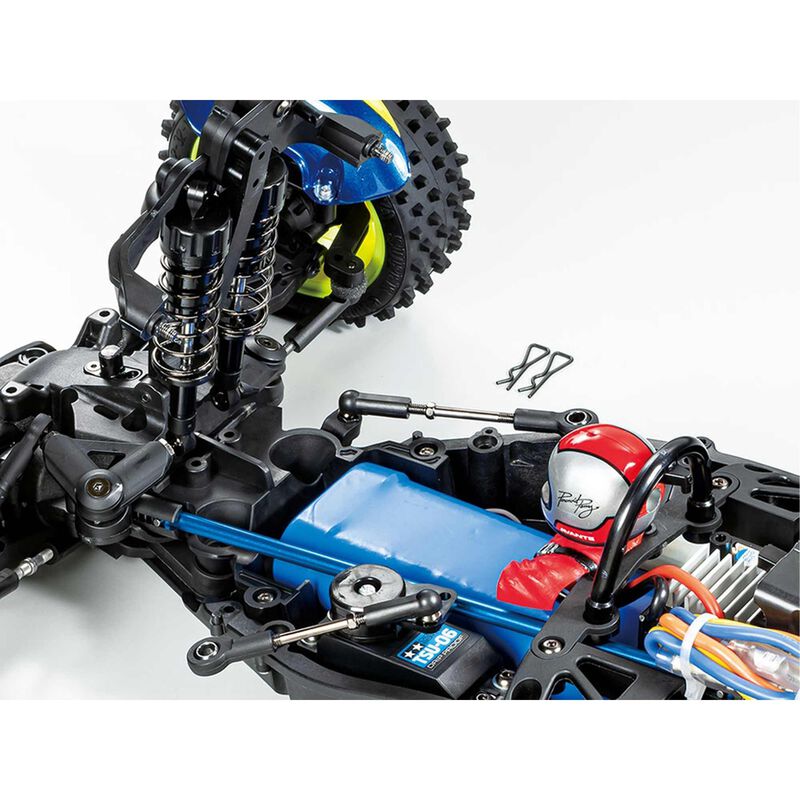

  • Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup.
  • Turnbuckle shafts for use with upper arms facilitate camber angle adjustment.
  • Star dish wheels are paired with square spike tires which offer good grip off-road.
  • Choose between high and low type wing stays to adjust the downforce depending on the road surface.
  • Comes with a driver figure for extra realism, and high-torque servo saver.
  • The four-wheel double wishbone suspension system uses CVA oil dampers for fun performance.
  • Features full ball bearings.

TD4 - Low Profile, High Performance

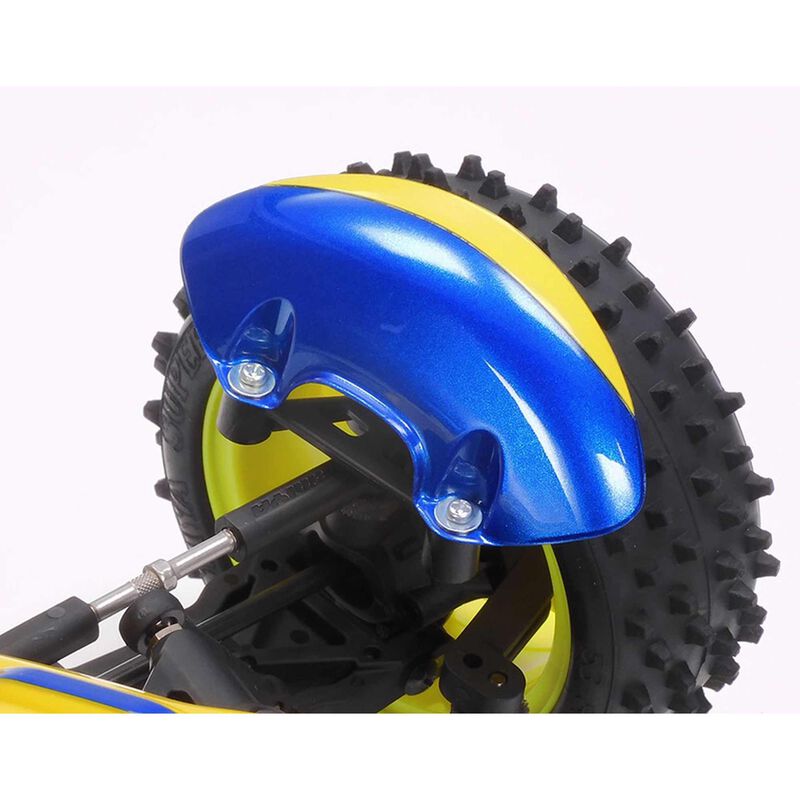

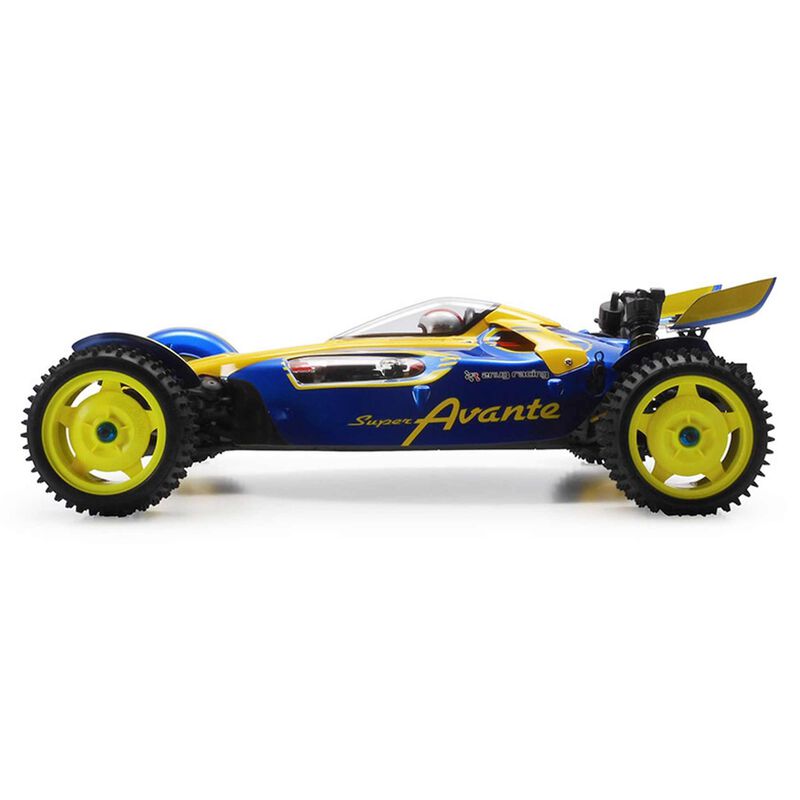

This R/C model assembly kit creates the Super Avante, a 4WD off-road buggy that is bestowed with Tamiya's legendary Avante name. It features an exceptionally low-profile design enabled in part by its front inboard suspension, with a shaft-driven 4WD drivetrain powered by a midship motor and employing front/rear ball differentials plus full ball bearings. Its futuristic body design is the work of Kota Nezu at Znug Design, and features numerous clear sections that just add to the Super Avante's distinctly modern mood, as do the cockpit-rear buttress and the four mini fenders.

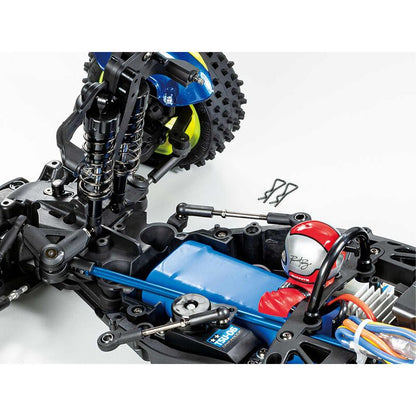

The TD4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension for slim, low-profile form. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance. The drivetrain uses full bearings, and sealed front/rear gearboxes have built-in ball differentials. Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup. 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shaft upper arms facilitate camber angle adjustment. Two types (high/low) of wing stays are included and star dish wheels are paired with square spike tires which offer superlative grip off-road.

Suspension

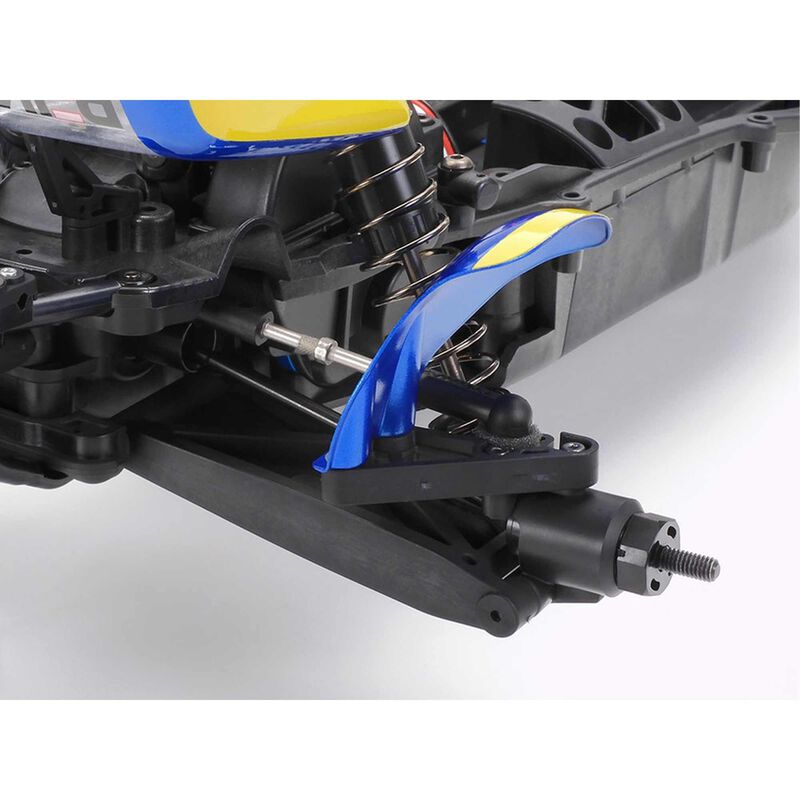

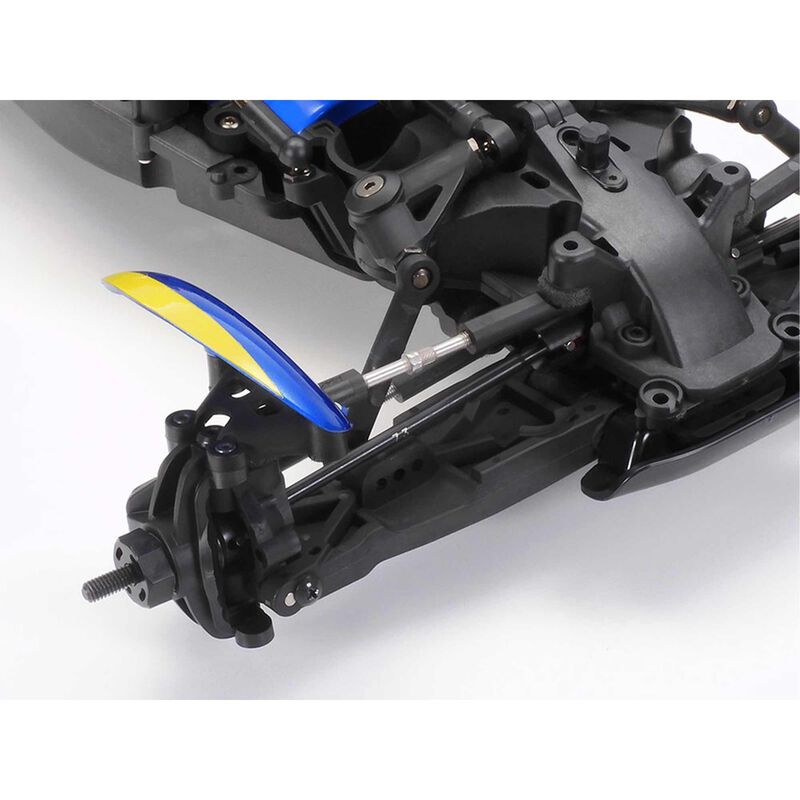

Double Wishbone Suspension

The double wishbone suspension is attached to CVA oil-filled shocks to provide the best suspension handling on the track.



Wheels and Tires
Wheels and Tires

Star dish wheels are paired with square spike tires.

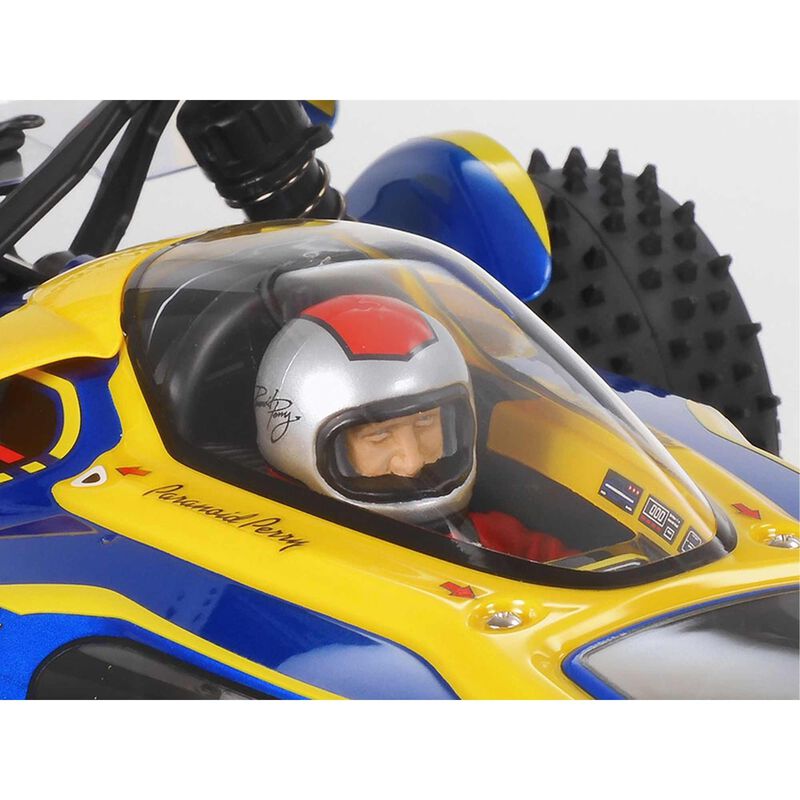

Driver Figure
Driver Figure

Includes a detailed driver figure for scale realism (figure is NOT pre-painted).

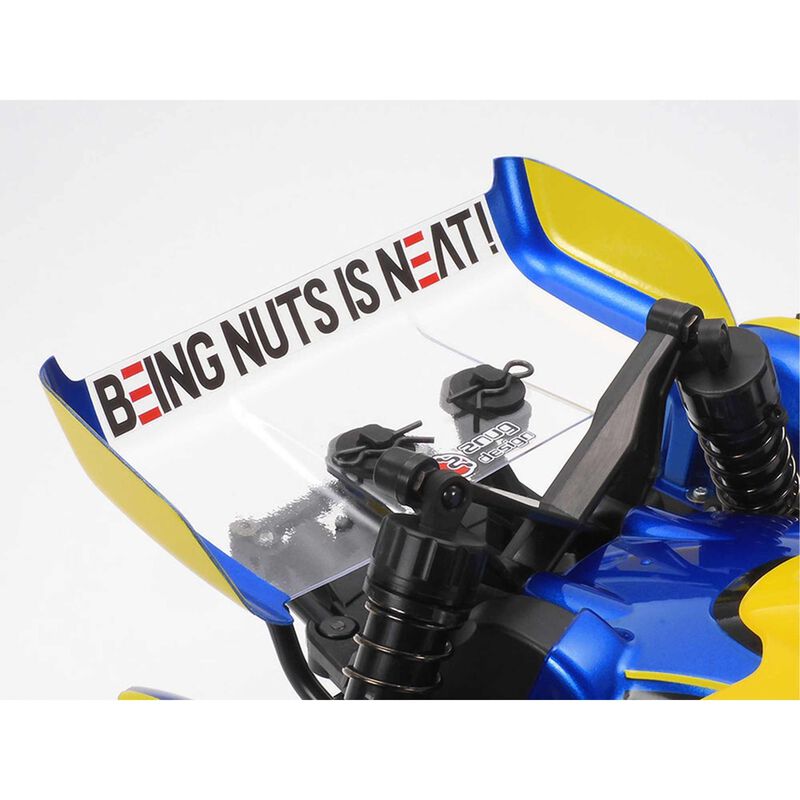

Wing
Adjustable Wing

Choose between high and low type wing stays to adjust the downforce of the wing depending on the road surface.



Product Specifications

Product Width 9.68" (246 mm)
Radio Sold Separately
Battery Sold Separately
Product Length 13.3" (338 mm)
Body Polycarbonate
