Tamiya

Tamiya 1/10 XV-02 PRO 4x4 Rally Chassis Kit

Tamiya 1/10 XV-02 PRO 4x4 Rally Chassis Kit

Regular price $364.00 USD
Regular price Sale price $364.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:TAM58707

1/10 XV-02 PRO 4x4 Rally Chassis Kit

The all-new XV-02 Pro chassis kit is Tamiya’s second modern era, purpose built, 4WD Rally machine!

  • Features Newly-Designed Parts
  • Features A Longitudinal Battery Pack Position
  • Long Aluminum Dampers Are Employed
  • Polycarbonate Chassis Cover With Wheel Well Liners
  • Comes With Rally Block Tires And Wheels
In The Box
  • (1) XV-02 PRO Chassis Kit
  • (1) Instruction Manual
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) Electronic Speed Control
  • (1) 540-Size Motor
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
  • (1) 10.1" (257mm) Rally Car Body
  • Polycarbonate Paint for Body

Introduction

The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!

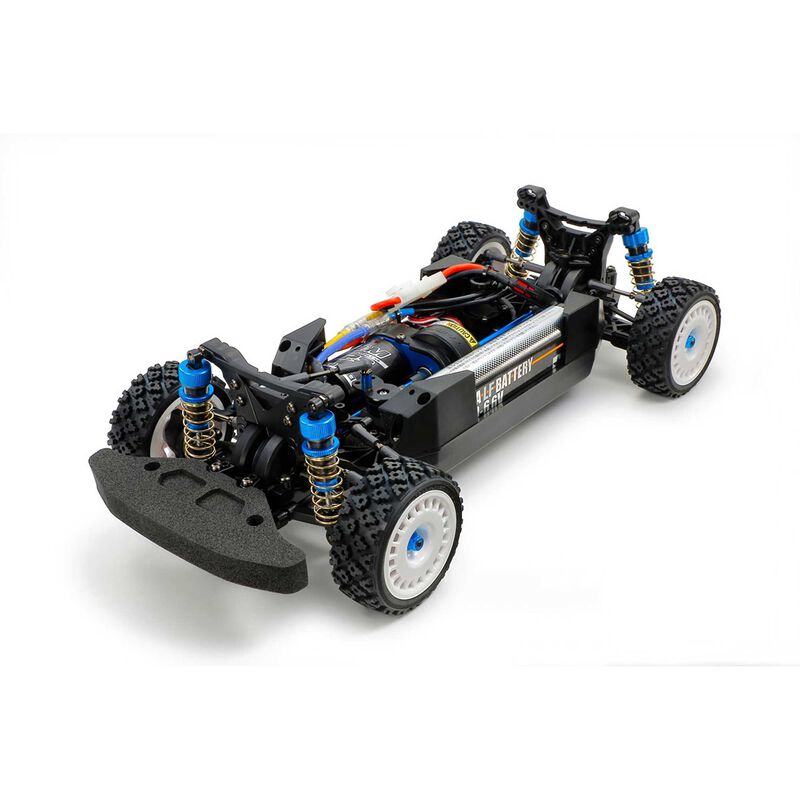

XV-02 Chassis at a Glance

  • Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
  • Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
  • Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle, and bumpers with skid angles to reduce surface contact.
  • Long aluminum dampers are employed at front and rear.

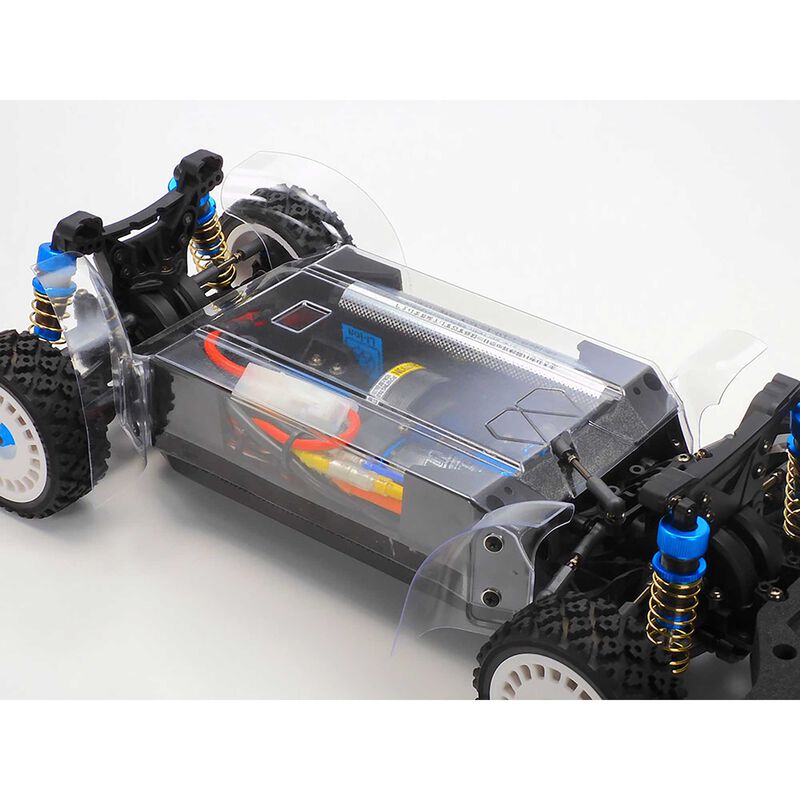

  • A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
  • Suspension arms and front uprights are based upon the XV-01 chassis kit.
  • Comes with rally block tires and wheels.
  • Features a longitudinal battery pack position in the center-left for optimum balance.
  • The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.

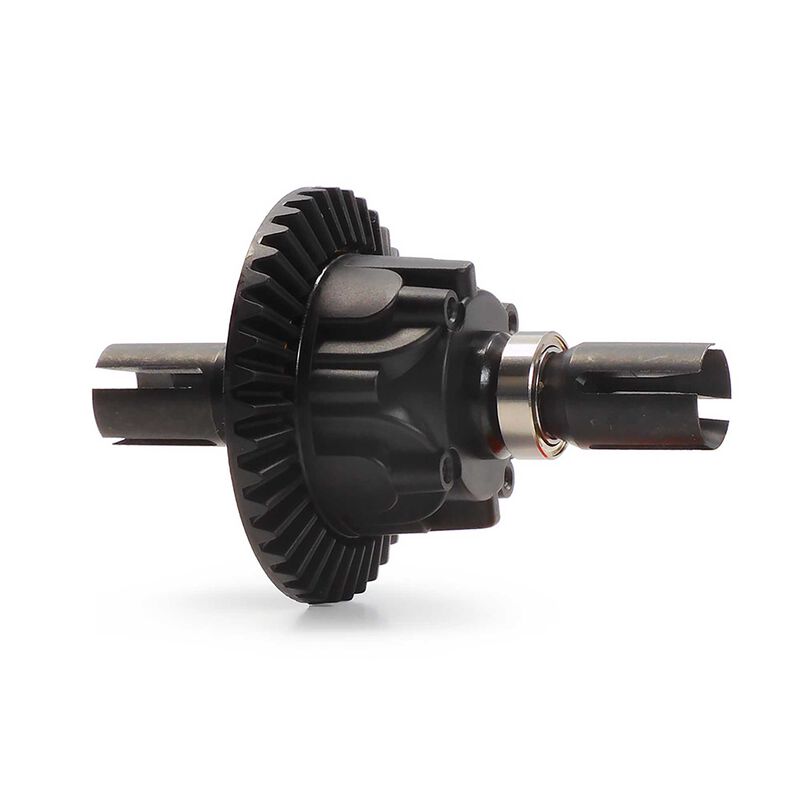

Differential Gears
Differential Gears

Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.

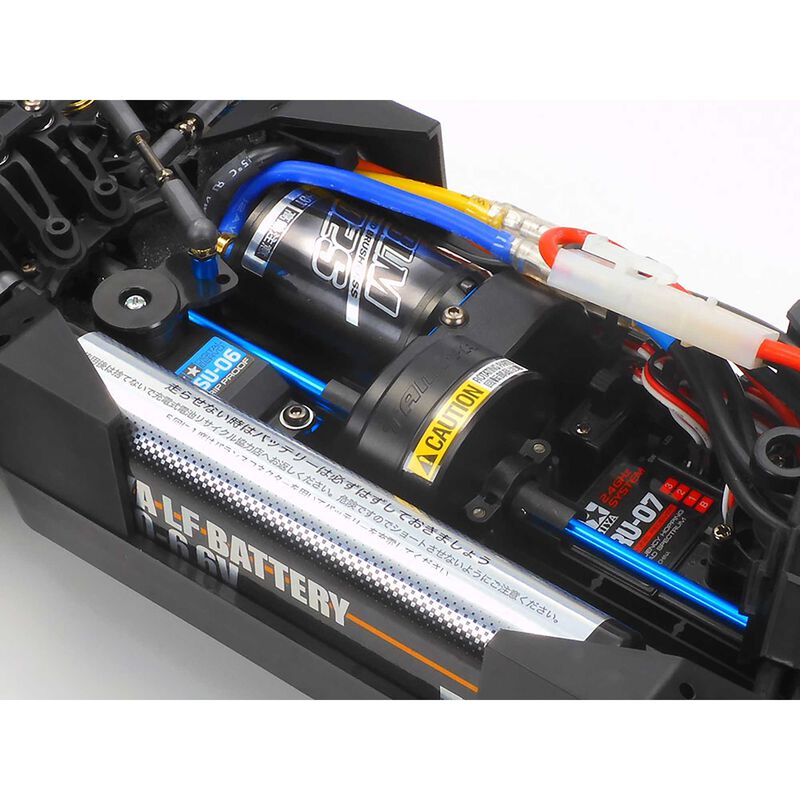

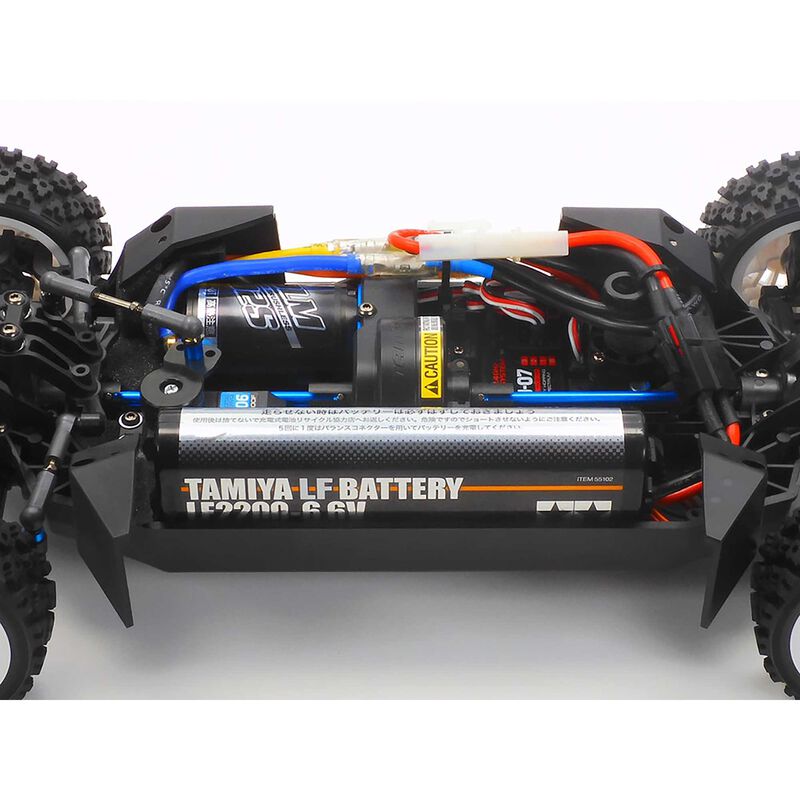

Battery Mount
Battery Mount

Features a longitudinal battery pack position in the center-left for optimum balance.

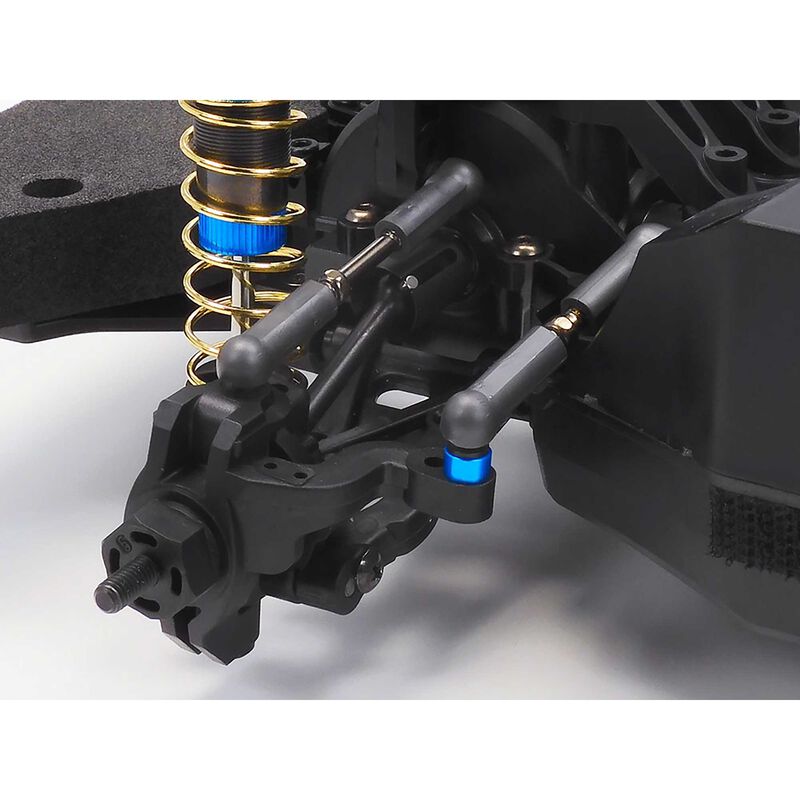

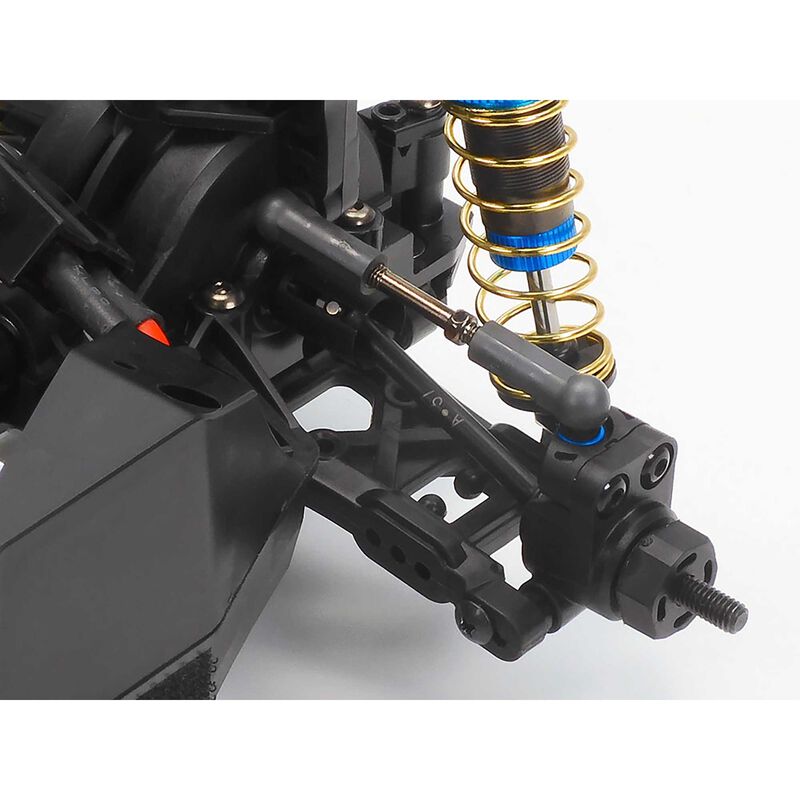

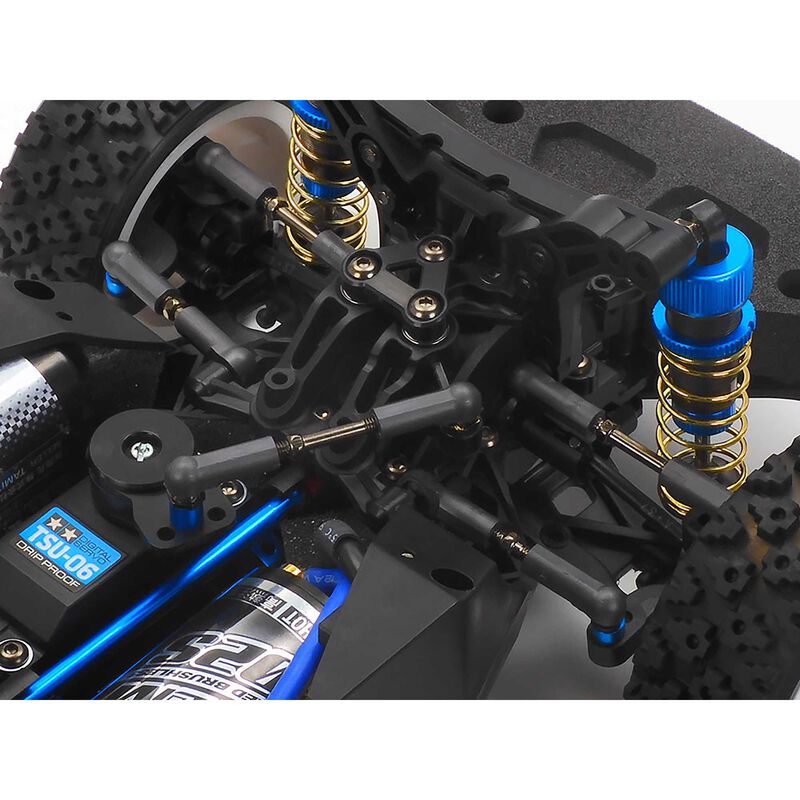

Caster Blocks
Caster Blocks

Features newly-designed parts such as caster blocks featuring 6-degree caster angle.

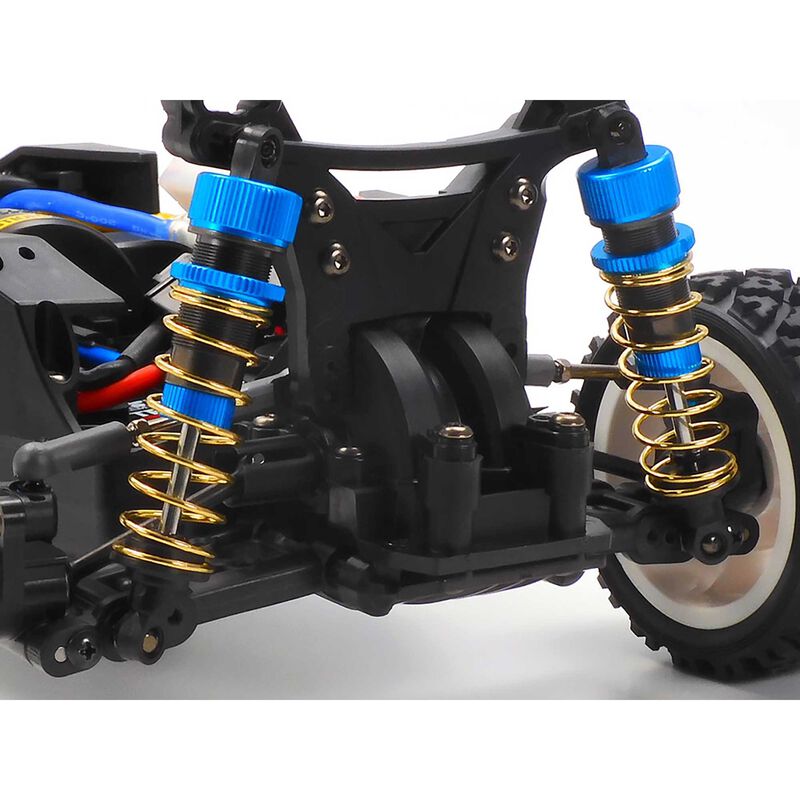

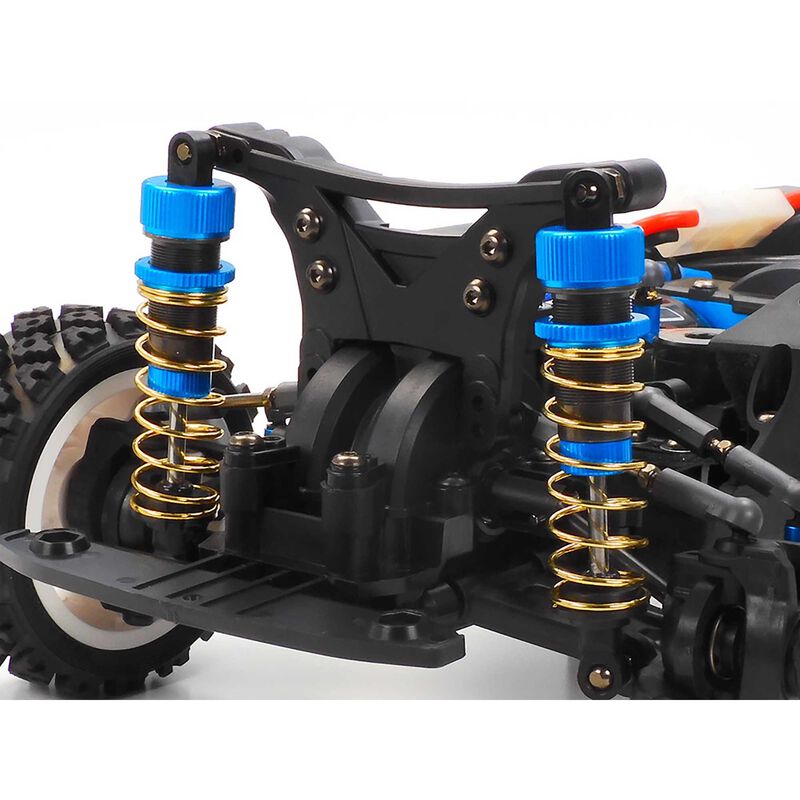

Aluminum Shocks
Aluminum Shocks

Long aluminum dampers are employed at front and rear.

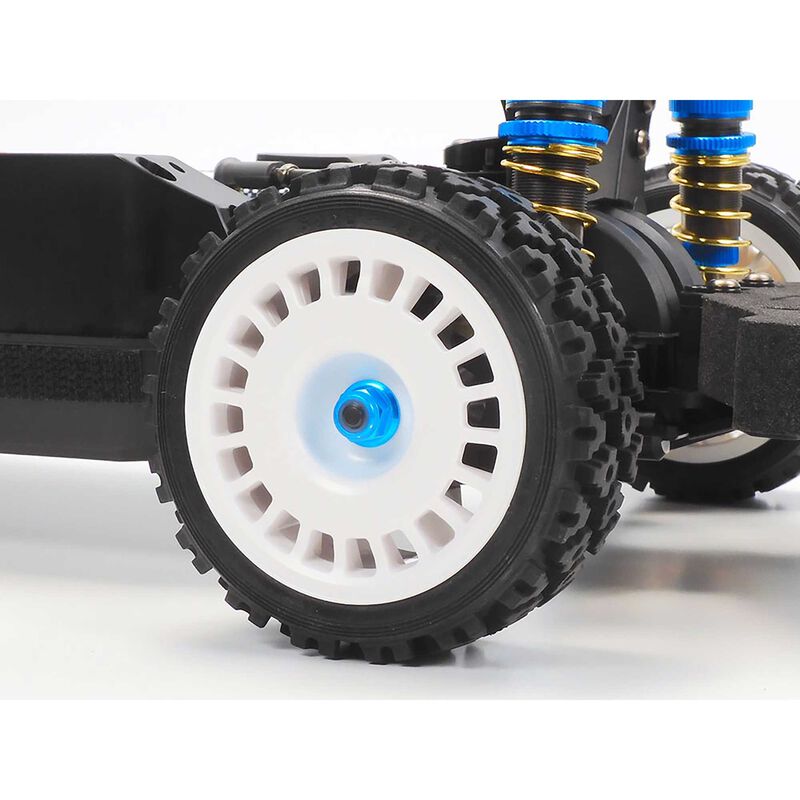

Rally Tires
Rally Tires

Comes with rally block tires and wheels.




Product Specifications

Speed Control Sold Separately
Wheelbase 10.1181" (257 mm)
Vehicle Size Standard
Product Width 7.08661" (180 mm)
