Traxxas

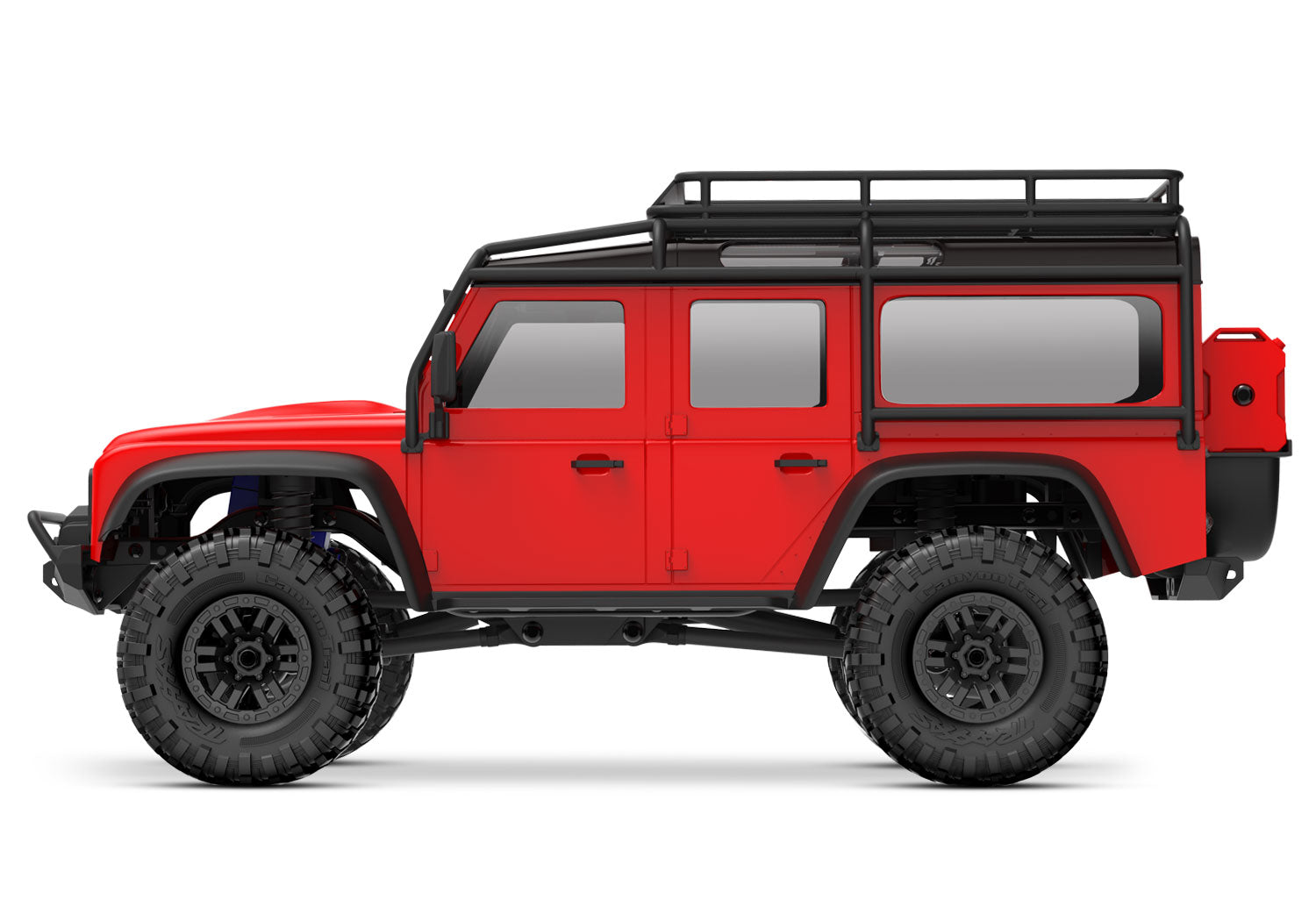

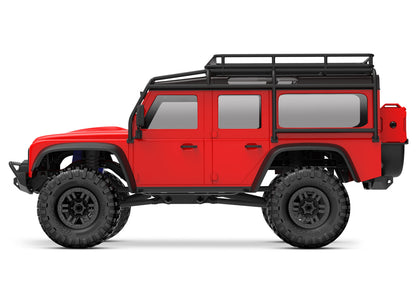

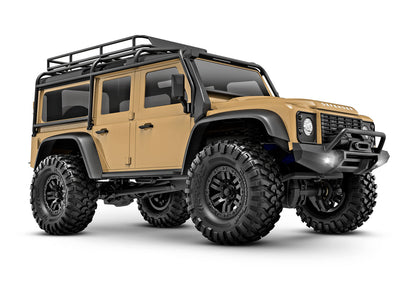

TRX-4M 1/18 Electric Rock Crawler w/Land Rover Defender Body
TRX-4M 1/18 Electric Rock Crawler w/Land Rover Defender Body
You might also need...
SKU:97054-1
Couldn't load pickup availability

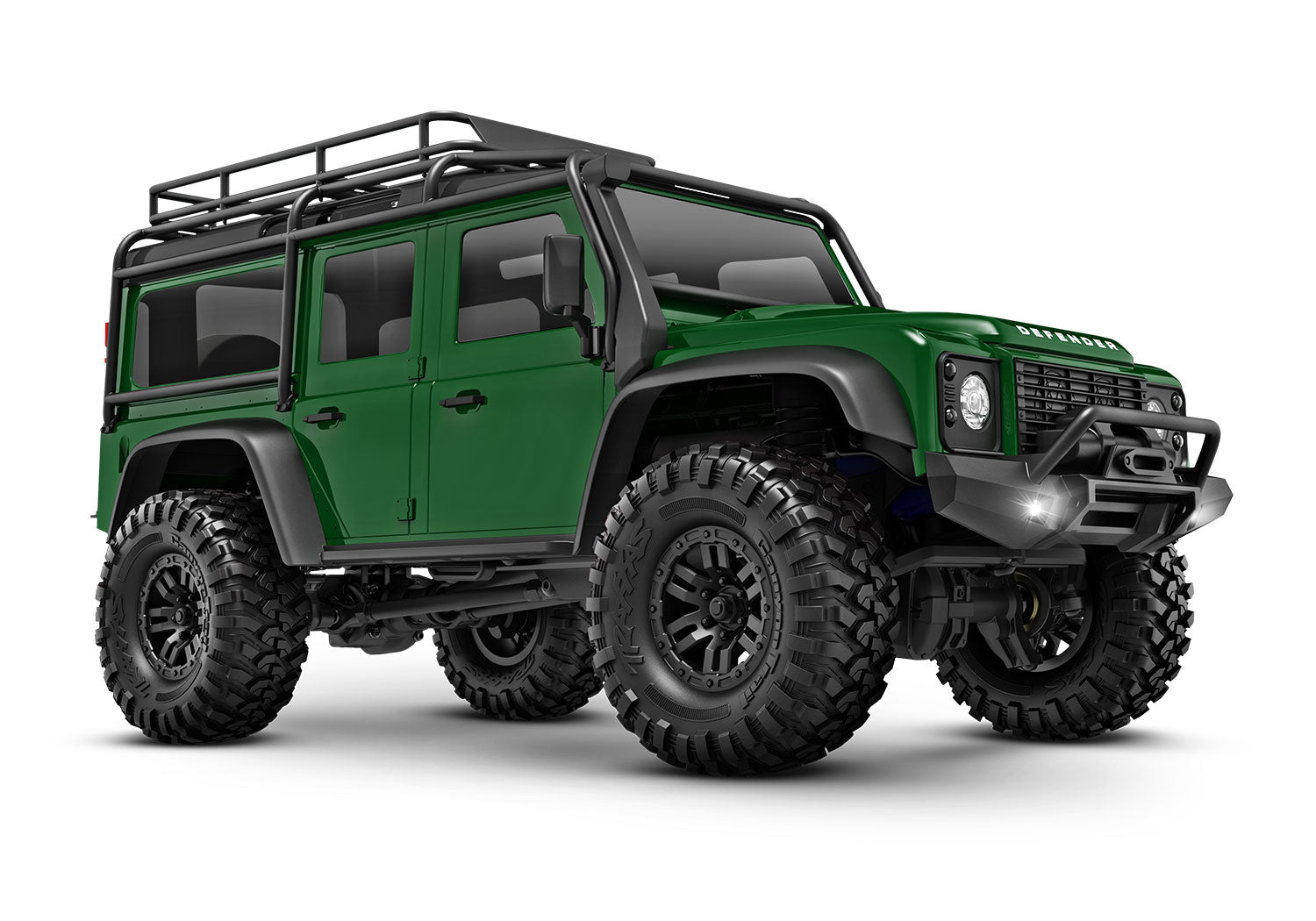

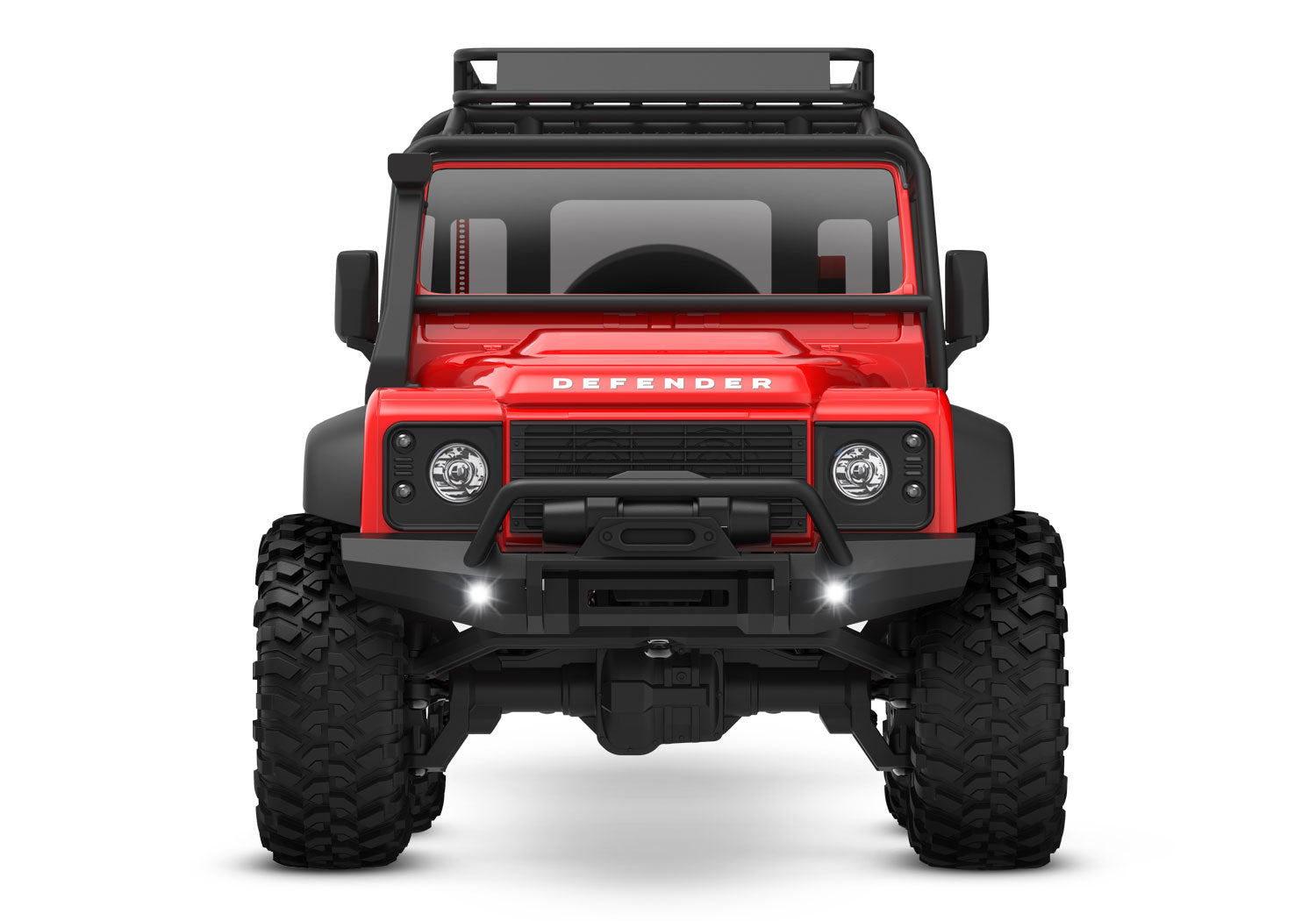

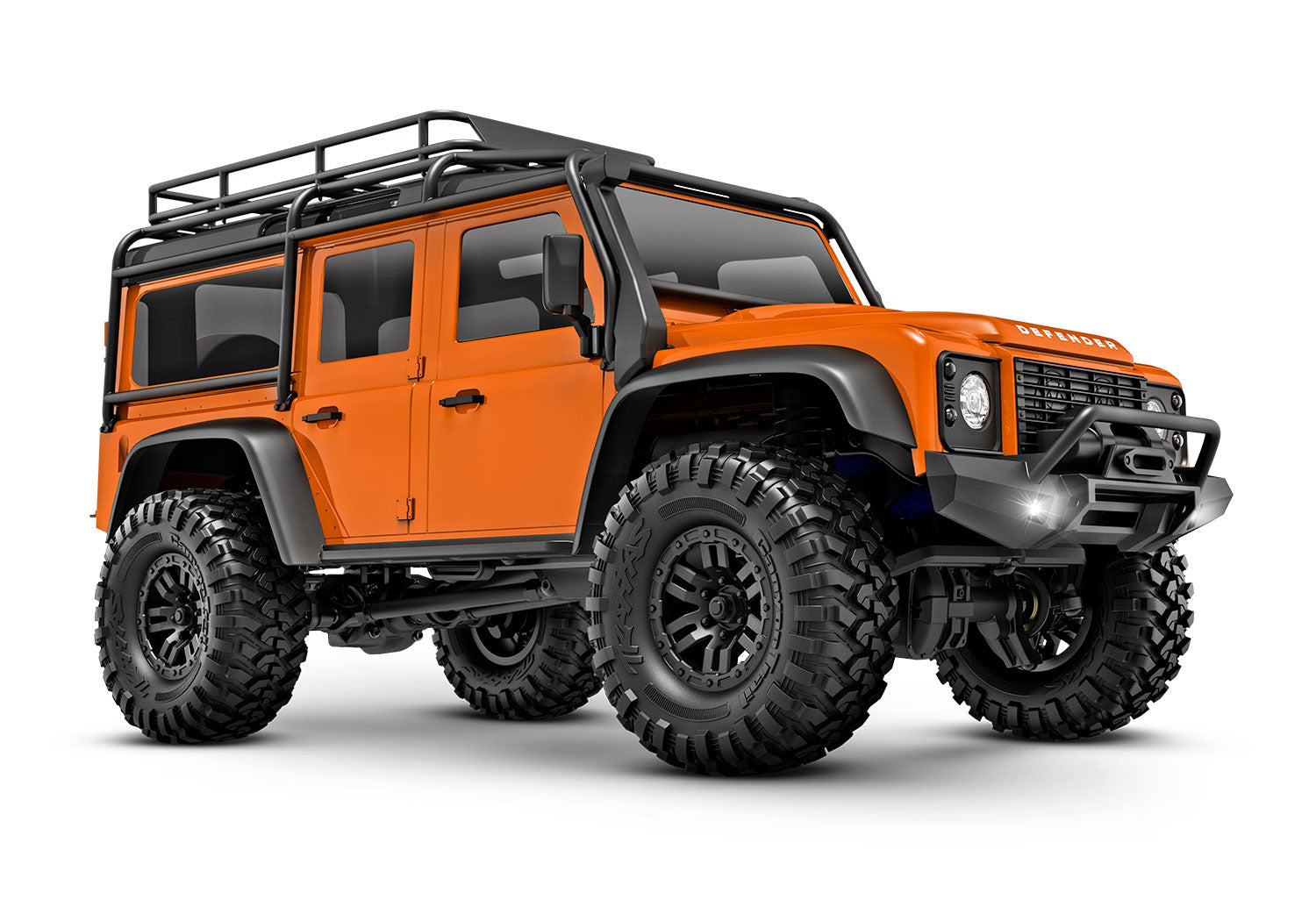

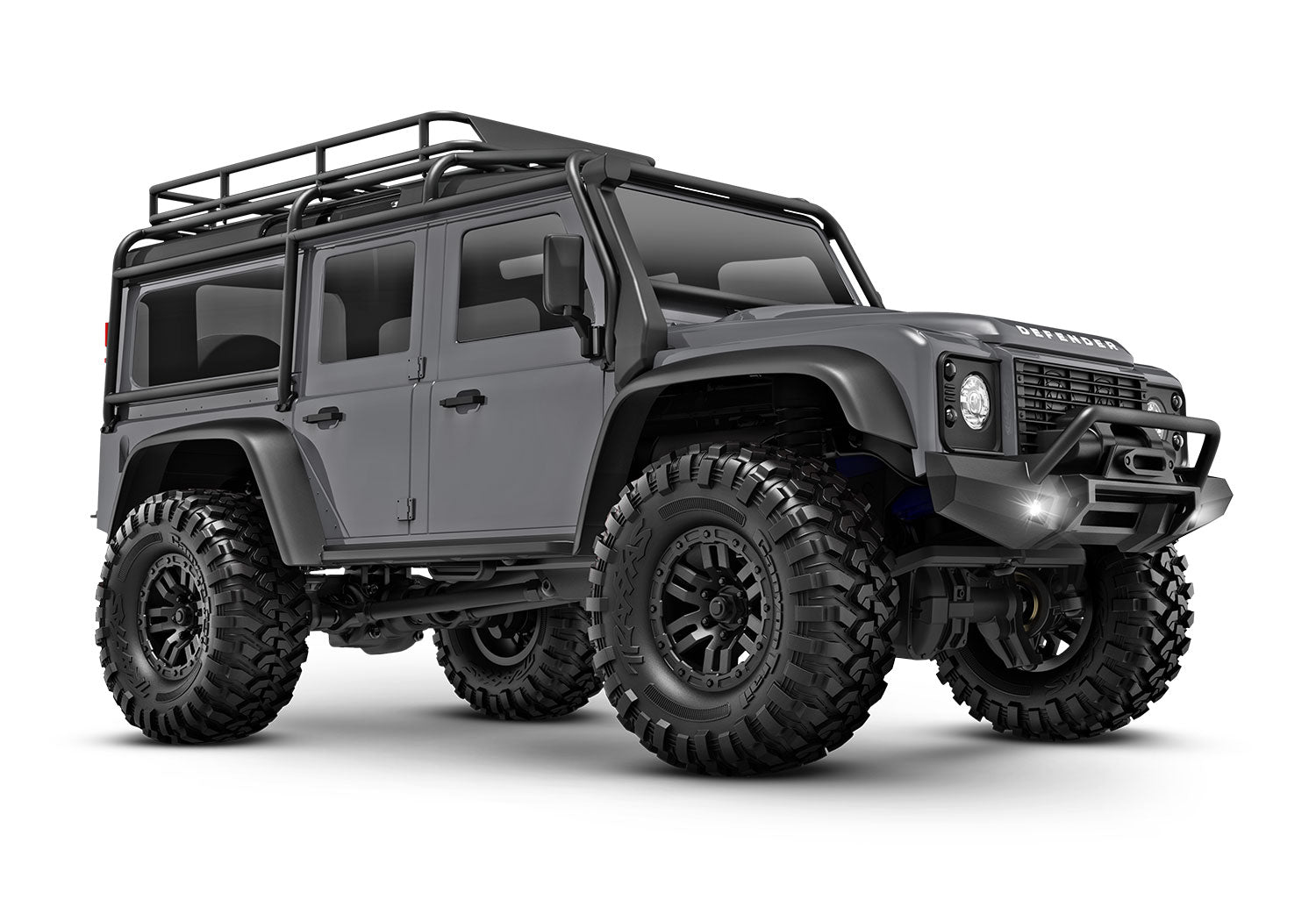

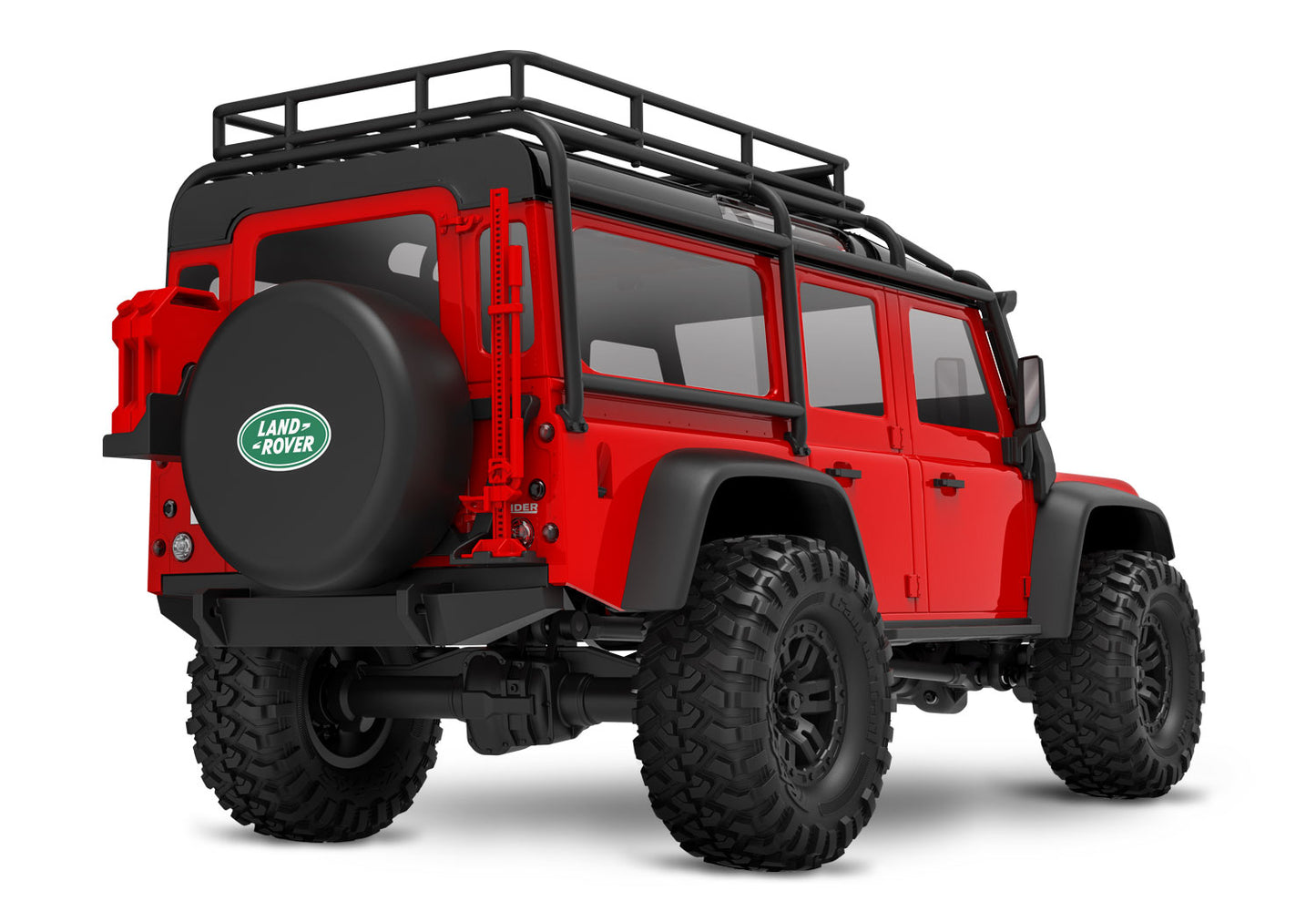

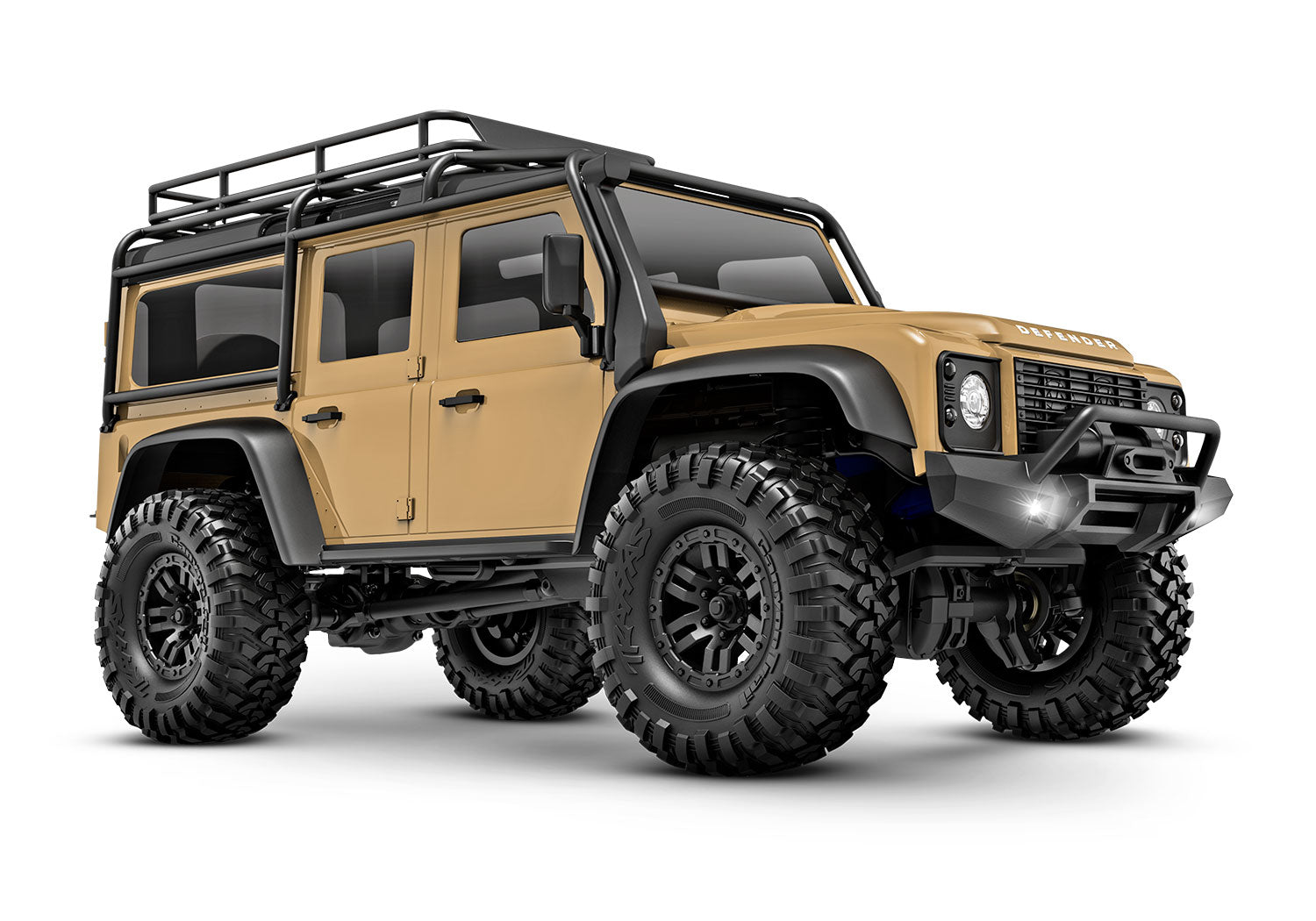

TRX-4M Defender
-
Officially Licensed Land Rover® Defender® Clipless Body
- Highly-detailed ABS hard body
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, & wipers
- LED bumper lights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed ABS hard body
-
ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two stage low voltage protection (LVD)
- Motor overload protection
-
TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
-
Titan® 180 87-Turn Brushed Motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
-

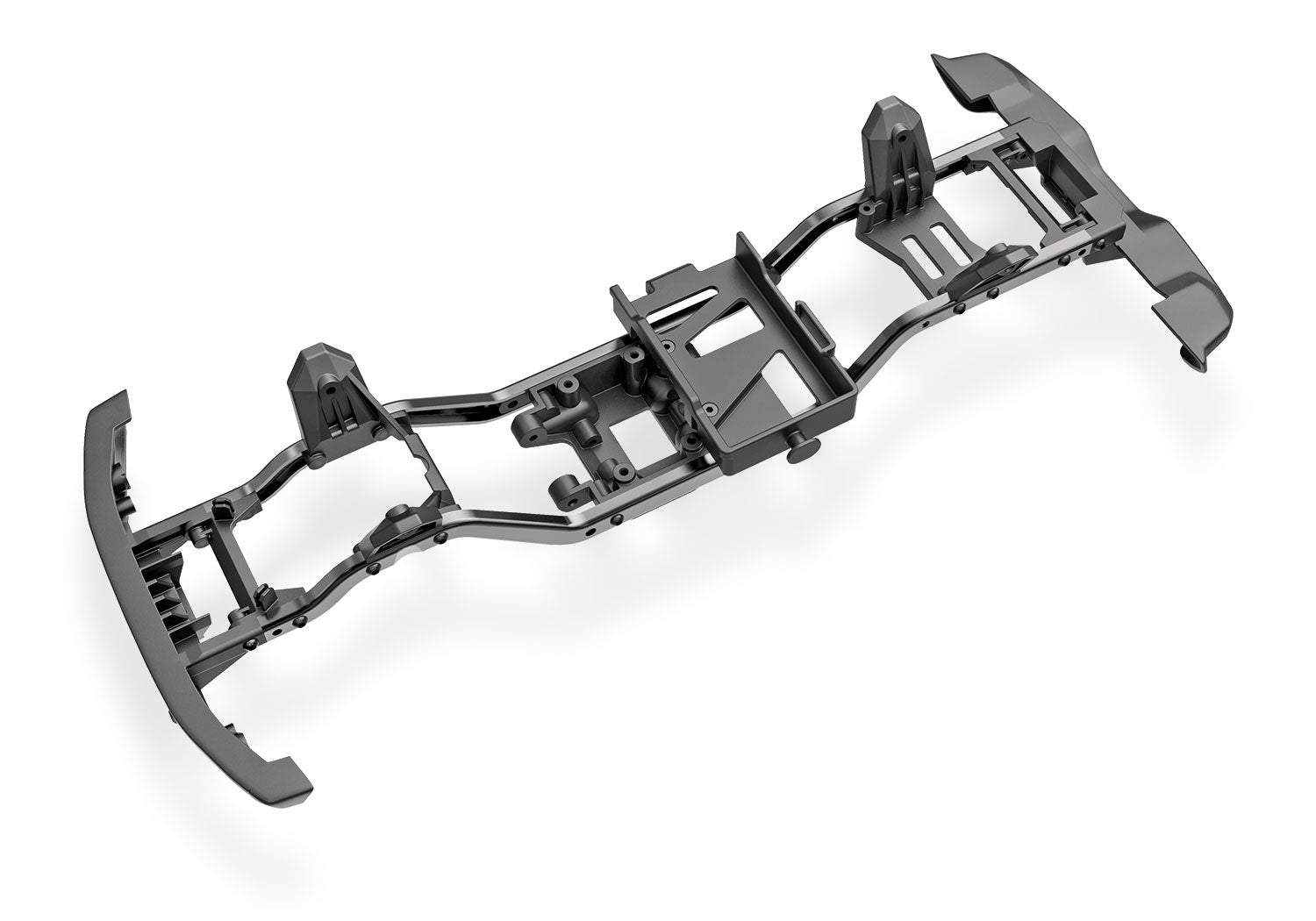

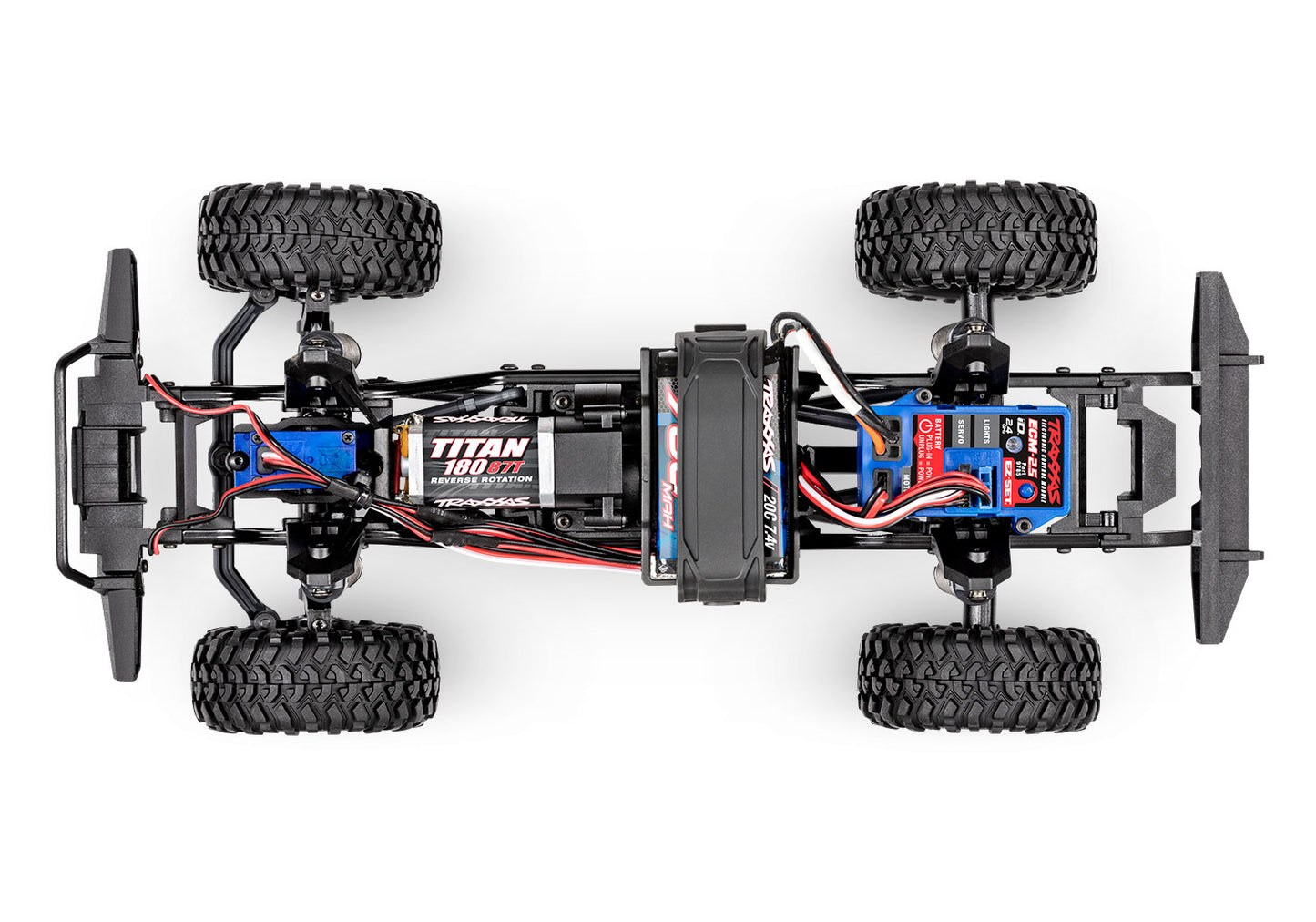

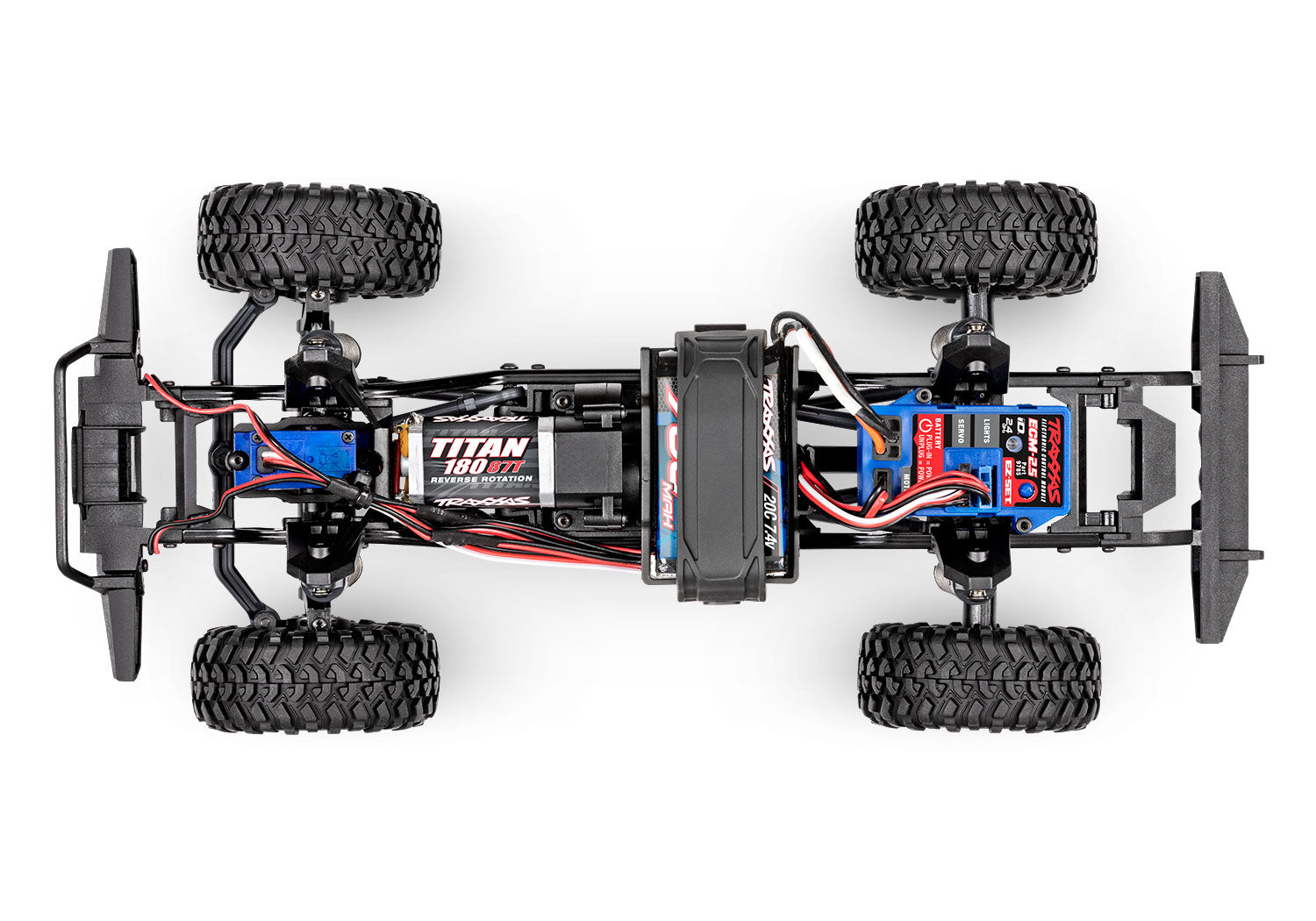

Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
-

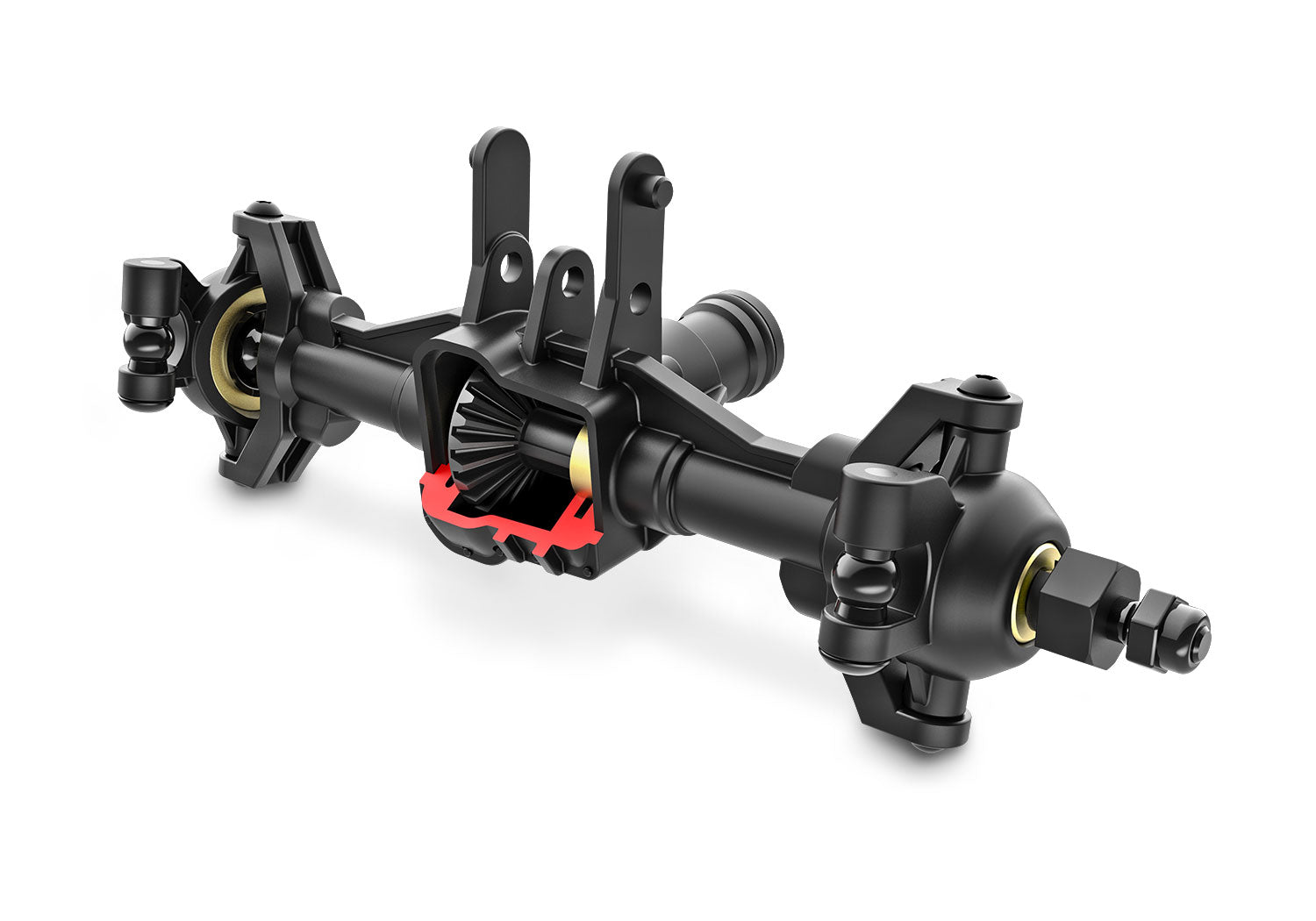

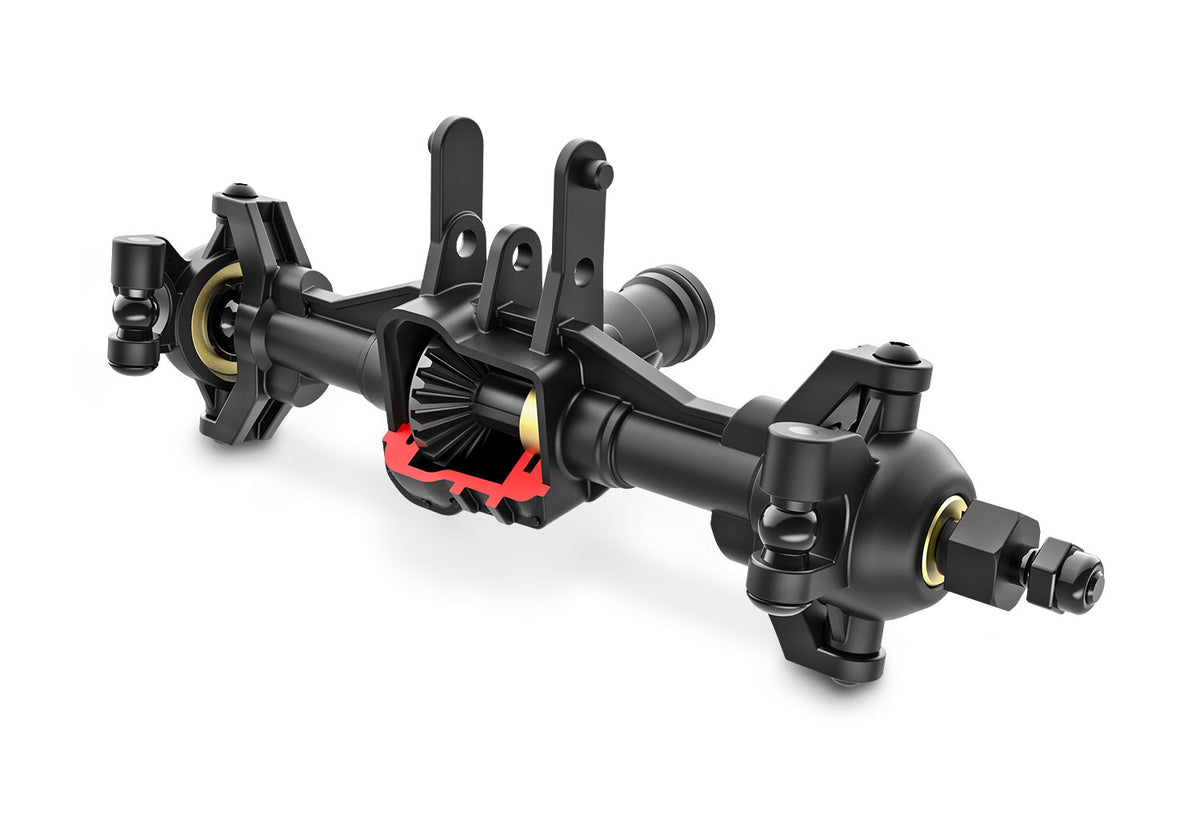

Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
-
Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
-
Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
-

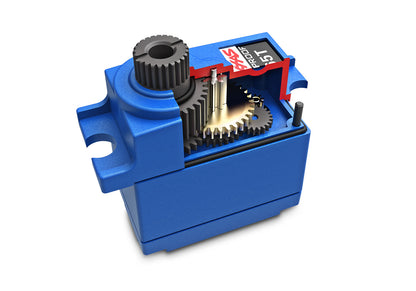

Steering

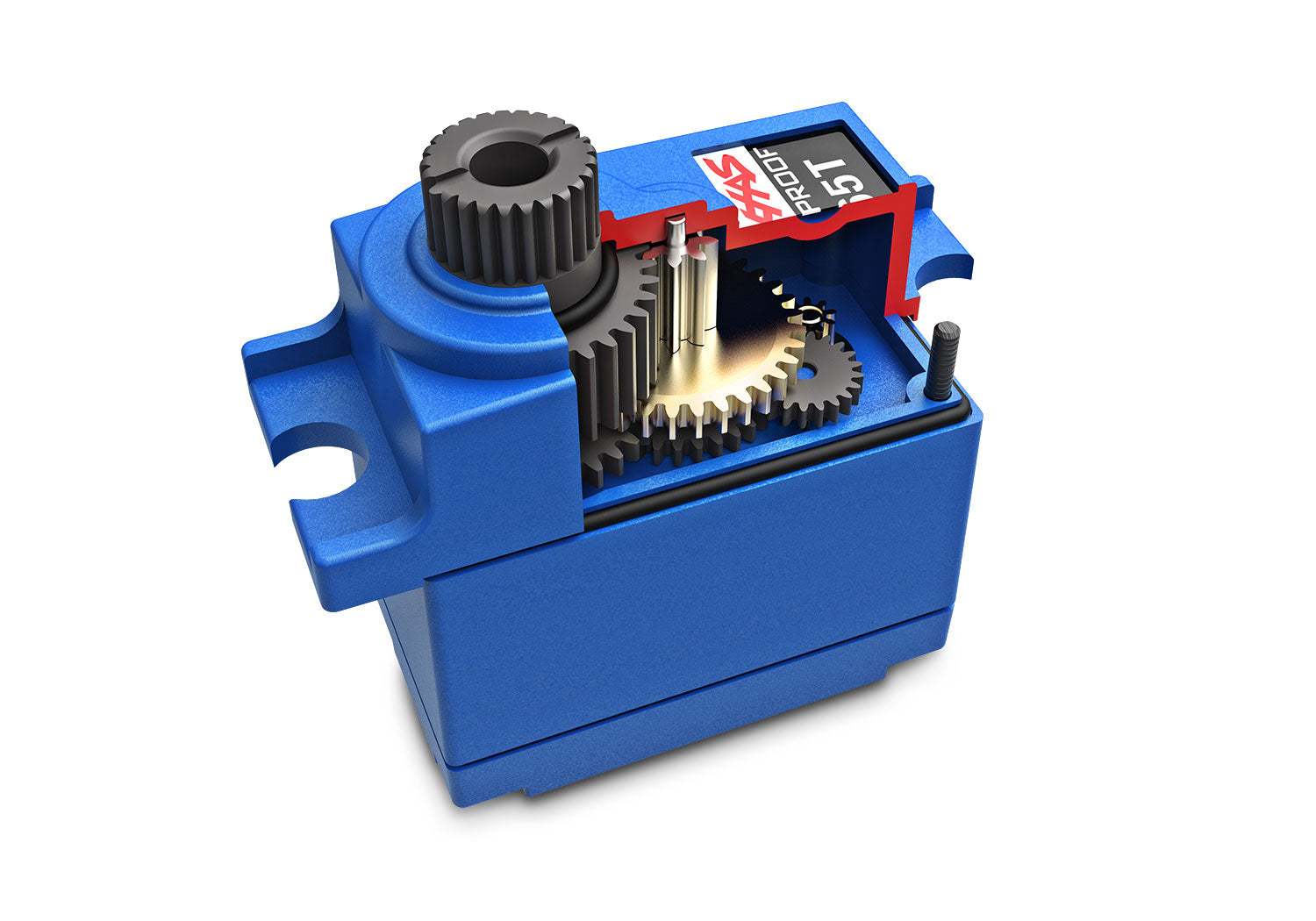

- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy-duty 2065T steering servo
-
Suspension
- Triangulated 4 link front and rear
- Heavy-duty rod ends
-
Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
-
Wheels and Tires
- Highly-detailed 1″ wheels
- 7 mm hex
- Canyon AT tires
- Trail-tuned rubber compound
- Highly-detailed 1″ wheels
-
Battery and Charger Included

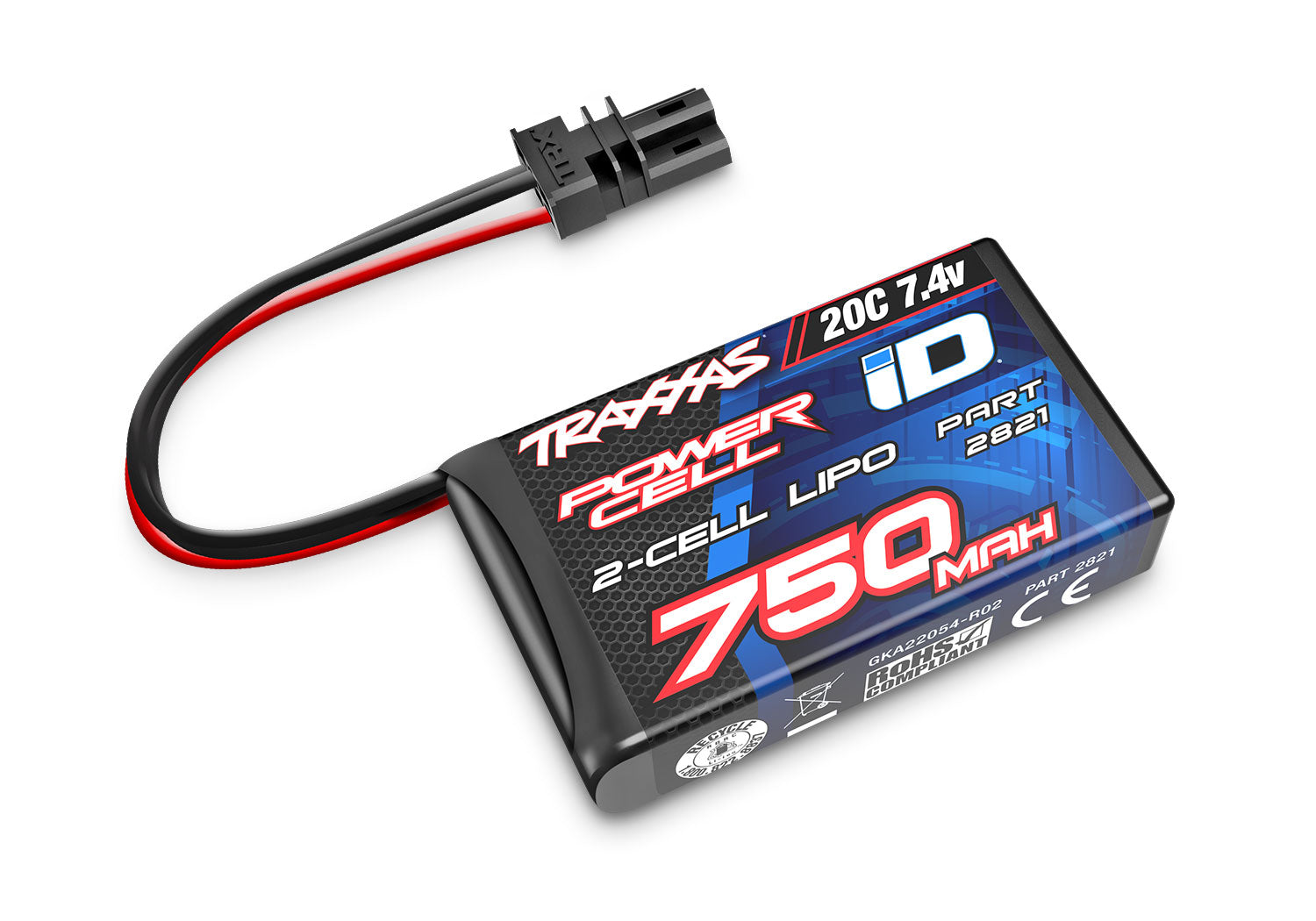

- High-capacity 2-cell LiPo battery with iD®
- 7.4 volts
- 750 mAh for over an hour of run time
- 2-amp USB-powered charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery with iD®
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
Model Specs


Model Name: | TRX-4M Land Rover Defender |
---|---|
Model Type: | Trail / Crawler |
Model Skill Level: | 1 |
Scale: | 1/18 |
Weight: | 1.06 pounds (483 g) |
Length: | 11 inches (279 mm) |
Width: | 4.9 inches (124 mm) |
Front Track: | 4.9 inches (124 mm) |
Rear Track: | 4.9 inches (124 mm) |
Height: | 5.3 inches (135 mm) |
---|---|
Wheelbase: | 6.1 inches (155 mm) |
Center Ground Clearance: | 1.12 inches (29 mm) |
Drivetrain: | Shaft-driven 4WD |
Transmission: | Single speed direct drive |
Differential Type: | Locked spool |
Gear Ratio (Internal): | 11.38 |
Servo(s): | 2065T |
Battery Compartment Specs: | 51 mm X 31 mm |
Motor Specs
Motor Name: | Titan 180 |
---|---|
Motor Type: | 87-turn brushed motor |
Motor Weight: | 1.16 ounces (33 g) |
Motor Length: | 1.66 inches (42 mm) |
Motor Diameter: | .81 inches (21 mm) |
ESC Specs
ESC Name: | ECM 2.5™ |
---|---|
ESC Type: | Brushed |
ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
ESC Weight: | .92 ounces ( 26 g) |
Traxxas TRX-4M 1/18 Crawler with Land Rover Defender Body
The Traxxas TRX-4M 1/18 Electric Rock Crawler with Land Rover Defender Body is an adventure-driven micro crawler that is ready to hit the trails! The highly detailed ABS bodyshell features clipless mounting to the rigid C-channel frame. This frame is supported by four oil-filled GTM shocks to add control and keep the body from bouncing around. Scale straight axles are connected to the frame using full 4-link suspension. Adding to the performance, this truck features up to 45° steering angle to help tackle the trail ahead. Create your own huge adventure with the 1/18 Traxxas TRX-4M Rock Crawler!
Features:
- Highly detailed licensed body shell made of durable ABS
- Triangulated 4-link front and rear suspension
- Oil-filled GTM shocks
- Wheels and tires mounted to 7mm hex
- Full-time shaft-driven 4-wheel drive
- Low-CG Battery Tray
- Superior 45° steering angle
- Direct steering (no servo saver)
- Powerful Titan 87-turn brushed motor
- ECM-2.5 Electronic Control Module incorporates ESC, receiver, and LED controller
- Fully waterproof for all-weather fun
- Includes transmitter, battery and charger for out of the box fun
Specifications:
Scale: 1/18
Length: 11 inches (279mm)
Wheelbase: 6.10 inches (155mm)
Track Width: 4.9 inches (124mm)
Height: 5.3 inches (135mm)
Ground Clearance: 1.12 inches (29mm)
Weight (w/o battery): 1.06lbs (483g)
Approach Angle: 52°
Breakover Angle: 45°
Departure Angle: 41°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Wheels: 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires: 2.2 x 1.0 inches (57 x 25.4mm)
Motor: Brushed 180-Size 87T
Differential Type: Fully Locked; 2:1 Axle Ratio
Battery Tray (LxW): 50.5x31mm
Includes:
- (1) Traxxas TRX-4M Micro Rock Crawler with:
- (1) Officially Licensed ABS Hard Body
- (1) Titan 180 87-turn motor
- (1) ECM-2.5 Electronic Control Module
- (1) TQ transmitter
- (1) 7.4 volt 750mAh 2-cell LiPo battery
- (1) 2-amp USB fast charger with iD
- Tools for maintenance
Needed to Complete:
- (4) AA Alkaline Batteries
Share















Accessories for this product...
-
Aluminum Axle Cover (2) (TRX-4M)
Regular price From $29.95 USDRegular priceUnit price / per -

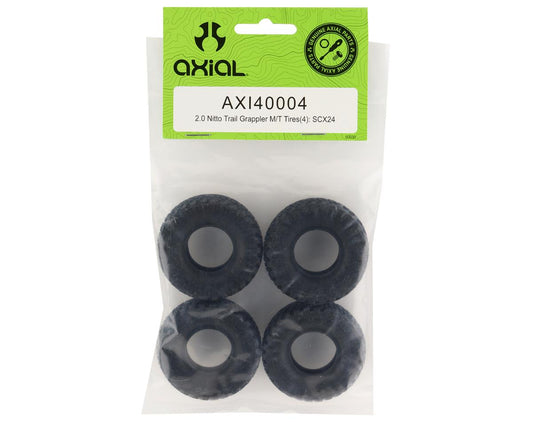

SCX24 1.0" Nitto Trail Grappler M/T V2 Tires (4)
Regular price $15.99 USDRegular priceUnit price / per -

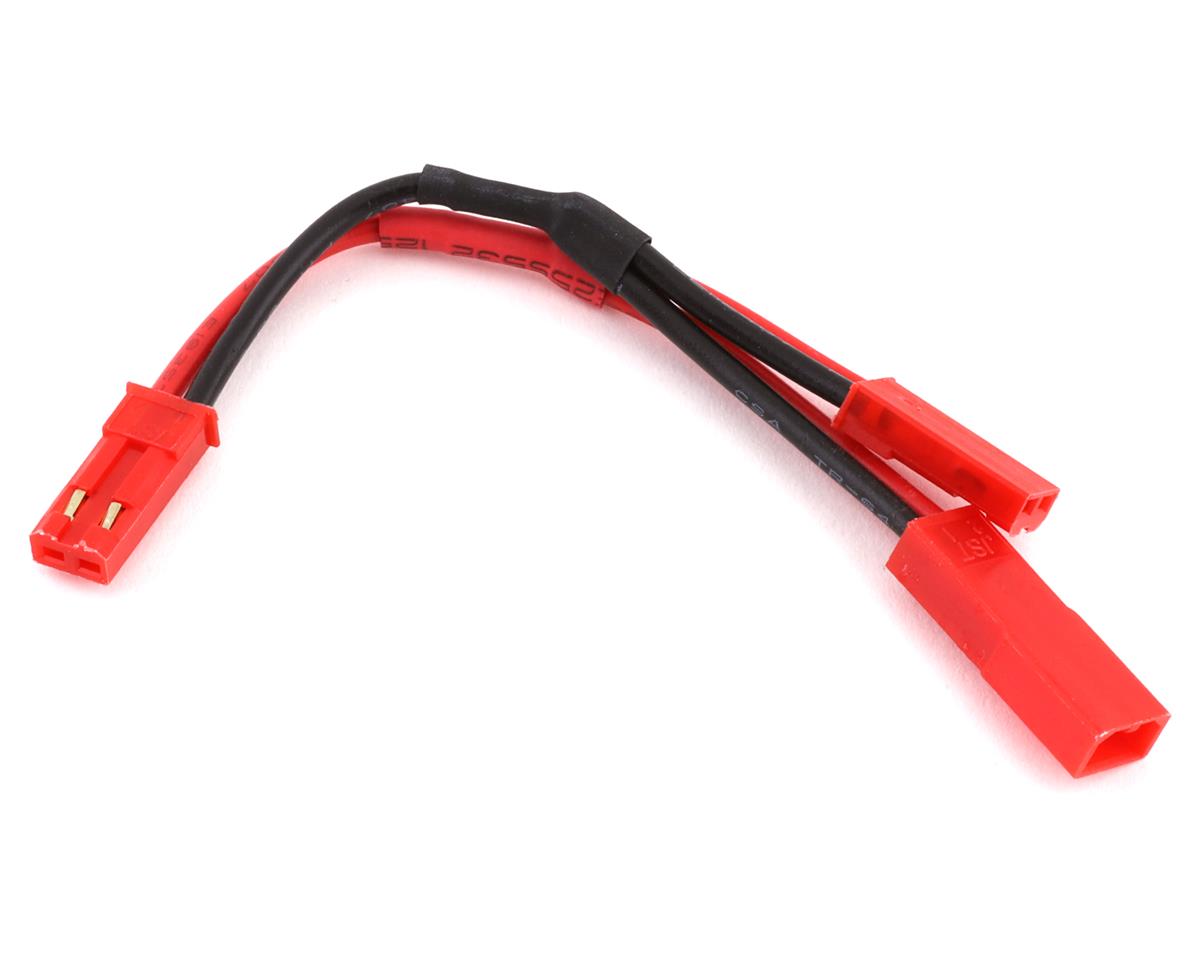

BEC Y-Harness TRX-4
Regular price $4.00 USDRegular priceUnit price / per -
TRX-4M Stainless Steel Complete Hardware Kit
Regular price $29.95 USDRegular priceUnit price / perSold out -
TRX-4M Complete Hardware Kit
Regular price $24.00 USDRegular priceUnit price / per -
Sold out

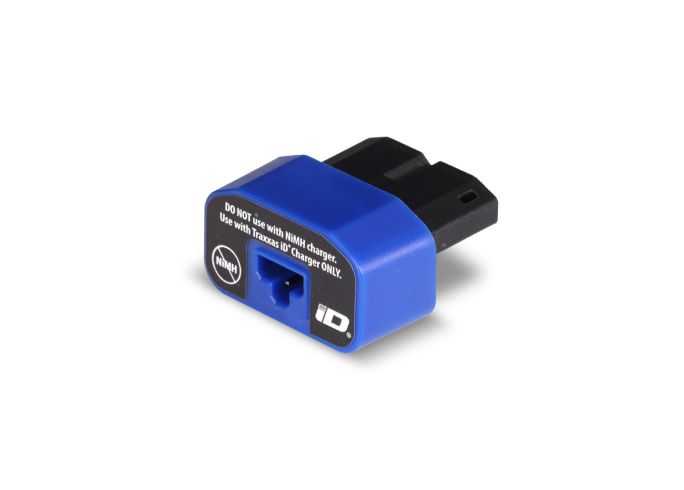

ID CHRGR PORT FOR TRX-4M BATT
Regular price $10.00 USDRegular priceUnit price / perSold out -
SUSP LINK SET HIGH LIFT COMPLETE ASSM TRX-4M
Regular price $19.95 USDRegular priceUnit price / per -
Sold out
LED LIGHT BAR KIT TRX-4M
Regular price $29.95 USDRegular priceUnit price / perSold out -

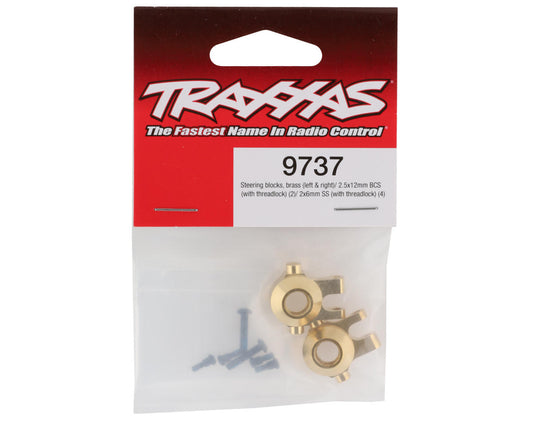

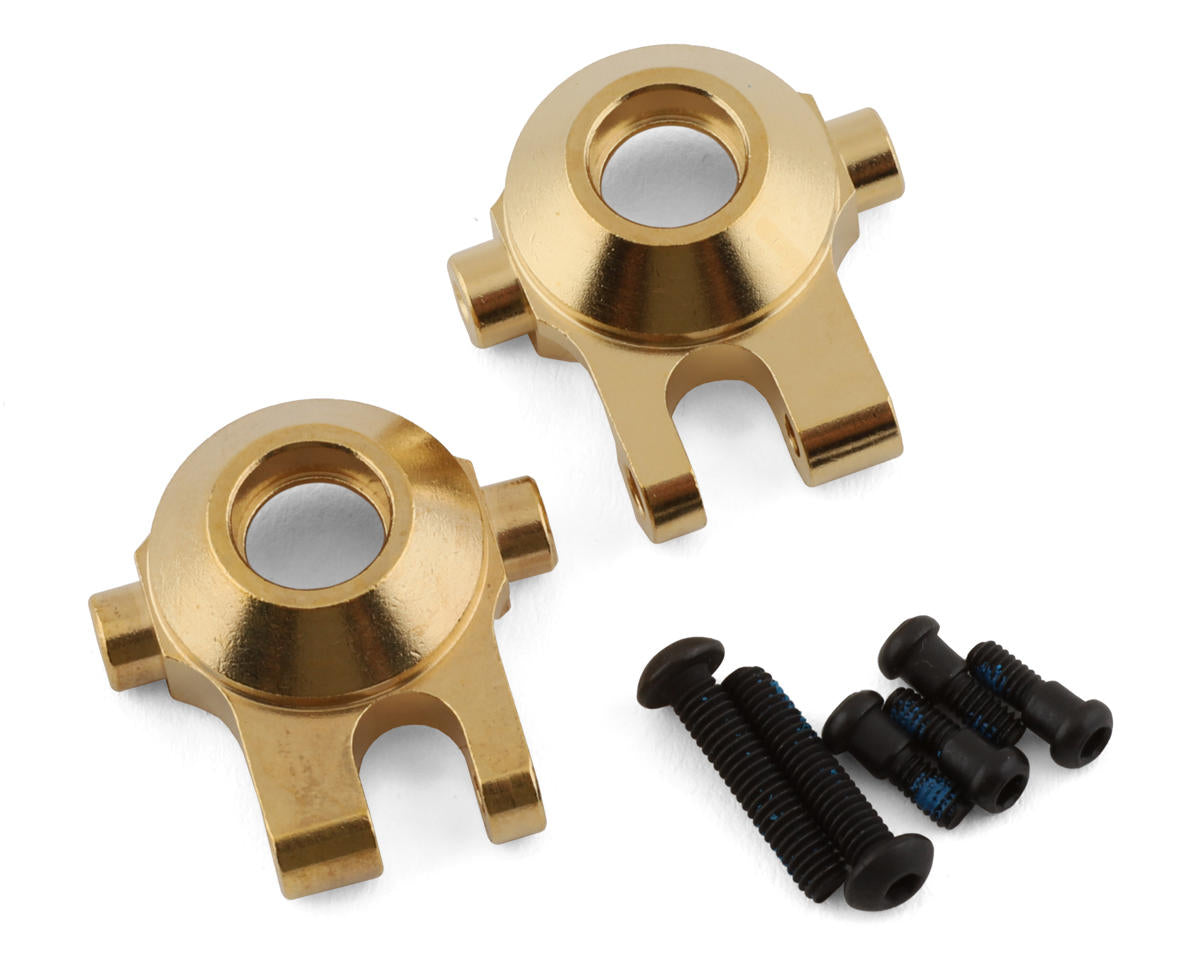

TRX-4M Brass Steering Blocks (2) (7g)
Regular price From $29.99 USDRegular priceUnit price / per -

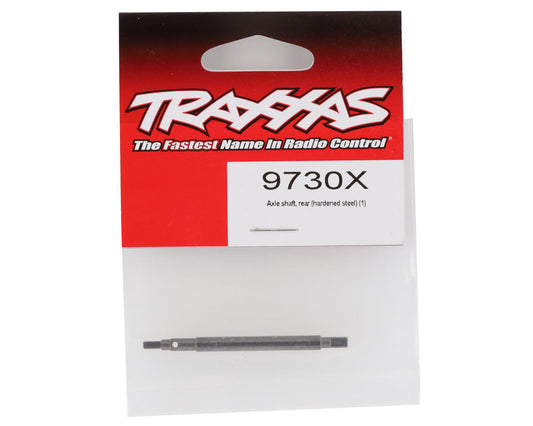

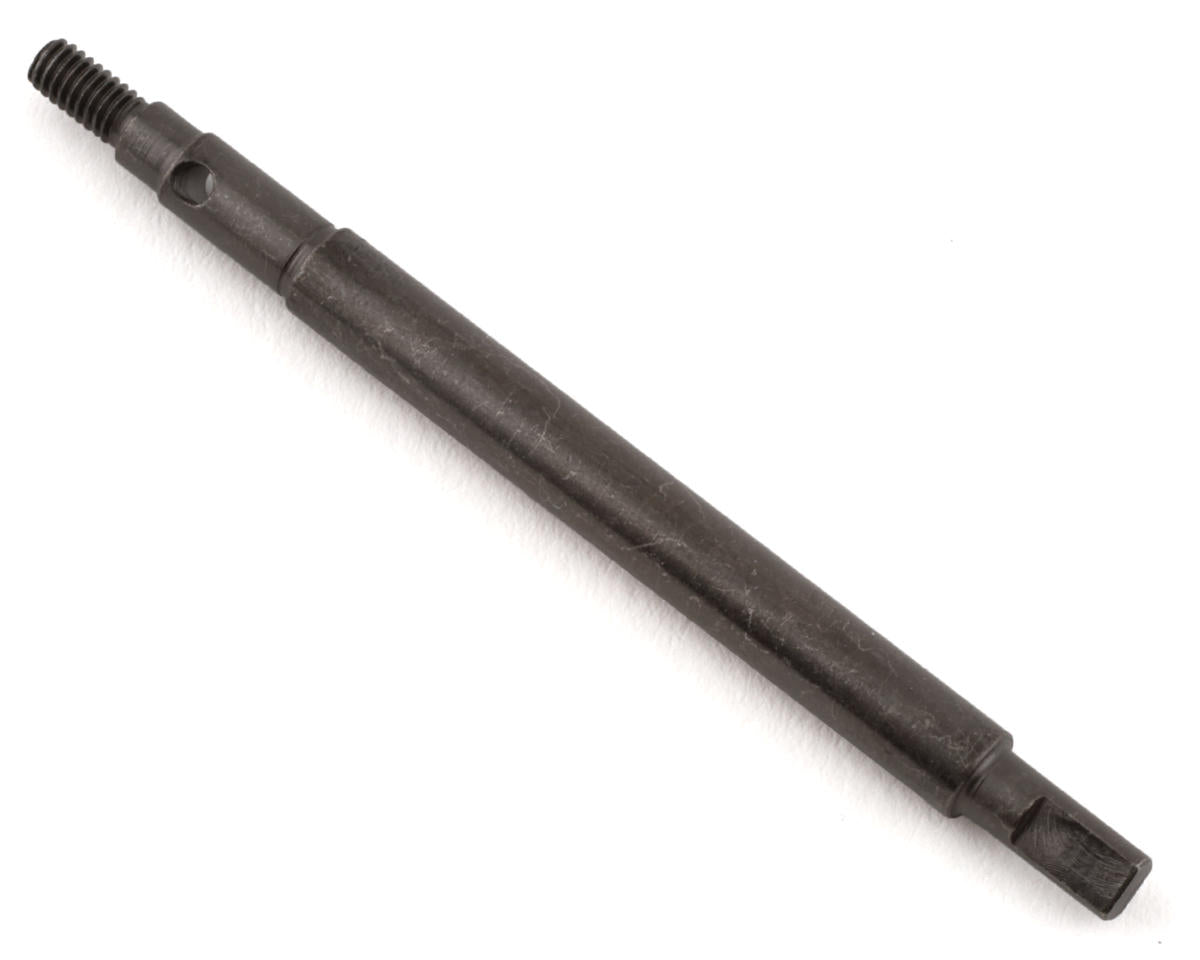

TRX-4M Rear Heavy Duty Steel Axle Shaft (1)
Regular price $6.00 USDRegular priceUnit price / per -

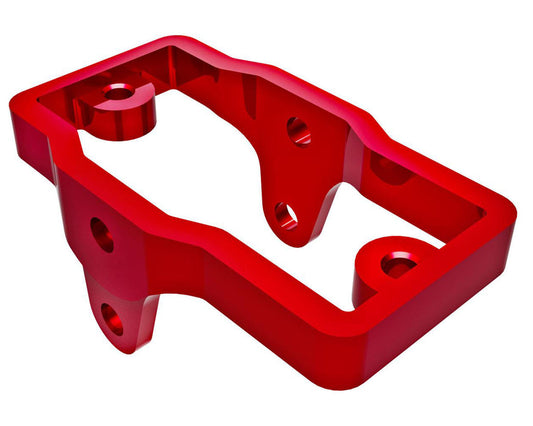

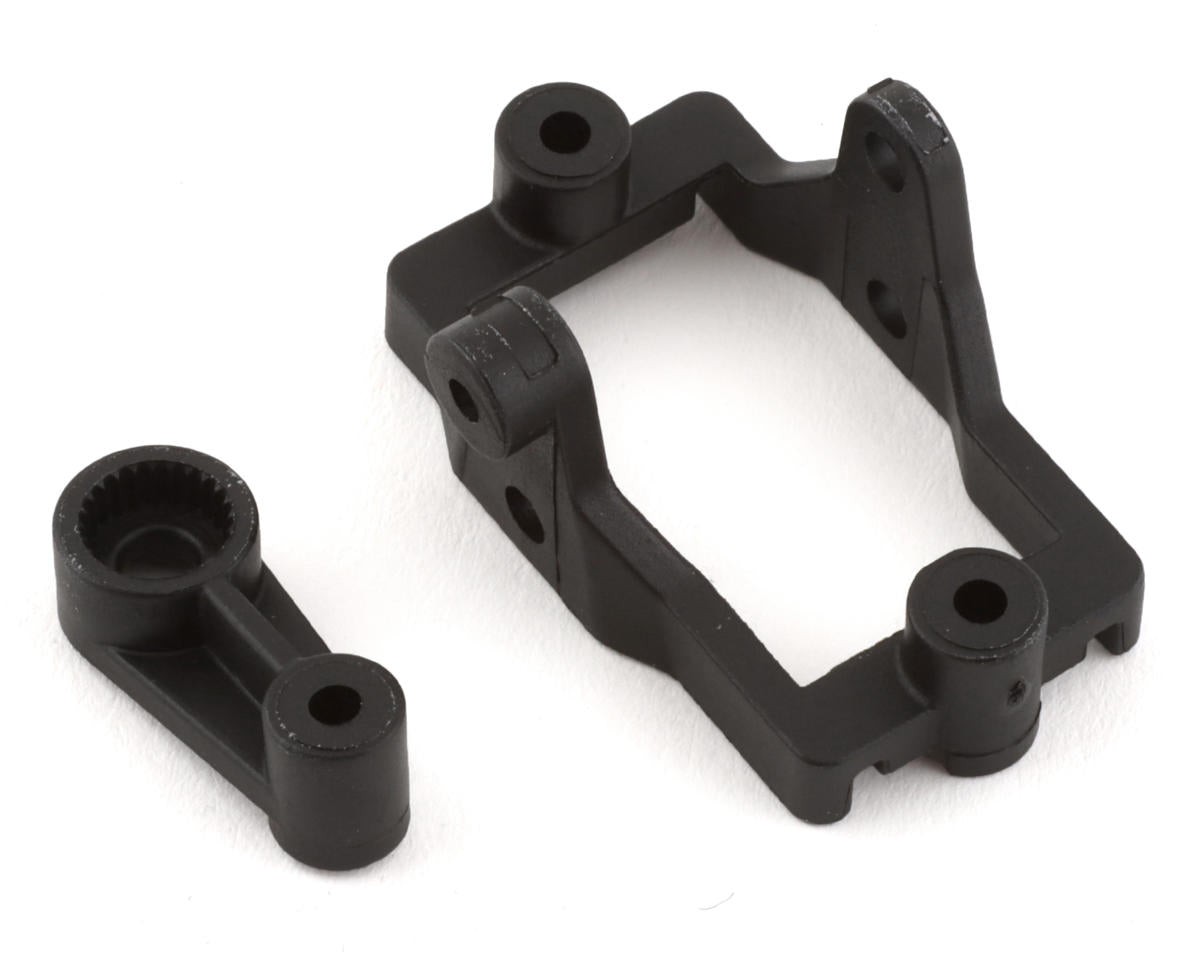

TRX-4M Servo Mount Aluminum and basic
Regular price From $3.00 USDRegular priceUnit price / per -
TRX-4M Aluminum Servo Mount (Black)
Regular price $14.99 USDRegular priceUnit price / per -

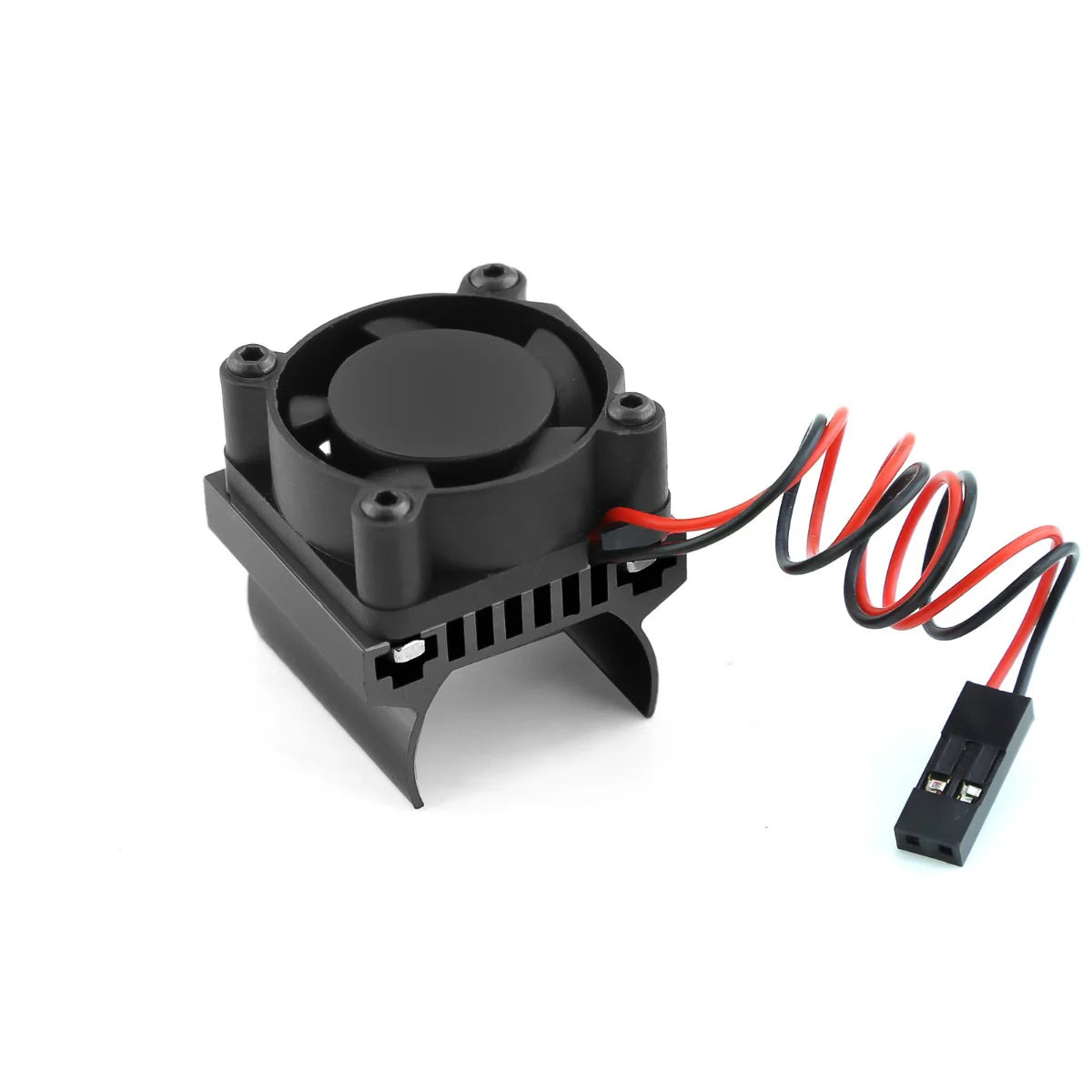

Powerhobby Aluminum Motor Cooling Fan Black FOR Traxxas TRX-4M
Regular price $7.99 USDRegular priceUnit price / per
Upgrades for this product...
-

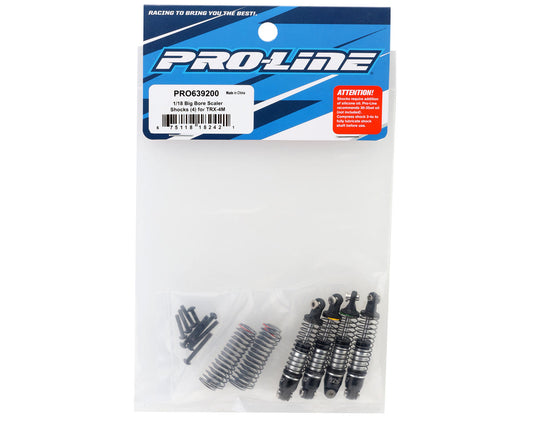

Pro-Line TRX-4M Big Bore Scaler Shocks (4)
Regular price $49.99 USDRegular priceUnit price / per -
TRX-4M Land Rover Defender Aluminum Bumpers
Regular price $54.95 USDRegular priceUnit price / per -

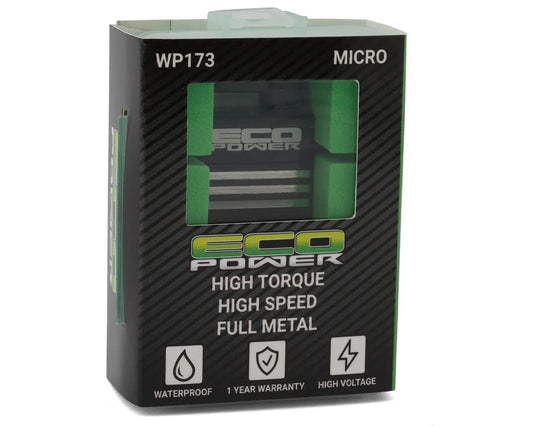

WP173 Aluminum Digital Micro Servo (HV) (Waterproof)
