PHBPHF4040BLACK
40mm Tornado High Speed Aluminum RC Cooling Fan Black
40mm Tornado High Speed Aluminum RC Cooling Fan Black

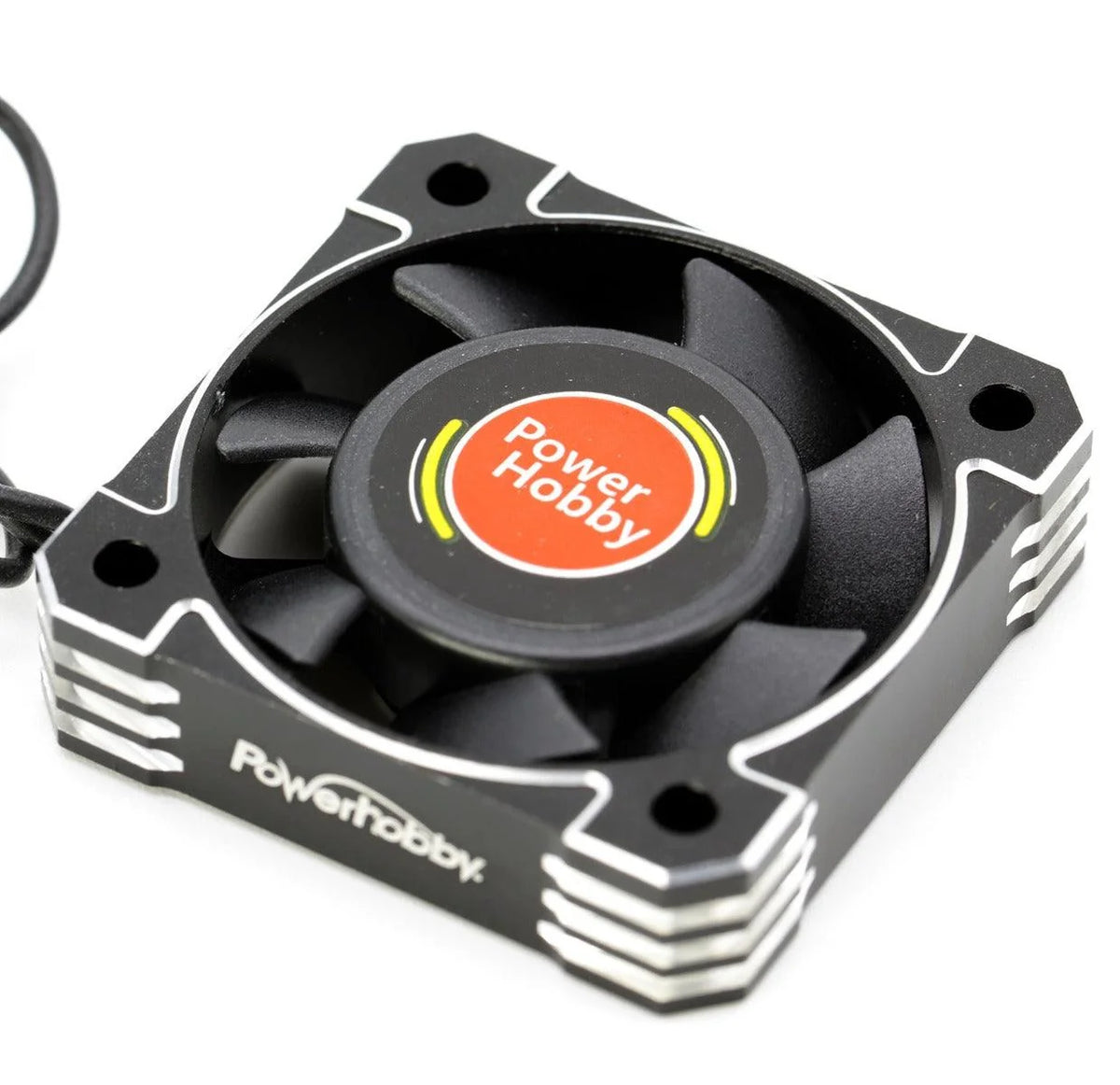

Powerhobby 40mm Aluminum Tornado High Speed HV Cooling Fan
Description
The PowerHobby 40mm Tornado High-Speed Cooling Fan is designed to provide increased airflow for demanding RC motor and ESC cooling applications.
Its full T6 aluminum case helps direct airflow through the fan while protecting the fan blades from accidental contact. When mounted against a compatible motor mount or ESC heatsink, the aluminum housing also provides additional surface area to help dissipate heat.
The compact 40 × 40 × 10mm design is suitable for a wide range of RC vehicles, including compatible 1/12, 1/10, 1/8, and 1/5-scale applications.
Features
- High-speed 40mm RC cooling fan
- Full T6 aluminum heatsink-style housing
- Aluminum case helps direct airflow through the fan
- Housing helps protect the fan blades
- Aluminum construction provides additional heat-dissipation surface
- Approximately 16,000 RPM at 8.5V
- Operating-voltage range of 5V to 8.5V
- Compact 40 × 40 × 10mm dimensions
- Suitable for compatible motor and ESC cooling applications
- Designed for compatible 1/12 through 1/5-scale RC vehicles
- Mounting hardware included
- Black finish
Specifications
- SKU: PHBPHF4040BLACK
- Barcode: Does Not Apply
- Product Type: High-Speed RC Cooling Fan
- Fan Dimensions: 40 × 40 × 10mm
- Fan Speed: Approximately 16,000 RPM at 8.5V
- Operating Voltage: 5V–8.5V
- Current Draw: Approximately 0.65A at 7.4V
- Wire Length: Approximately 180mm
- Weight: Approximately 18g
- Housing Material: T6 Aluminum
- Color: Black
Includes
- 1 PowerHobby 40mm Tornado Aluminum Cooling Fan
- Mounting Hardware
Fits
Universal RC motor and ESC cooling applications with sufficient installation clearance, including compatible:
- 1/12-scale RC vehicles
- 1/10-scale RC vehicles
- 1/8-scale RC vehicles
- 1/7-scale RC vehicles
- 1/6-scale RC vehicles
- 1/5-scale RC vehicles
- On-road cars
- Off-road buggies
- Short-course trucks
- Monster trucks
- Truggies
- Speed-run vehicles
- Custom high-performance RC builds
Verify the available mounting space, hole spacing, voltage output, current capacity, connector compatibility, wire routing, and clearance before purchasing.
Installation Note
Install the fan on a compatible motor mount, ESC heatsink, or cooling-fan bracket. Make sure the mounting hardware is secure and that the fan cannot move during operation.
Keep the fan blades, housing, and wiring away from pinion gears, spur gears, motor shafts, driveshafts, suspension components, and other moving parts.
Power the fan from a compatible regulated source operating between 5V and 8.5V. Make sure the power source can provide at least 0.65A of current. Confirm connector polarity before applying power and do not exceed the listed 8.5V operating voltage.
