TRAXXAS

Mini XRT VXL Pre-Order Release Date May 9th

$369.95 USD

Sale Sold out

Shipping calculated at checkout.

You might also need...

$39.95 2S LIPO 3500MAH 7.4V 25C (addon details...)

$39.95 3S LIPO 2300MAH 11.1V 30C (addon details...)

Color Green Blue Red Orange

Product variants

SKU:108076-1-ORNG

Quantity

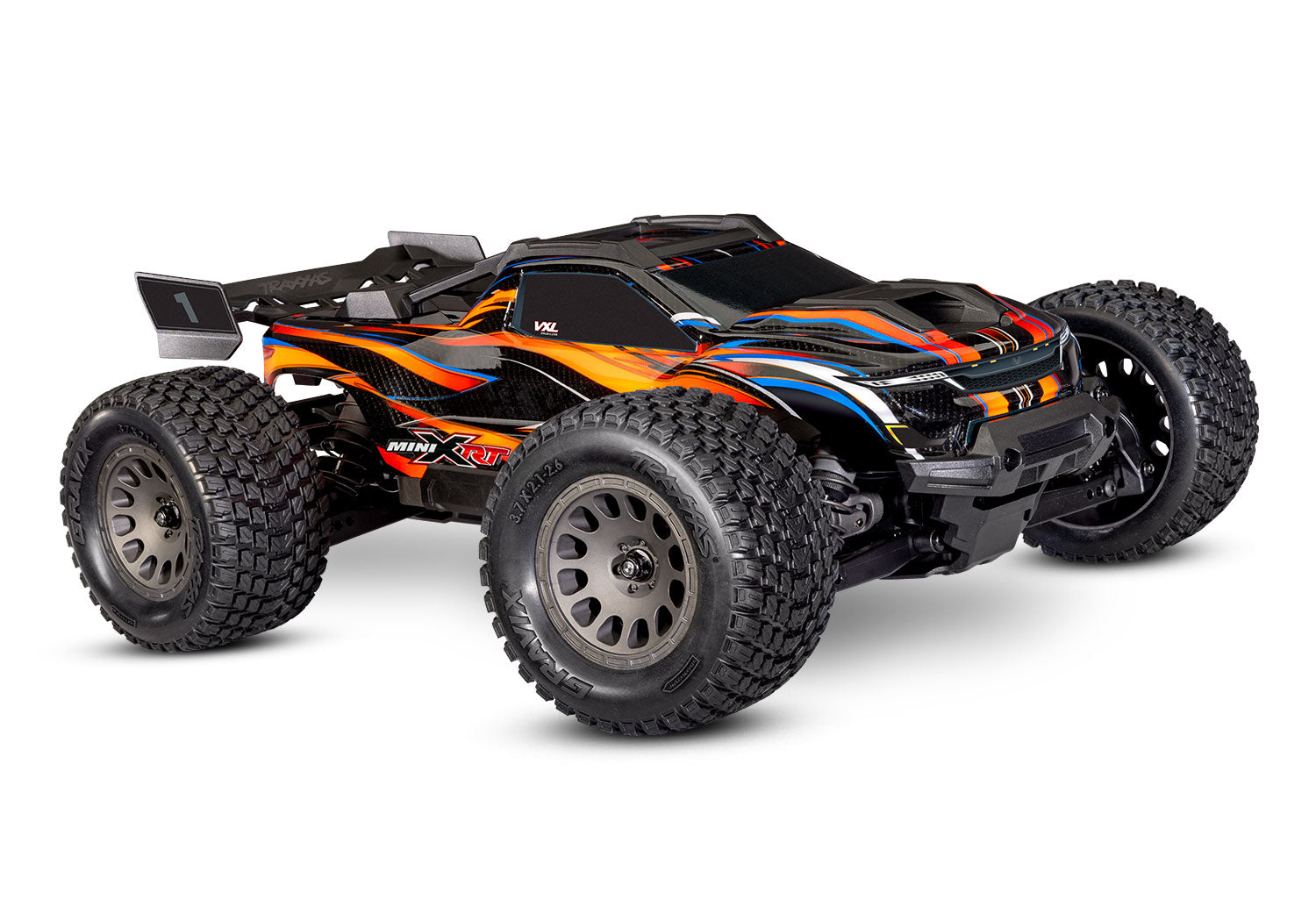

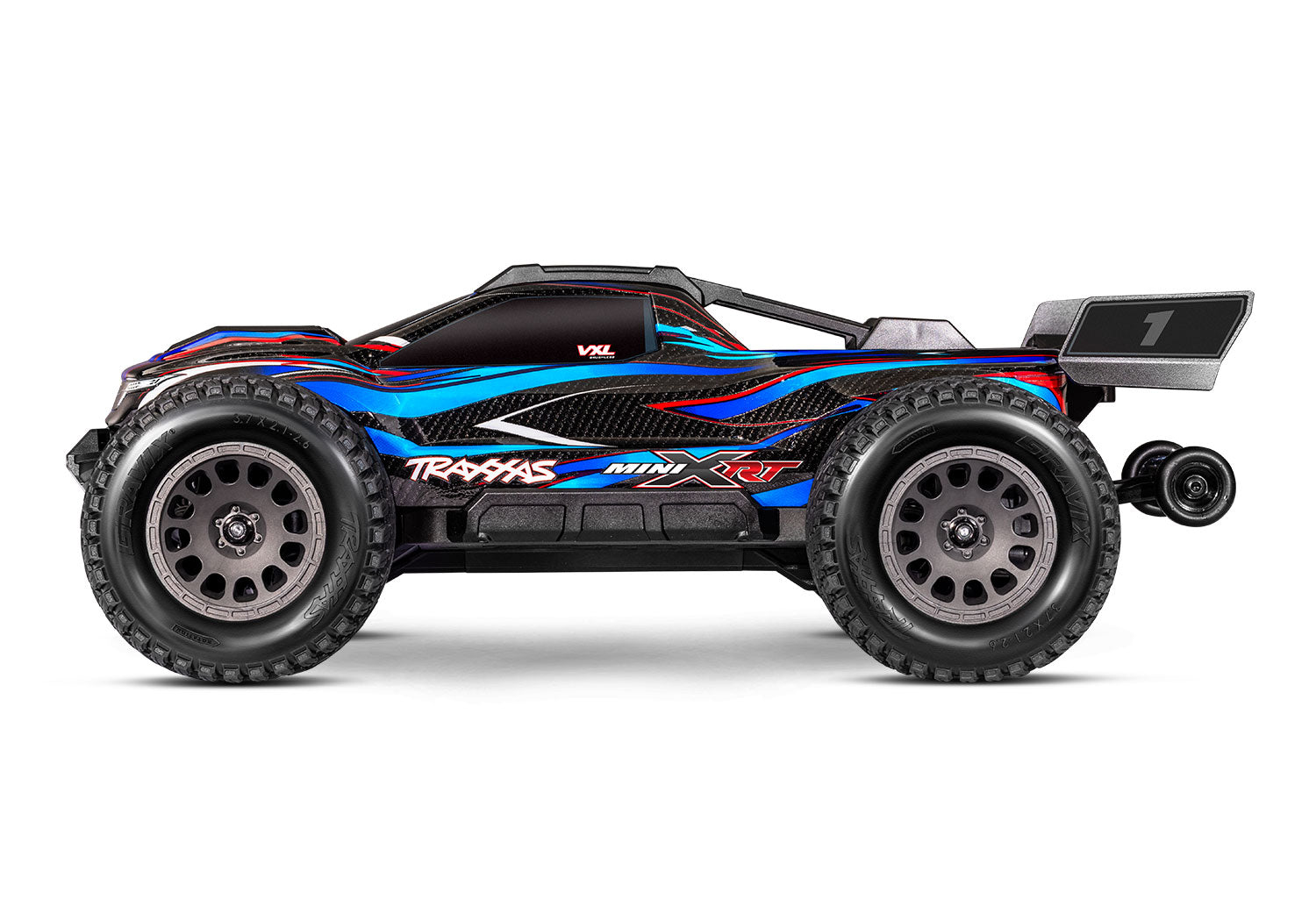

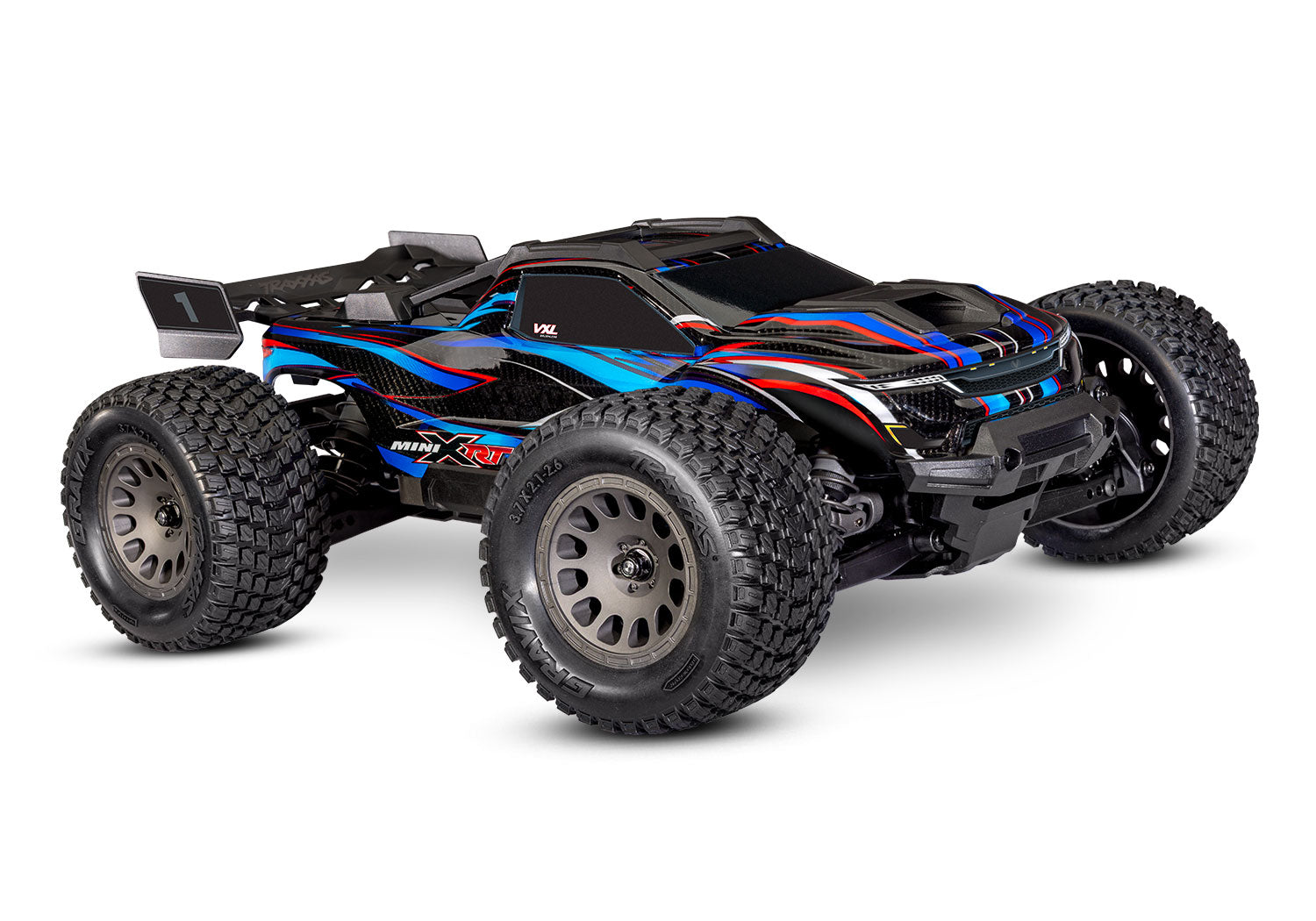

Mini XRT VXL Pre-Order Release Date May 9th - In Store

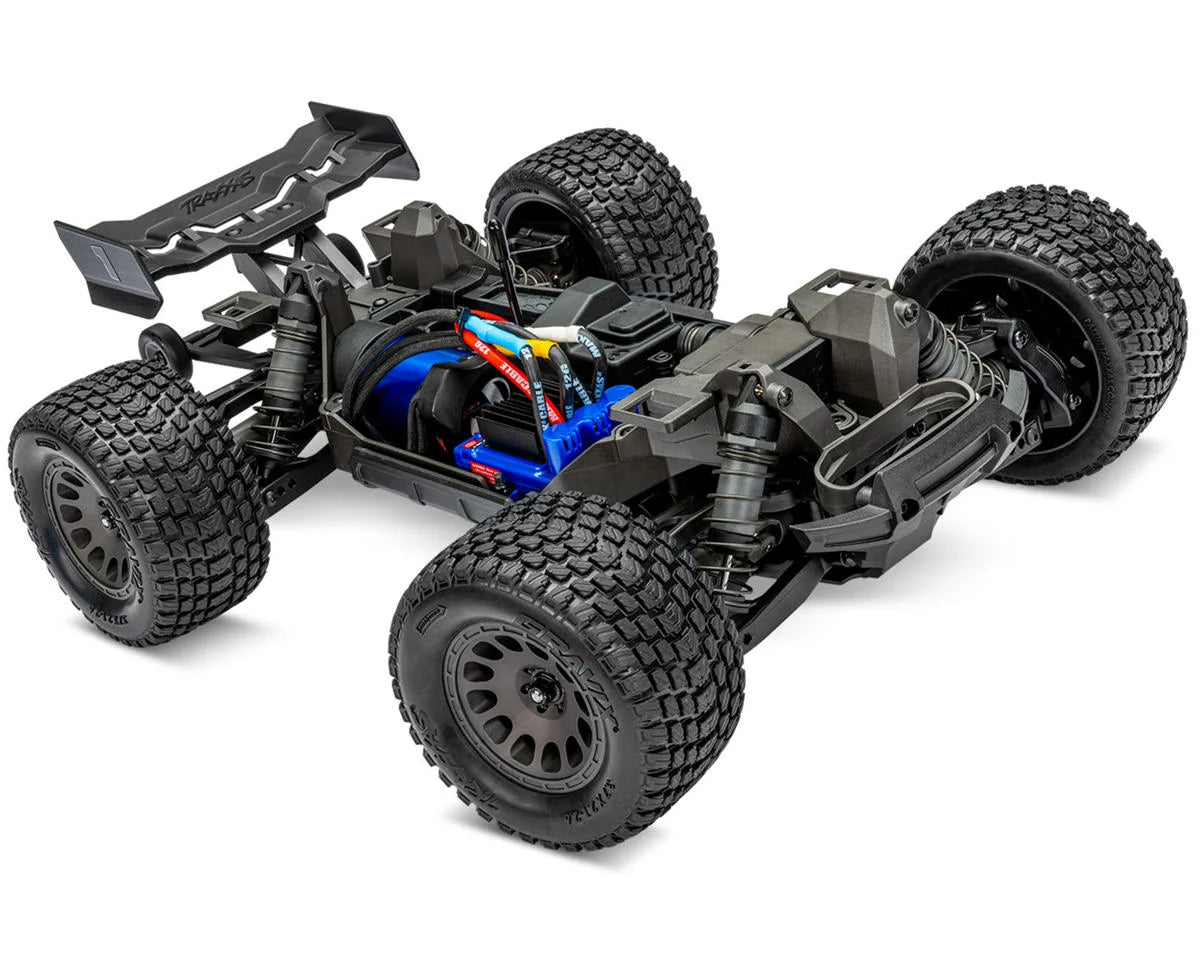

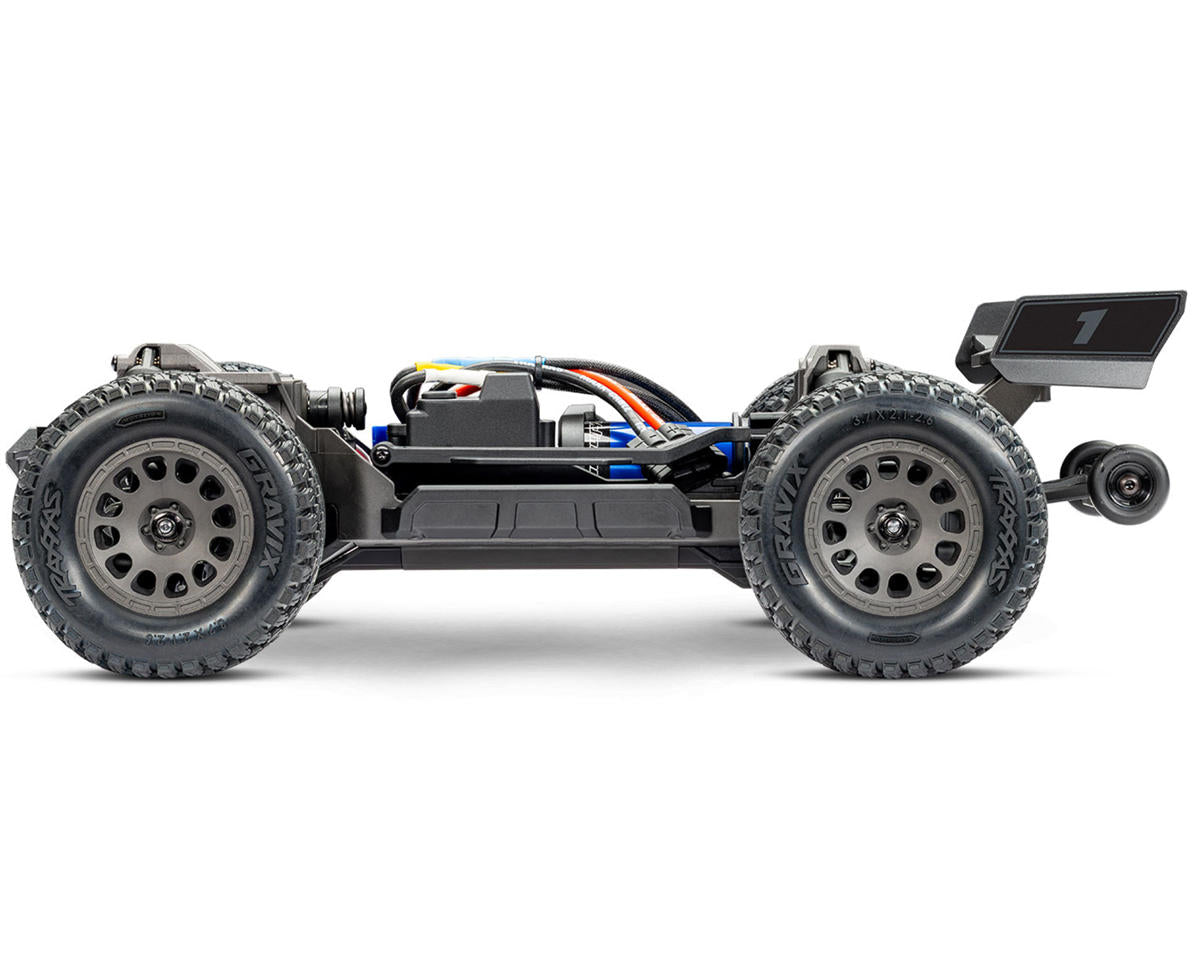

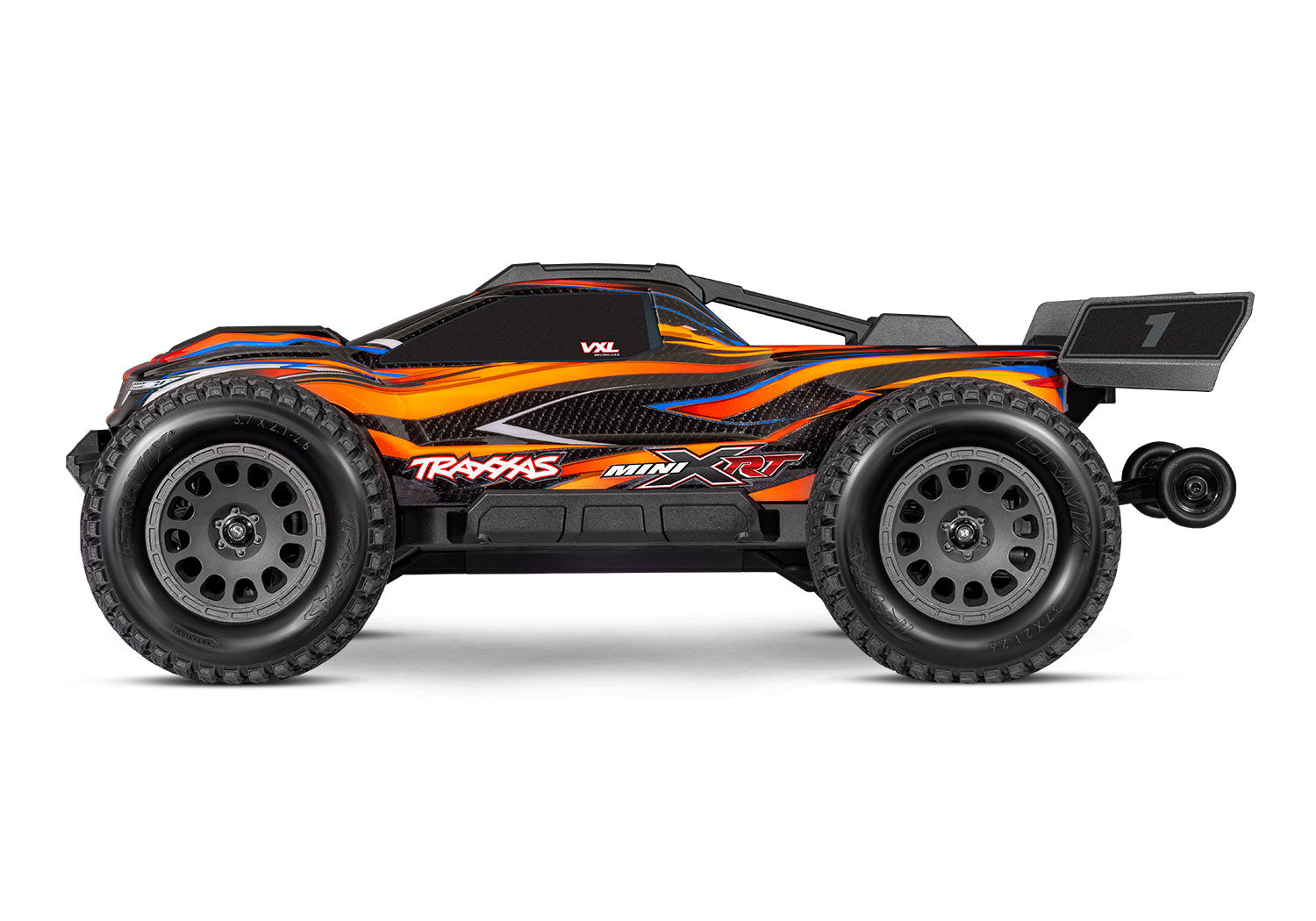

Extreme 3s Performance. Compact Size.

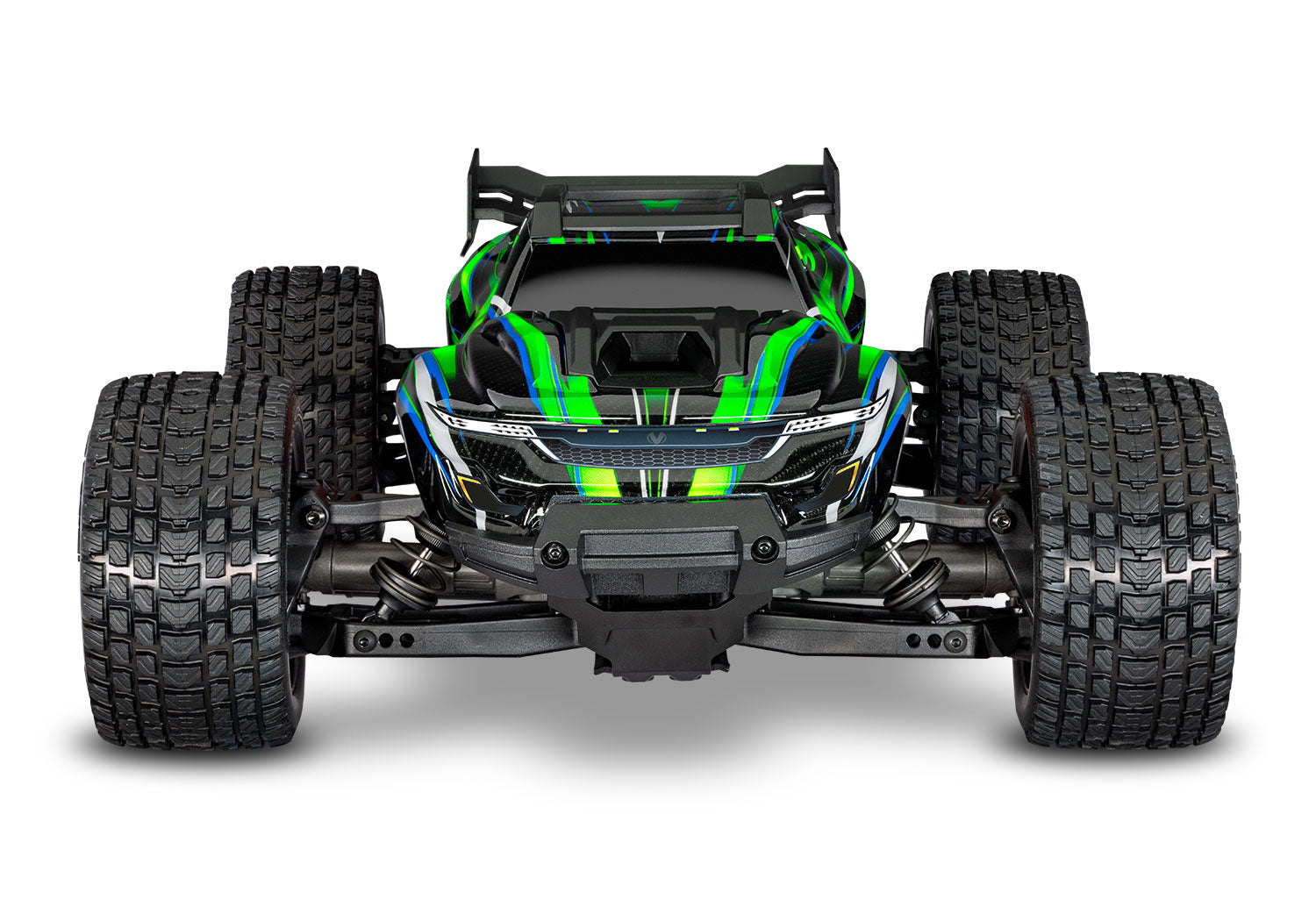

Mini XRT^® is a true rocket with full 1/10 scale Velineon^® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 55+ mph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Key Features

1/10 Velineon^® VXL-3s^™ Brushless Power System
TQi^™ 2.4 GHz Radio System with Traxxas Stability Management^® (TSM)
1/10 Driveline with Center Differential in a Compact Chassis
Full-Size 2075X Metal-Gear Steering Servo
3.7″ Gravix^® Tires with Foam Inserts

Mini XRT comes fully equipped with a 3500 mAh 2-cell LiPo battery optimized for maximum punch and long run times in a compact size. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD^® safety and simplicity.

MODEL SPECS

Model Name:	Mini XRT
Model Type:	Monster Truck
Top Speed:	55+
Skill Level:	1
Scale:	Maxx
Length:	14.8 inches (376 mm)
Width:	11 inches (279 mm)
Height:	5 inches (127 mm)
Weight:	3.99 pounds (1.81 kg)
Front Track:	11 inches (279 mm)
Rear Track:	11 inches (279 mm)

Wheelbase:	8.66 inches (220 mm)
Ground Clearance:	1.06 inches (27 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Direct drive w/ center differential
Differential Type (F&R):	Planetary, steel gear
Overall Drive Ratio:	7.36:1
Gear Pitch:	32
Servo:	2075X metal-gear
Radio System:	TQi 2.4 GHz (2-channel) w/ TSM
Battery Compartment Specs:	113 mm L x 41 mm W x 22 mm H

40+ mph with included 2-cell LiPo Battery
55+ mph with optional 3-Cell LiPo Battery (sold separately)

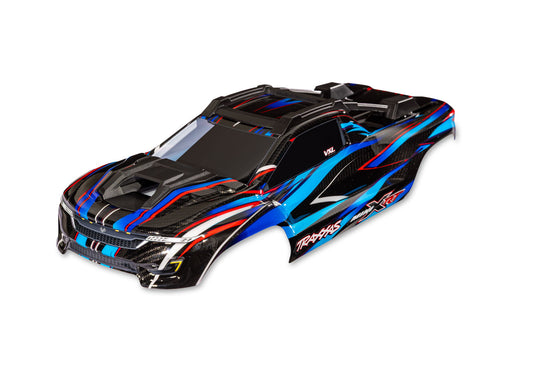

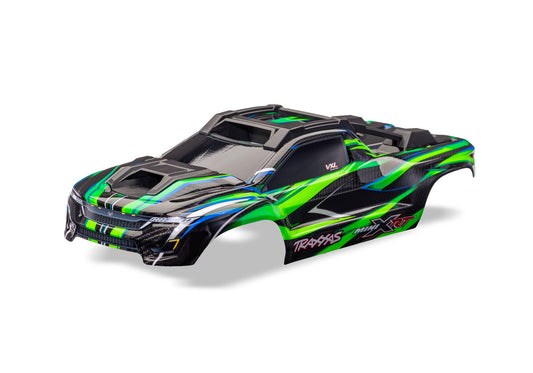

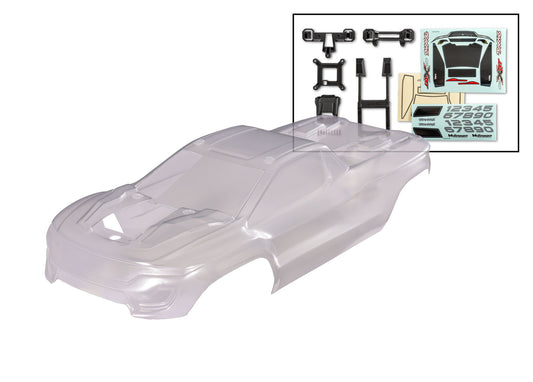

Clipless Body Mounting System

Quick and easy installation and removal
Nerf bar channels for side body support
Reinforced for extra protection against tearing
Functional rear wing

VXL-3s™ Waterproof Electronic Speed Control

Three programmable drive profiles

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse

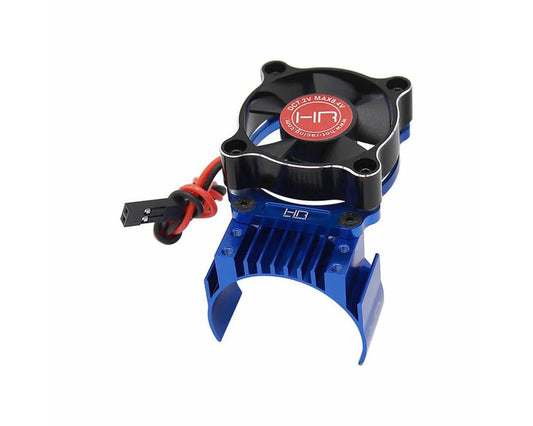

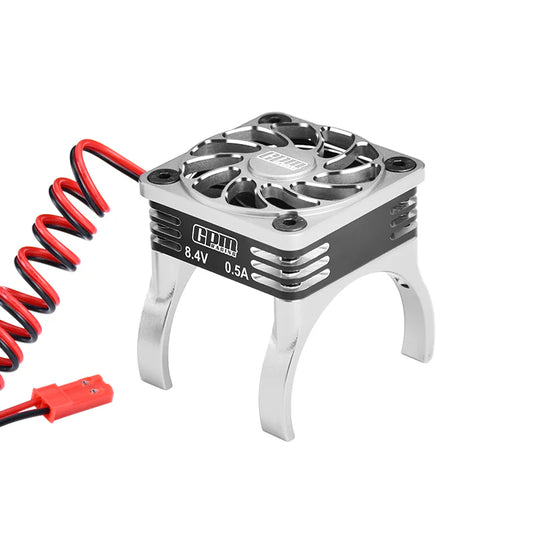

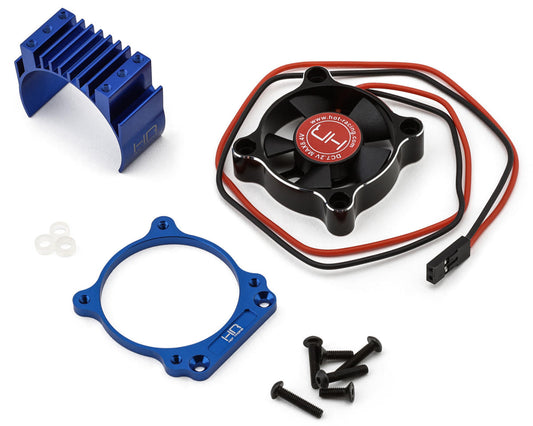

Heat sink accepts accessory cooling fan (3340)
Traxxas EZ-Set^® one-button setup
Built-in two-stage low-voltage detection

Velineon^® 3500 Kv Brushless Motor

Ultra high-temperature sintered neodymium magnets
Low-maintenance design
Precision-balanced rotor
Efficient high-speed ball bearings
3500 Kv
Brilliant blue-anodized finish

Battery and Charger Included

High-capacity 2-cell LiPo battery

7.4 volts
3500 mAh for extended run time

2-amp USB-C charger
iD^® technology for faster, safer charging

TQi™ 2.4 GHz High Output 2-Channel Radio System

Programmable multi-function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
5-channel micro receiver (6533) with fail-safe security
Patented waterproof receiver box with easy-access plug

Traxxas Stability Management^® (TSM)

Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter

1/10 Scale 4X4 Driveline

Full-time shaft-driven 4-wheel drive

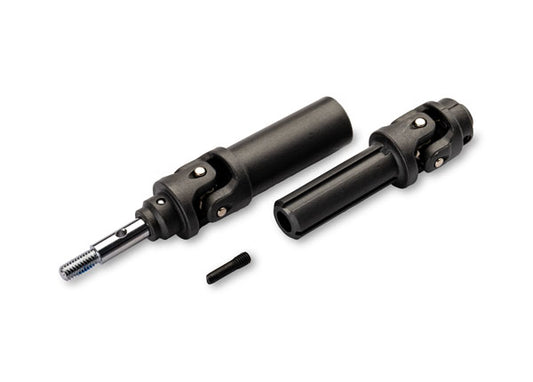

1/10 scale extreme-duty telescoping driveshafts
Direct-drive (no transmission)

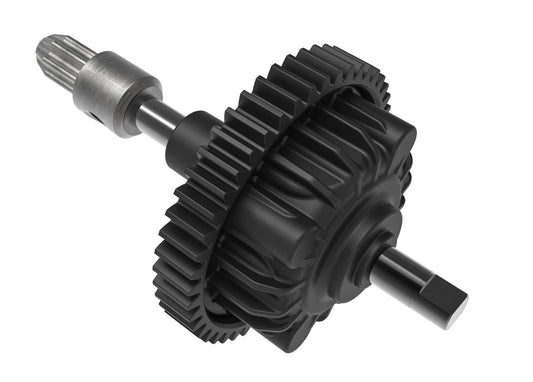

Sealed center differential
Large 32-pitch gears
Sealed planetary steel-gear differentials (F&R)
Fixed gear mesh system

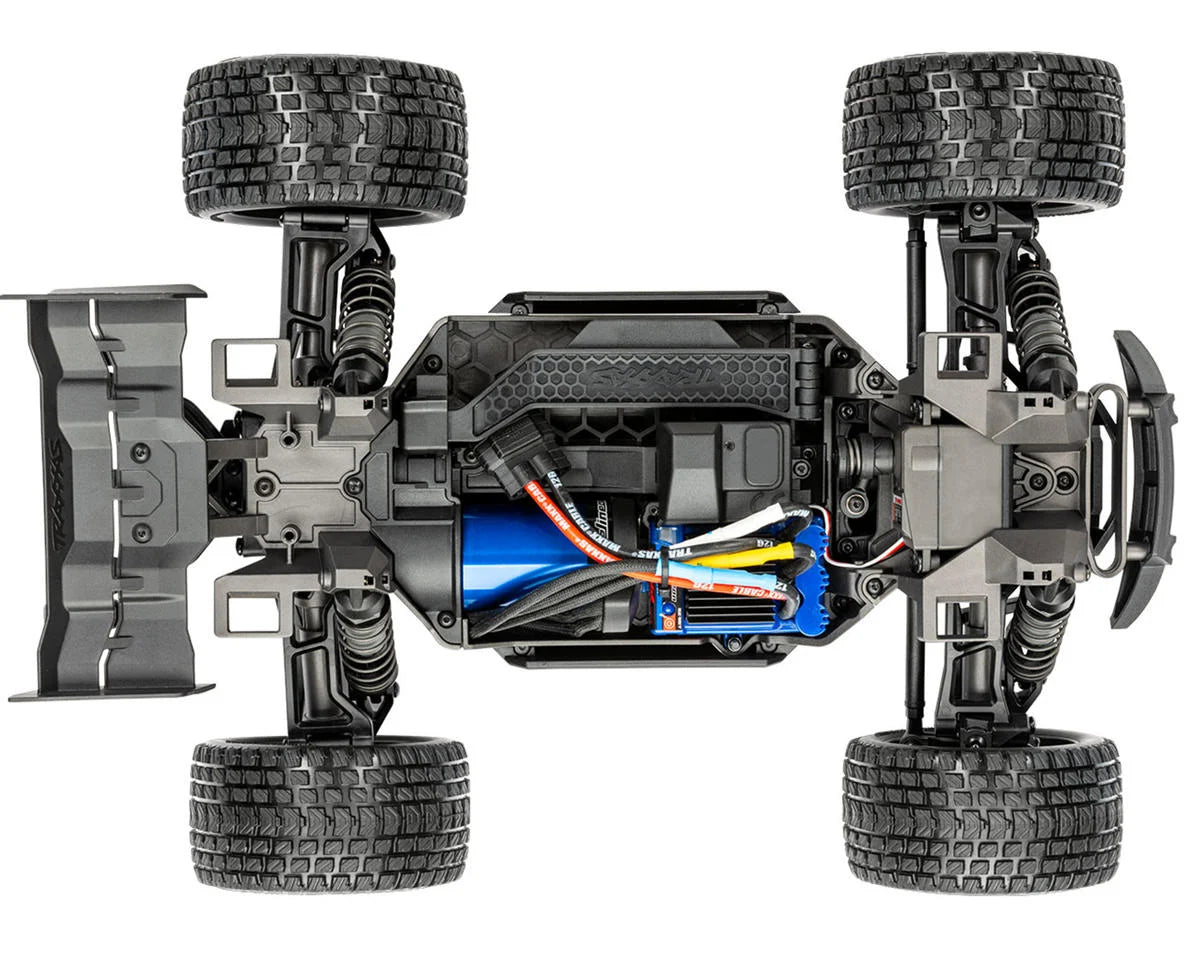

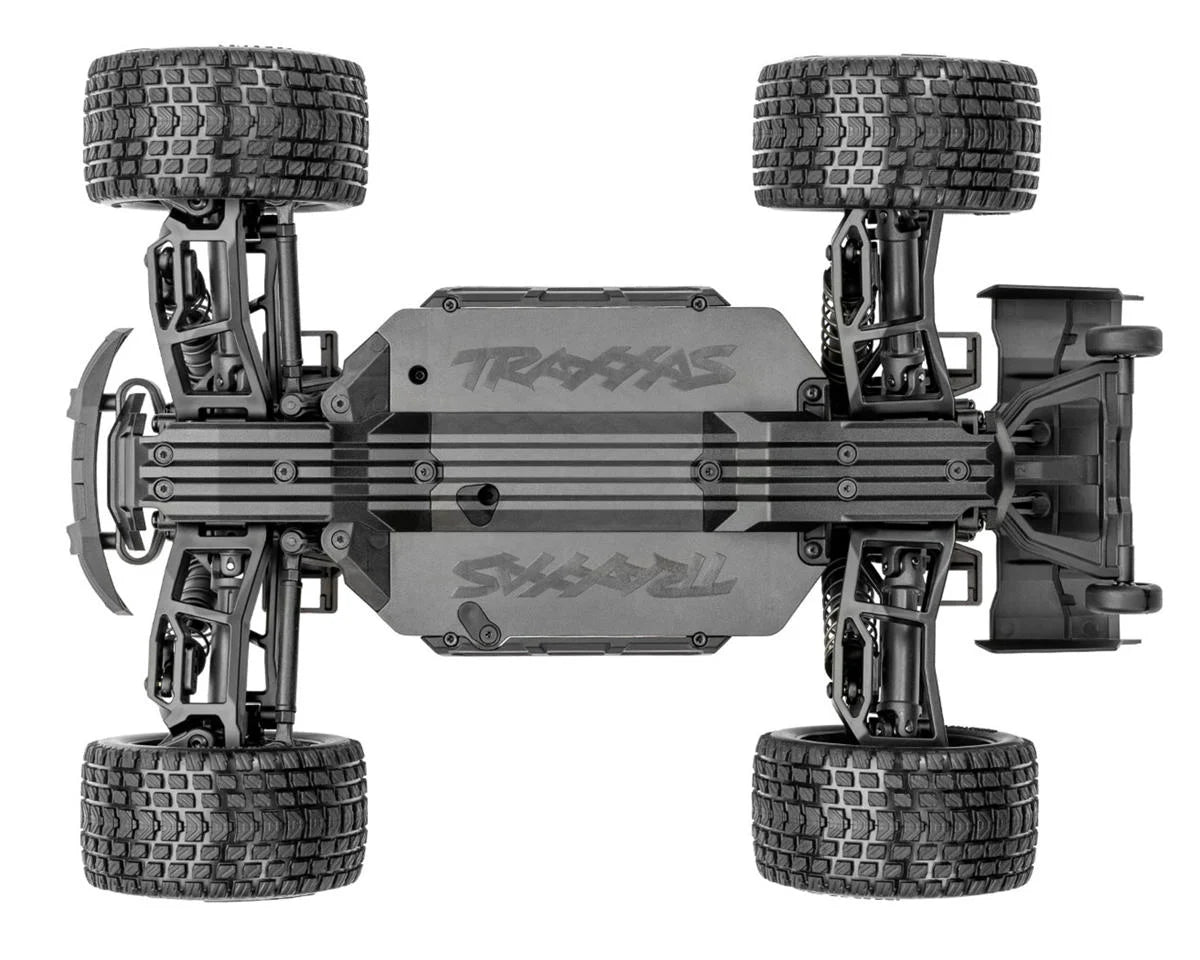

Modular Composite Chassis

Modular chassis with interlocking front and rear bulkheads
Driveline is sealed in the chassis to keep out dirt
Absorbs and distributes impact energy
Easy to service and access components

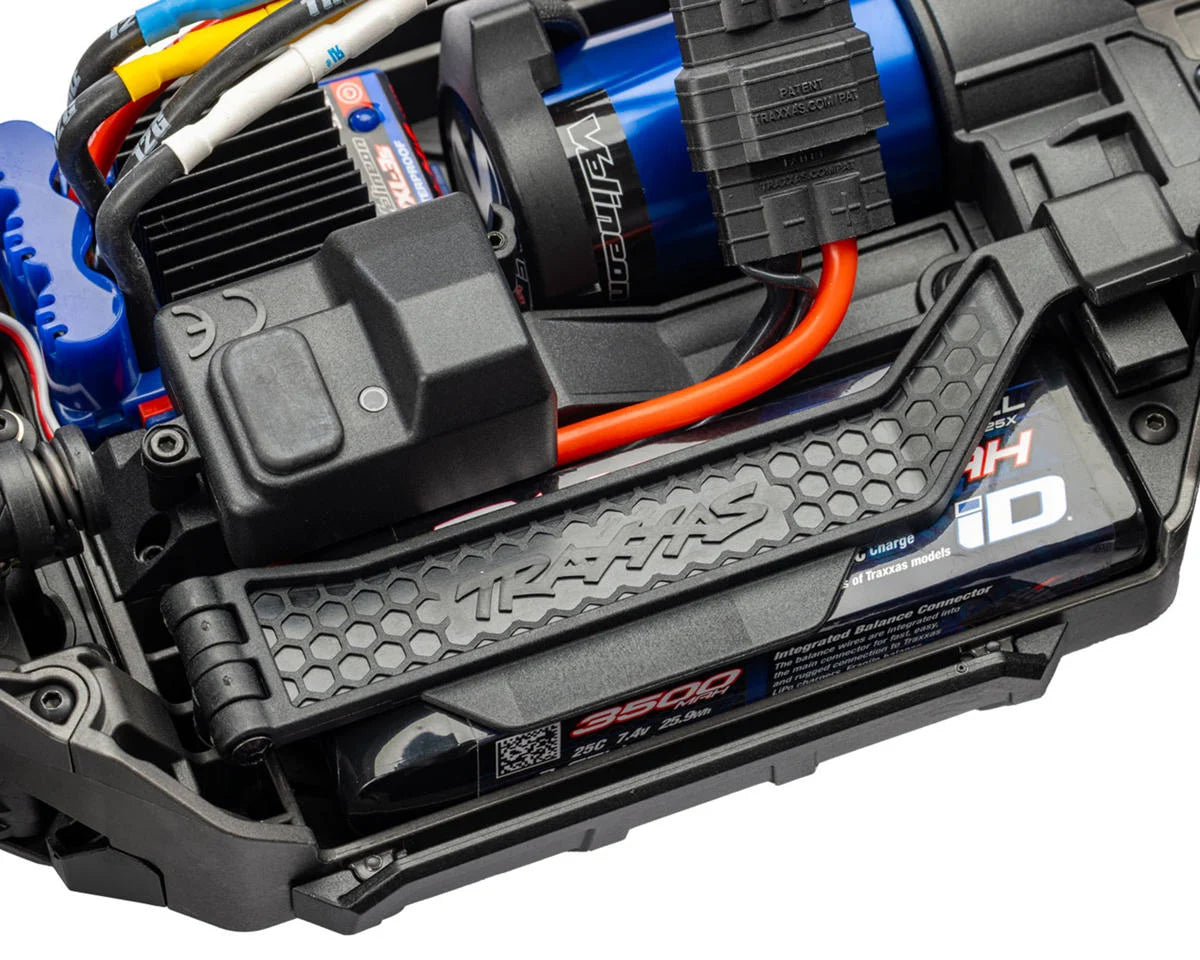

Easy Battery Access

Battery is protected deep in the chassis

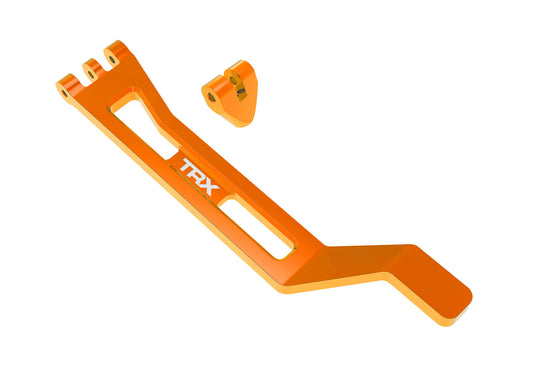

Battery hold-down pivots for easy access
More secure than conventional retention systems

Steering

1/10 scale 2075X waterproof high-torque, metal-gear servo

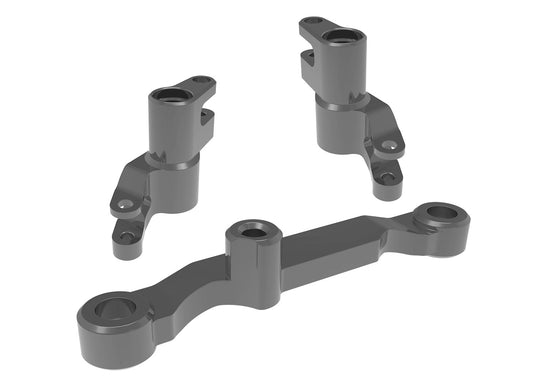

Heavy-duty double-shear bellcranks
Cam-operated servo saver

Suspension

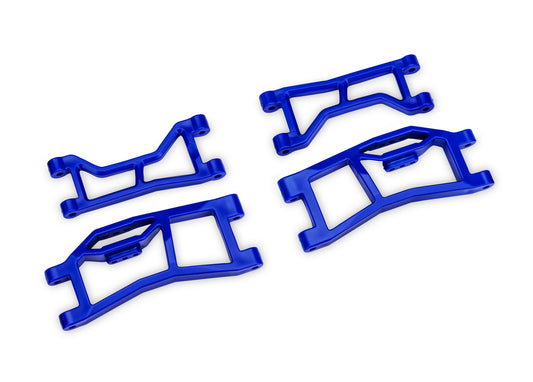

Heavy duty, double-shear suspension arms
Dual wishbone design
Extra tough outer suspension components

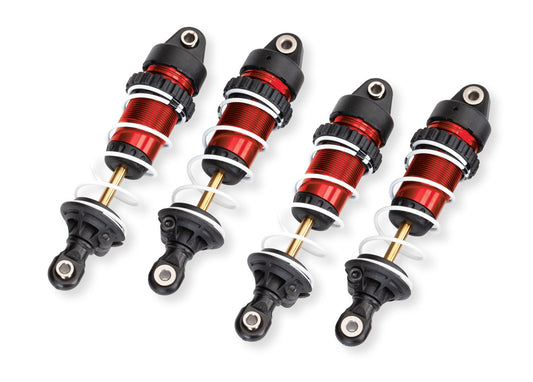

Oil-Filled Ultra Shocks™

Full size 1/10 scale shocks
Large oil capacity
Easy to tune

Bumpers and Skid Plates

Tough energy absorbing front bumper
High-angle front skid plate
Rugged interlocking skid plates
Smooth undertray eliminates snags
Integrated nerf bars for side impact resistance

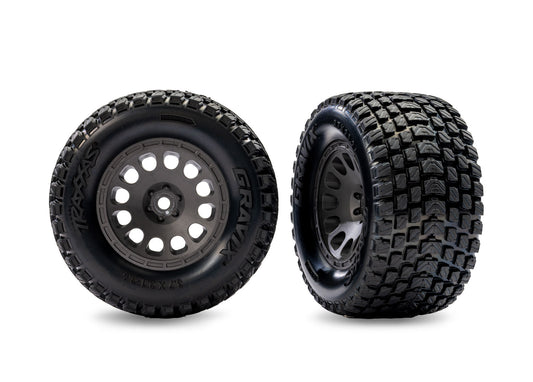

Wheels and Tires

New graphite gray mini XRT wheels
Gravix^® tires with foam inserts

Excellent traction on or off the road
Directional tread pattern for quieter running
Thick center carcass resists ballooning

Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings

MODEL MODEL 108076-1: Mini XRT: Maxx-scale monster truck, fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz radio system, Velineon^® VXL-3s™ brushless power system, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.

What’s In The Box:

Mini XRT Ready-To-Race monster truck
Velineon VXL-3s brushless power system
3500 mAh 2-cell LiPo battery
2-amp USB-C charger
Quick Start Guide
TQ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
Charging Accessories
Power adapter 2912 and power cable 2916 recommended for peak charging performance

MOTOR SPECS

Motor Name:	Velineon^® 3500
Motor Type:	Sensorless brushless
Motor Weight:	9.24 ounces (262 g)
Motor Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	3.5 mm bullet

ESC SPECS

ESC Name:	VXL-3s electronic speed control
ESC Type:	Brushless
ESC Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	12 gauge Maxx Cable
