109076-4-ORNG

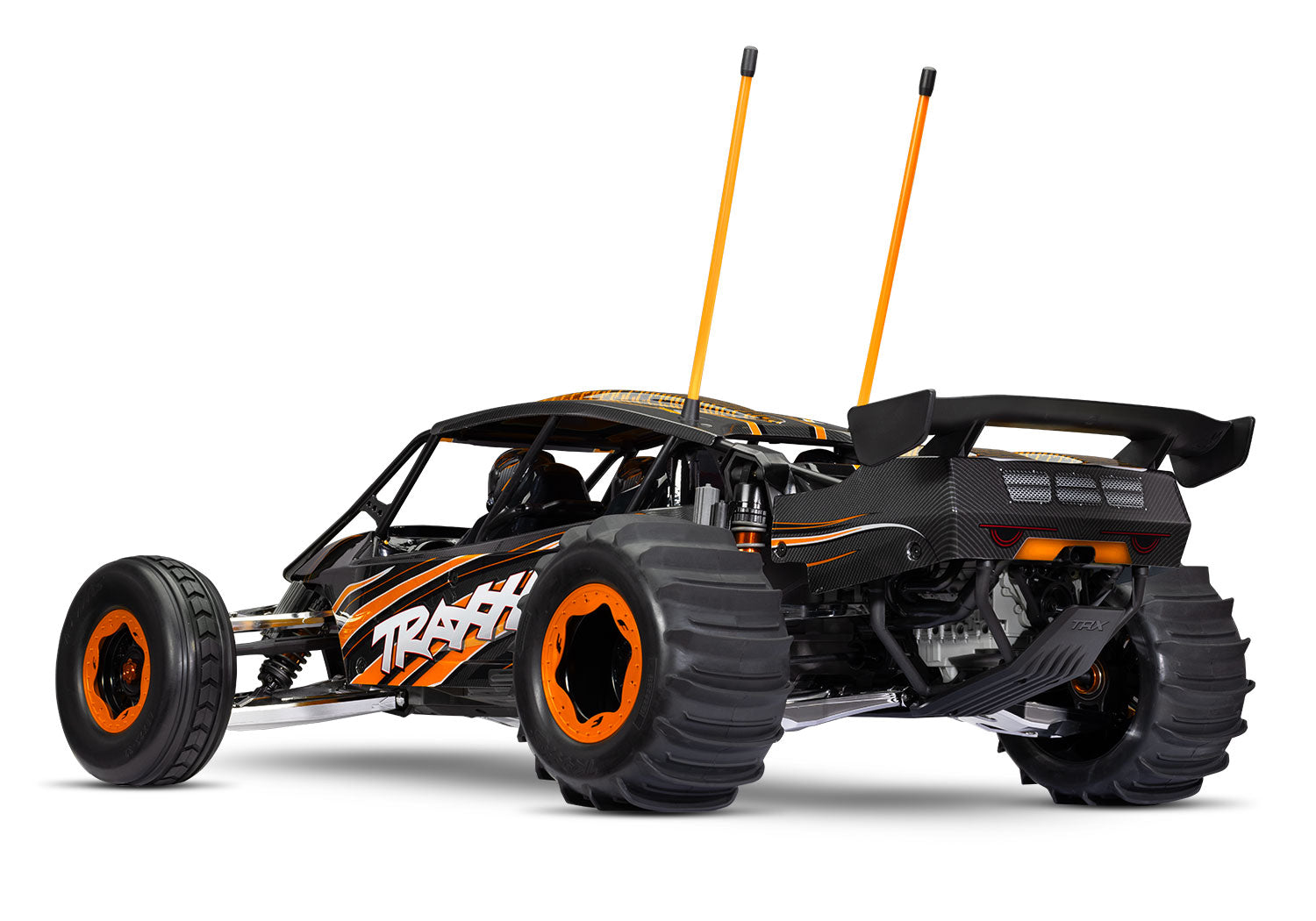

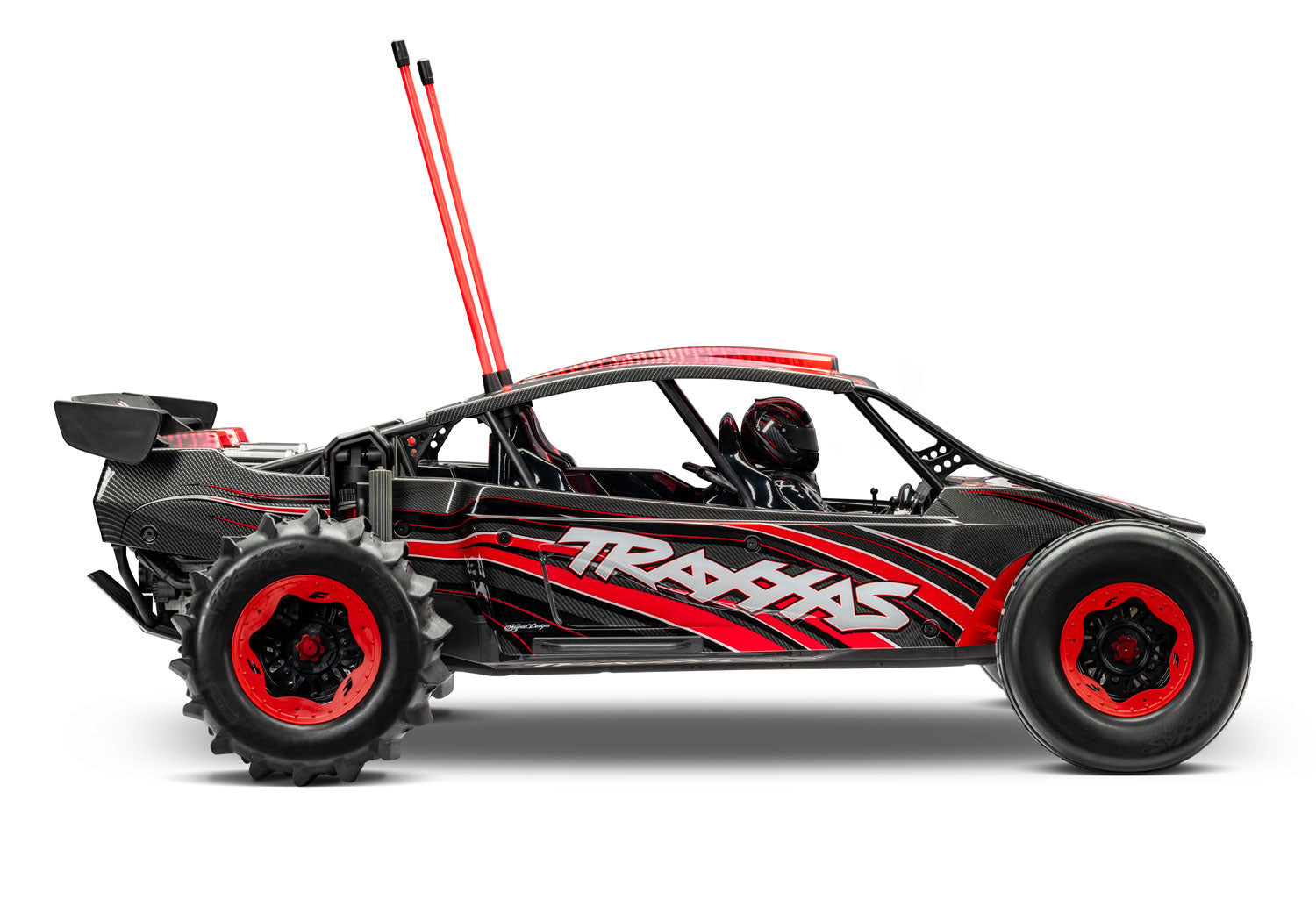

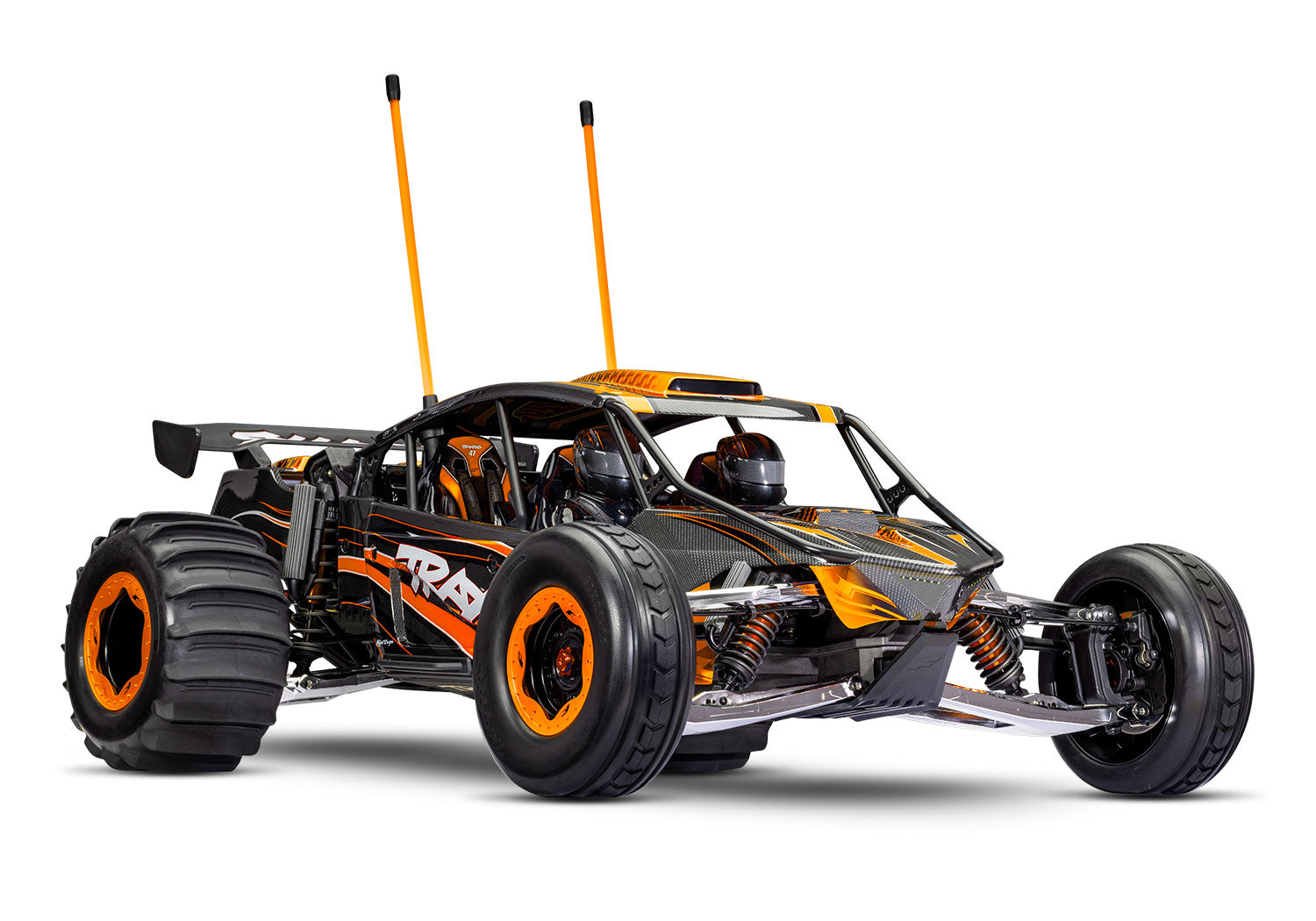

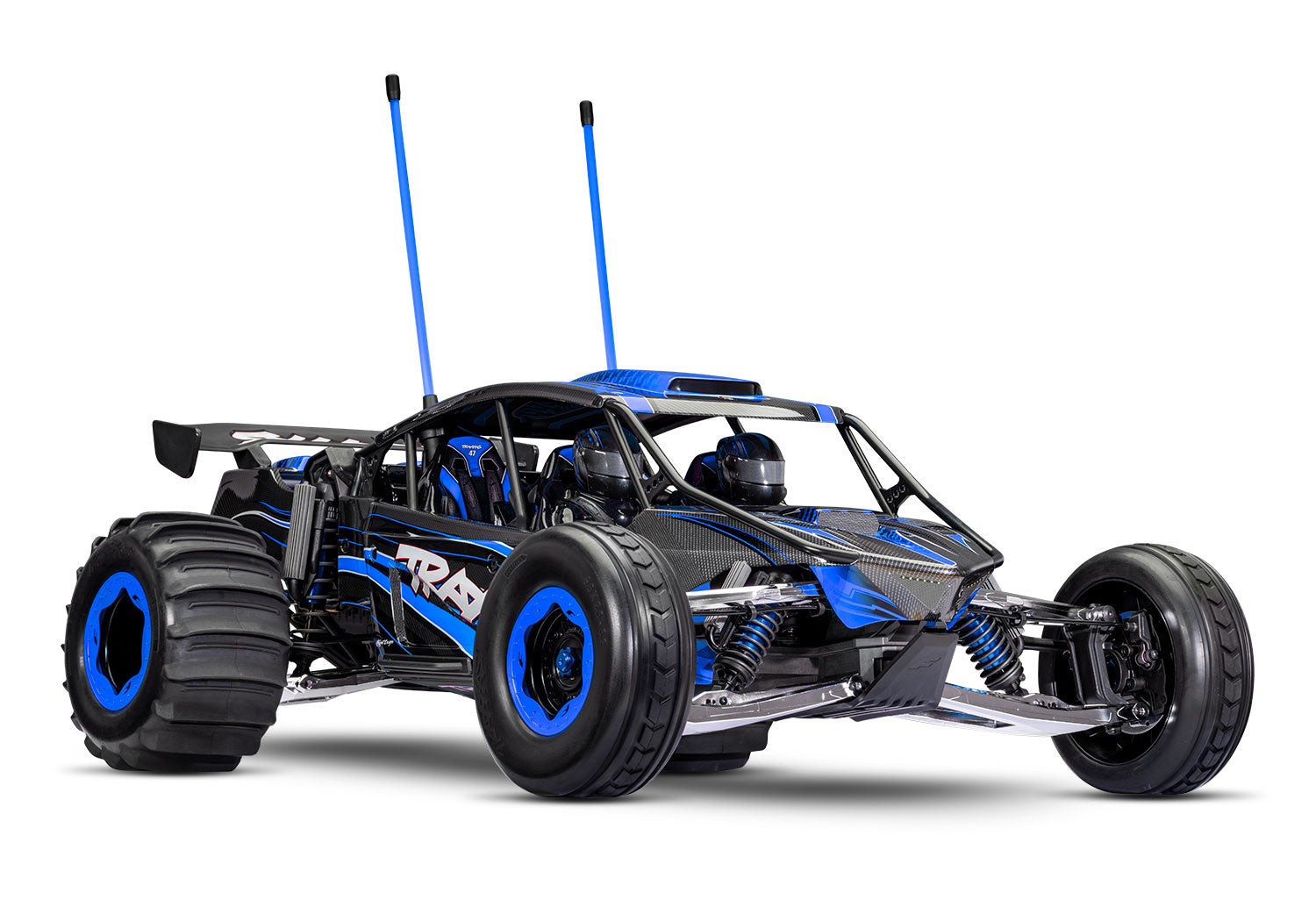

Pro Scale X-Series Sand Car
You Might Need
Popular Upgrades
Spare Parts

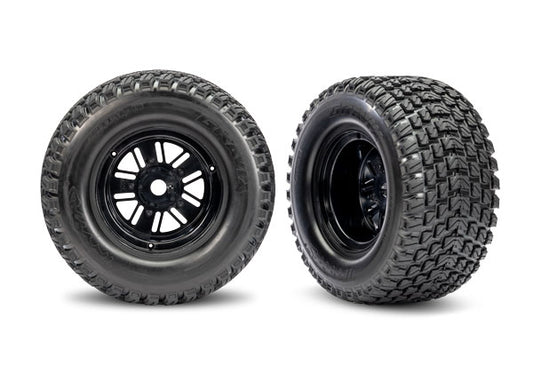

Pro Scale X-Series Sand Car w/Free Pair of Gravix Wheel/Tire Upgrade (10947 $62.95 value)
 |
Pro Scale X-Series Sand CarKey Features
|
| Name: | Pro Scale Sand Car |
|---|---|
| Speed: | 55+ mph with dual 4s LiPo batteries and speed gearing |
| Scale: | X-Series |
| Length: | 32 inches (812 mm) |
| Width: | 21.7 inches (551 mm) |
| Ground Clearance: | 1.98 inches (50 mm) |
| Weight: | 22.06 pounds (10 kg) |
| Height: | 11.1 inches (283 mm) (body), 19.6 inches (498 mm) (whip lights) |
| Wheelbase: | 21.4 inches (543 mm) |
| Shock Length: | 5.08 inches (129 mm) (front), 7.13 inches (181 mm) (rear) |
| Tires (Arrow Pattern, Front): | 6.8″ x 2.3″ (173 mm x 58 mm) |
| Tires (Paddle, Rear): | 7.5″ x 4.0″ (191 mm x 102 mm) |
| Wheels (Front): | 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer) |
| Wheels (Rear): | 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer) |
MOTOR SPECS
| Motor Name: | Velineon® 1200XL |
|---|---|
| Motor Type: | 1275 kV sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 4.32 inches (110 mm) |
| Motor Diameter: | 1.88 inches (48 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | Velineon® VXL-8s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| ESC Power Wire: | 10 gauge Maxx® Cable |
- Replica Funco Sand Car Clipless Body
- Full-length tube frame support
- Detailed interior with driver figures
- Replica engine with licensed accessories

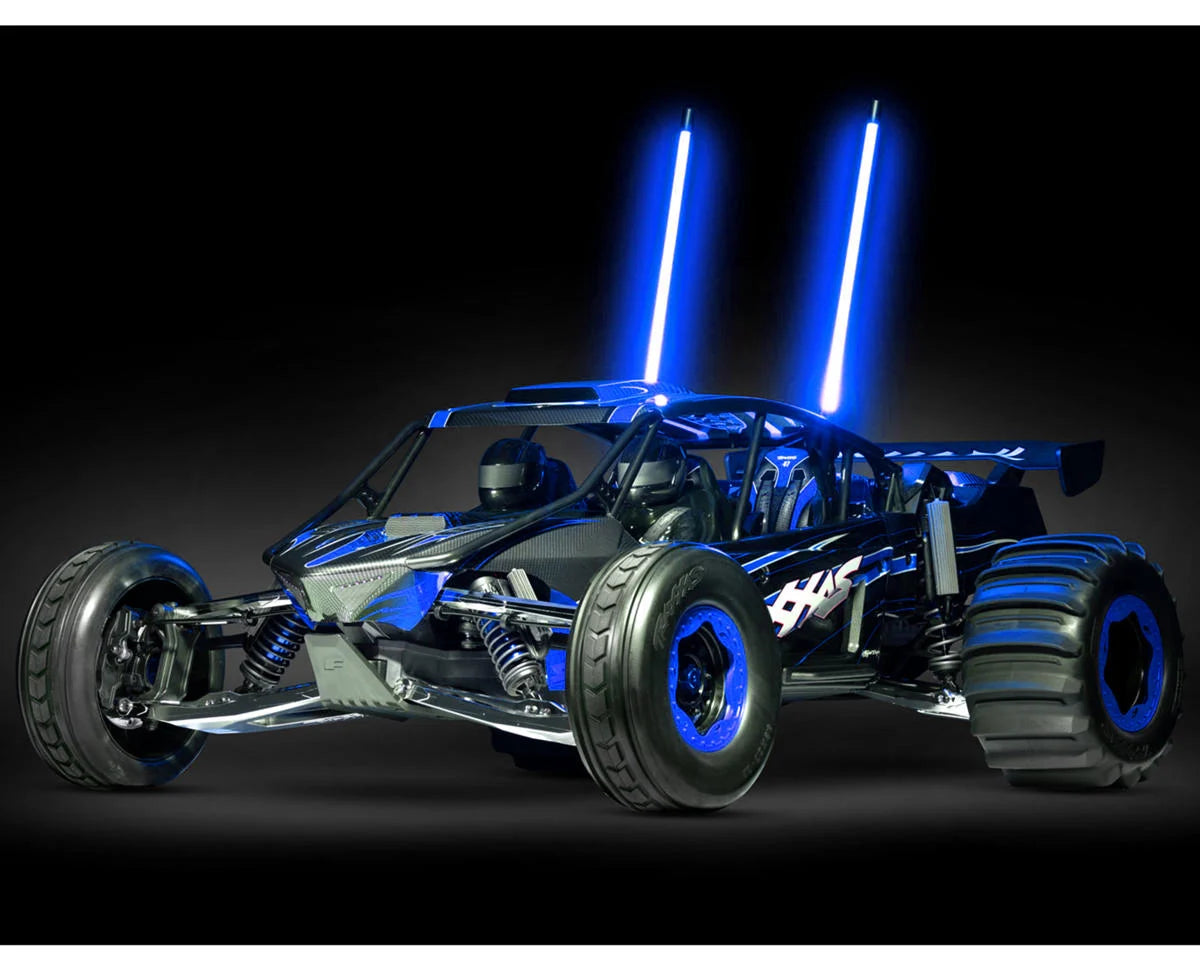

- 10″ color-matched whip lights
- Spring loaded-Flex Tech mounts for rollover protection
- High-performance rear wing
- Wheelie bar
- VXL-8s Waterproof Electronic Speed Control
- Aggressive tuning for more power at any rpm
- Integrated cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sink
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 Kv
- 5 mm output shaft
- Oversize aluminum heatsink for improved cooling
- Dual cooling fans
- 55+ mph with Two 4s LiPo Batteries and Included Speed Gearing
- Traxxas Stability Management
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi 2.4 GHz 2-Channel High Output Radio System
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Patented waterproof receiver box with easy-access plug
- Ultra-Heavy-Duty 8s Drivetrain
- Steel CV driveshafts & axles
- New larger X-Series differential output yokes
- Fully machined aluminum stub axles
- Direct-Drive Transmission
- 1.5 mod wide-face steel gears
- 1.0 mod steel pinion and spur gears
- Fixed gear mesh system
- Rear Differential
- Huge 1.5 module straight-cut ring gear
- Sealed 4-gear design
- Splined outdrives attached with external thru-bolt method
- Reinforced bulkhead and covers for increased bearing support
- Rock-Solid Motor Mounting System
- Precise preset gear mesh adjustments
- 4 keyed pins lock the motor in place
- Motor retention separate from gear mesh
- GT Maxx Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Height-adjustable spring retainer
- Heavy-duty composite shock caps with pivot balls
- Lower spring perches bolted on
- Suspension

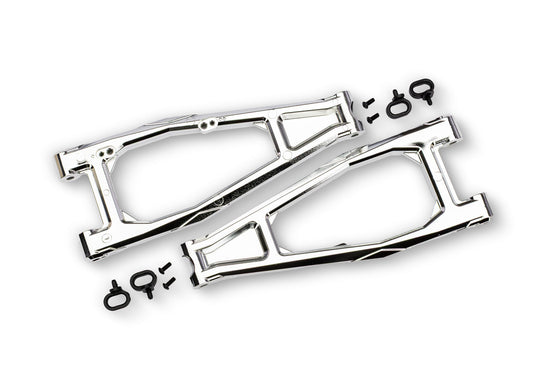

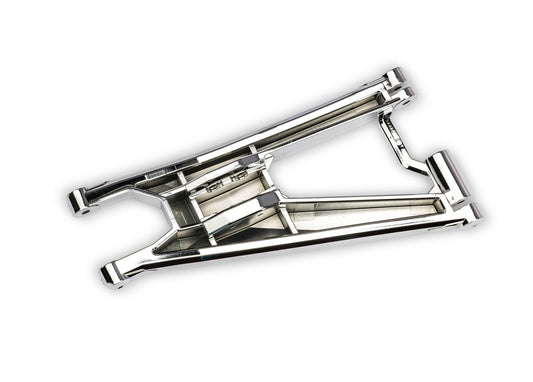

- Polished alumunum-finish suspension arms
- Made from cold-weather HD composite
- Performance-optimized geometry
- Double-shear connections
- High-strength steel suspension pins with retainers
- 4 mm machined pivot balls
- Fixed high-strength camber and toe links
- Heavy-duty steering blocks and axle carriers
- Oversized wheel bearings
- Braking
- Electronic rear brakes
- Powerful front disc brakes with spring-loaded calipers
- Operated by 2075 digital servo
- Sheathed brake cables
- Stainless steel slotted and drilled brake rotors

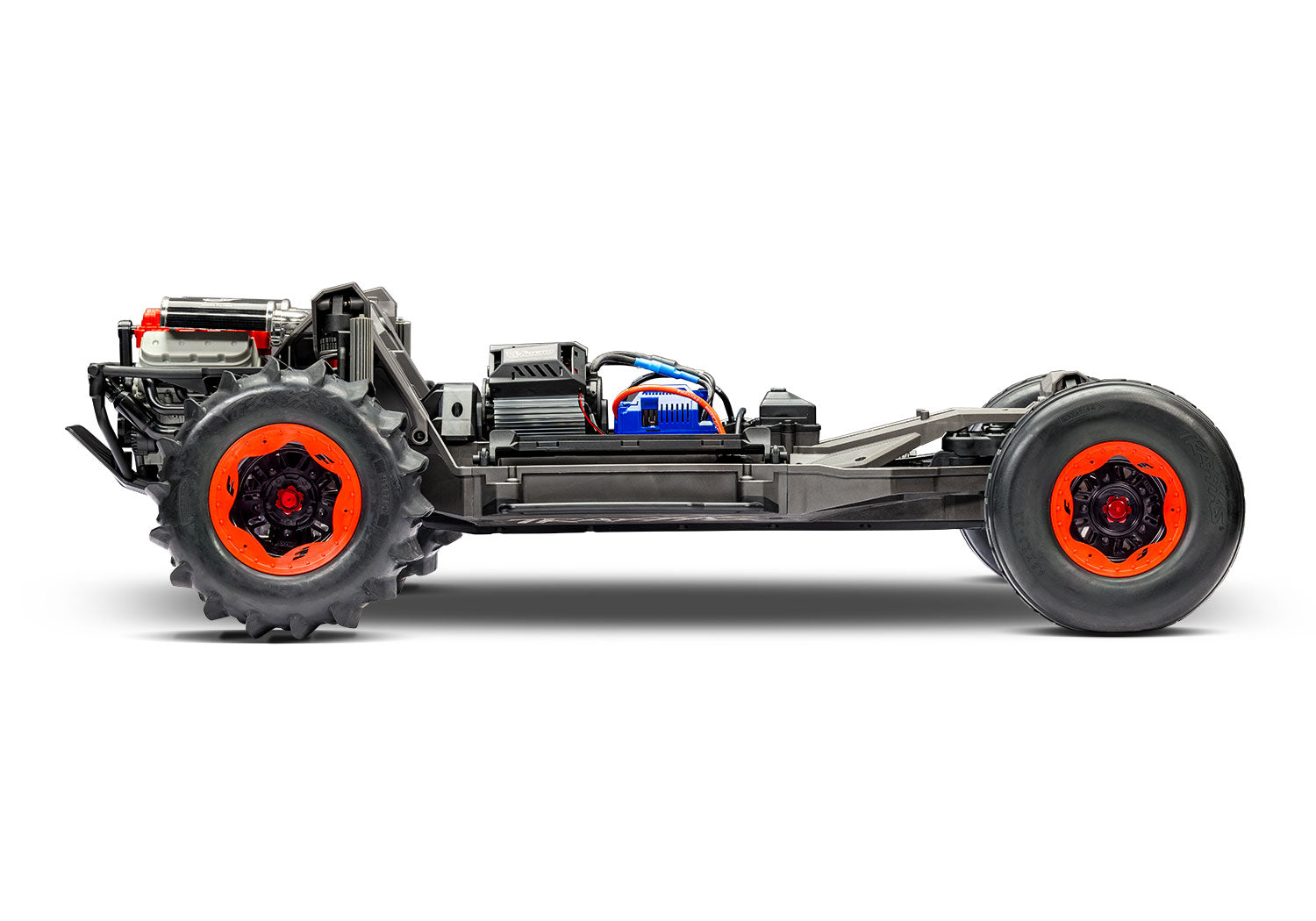

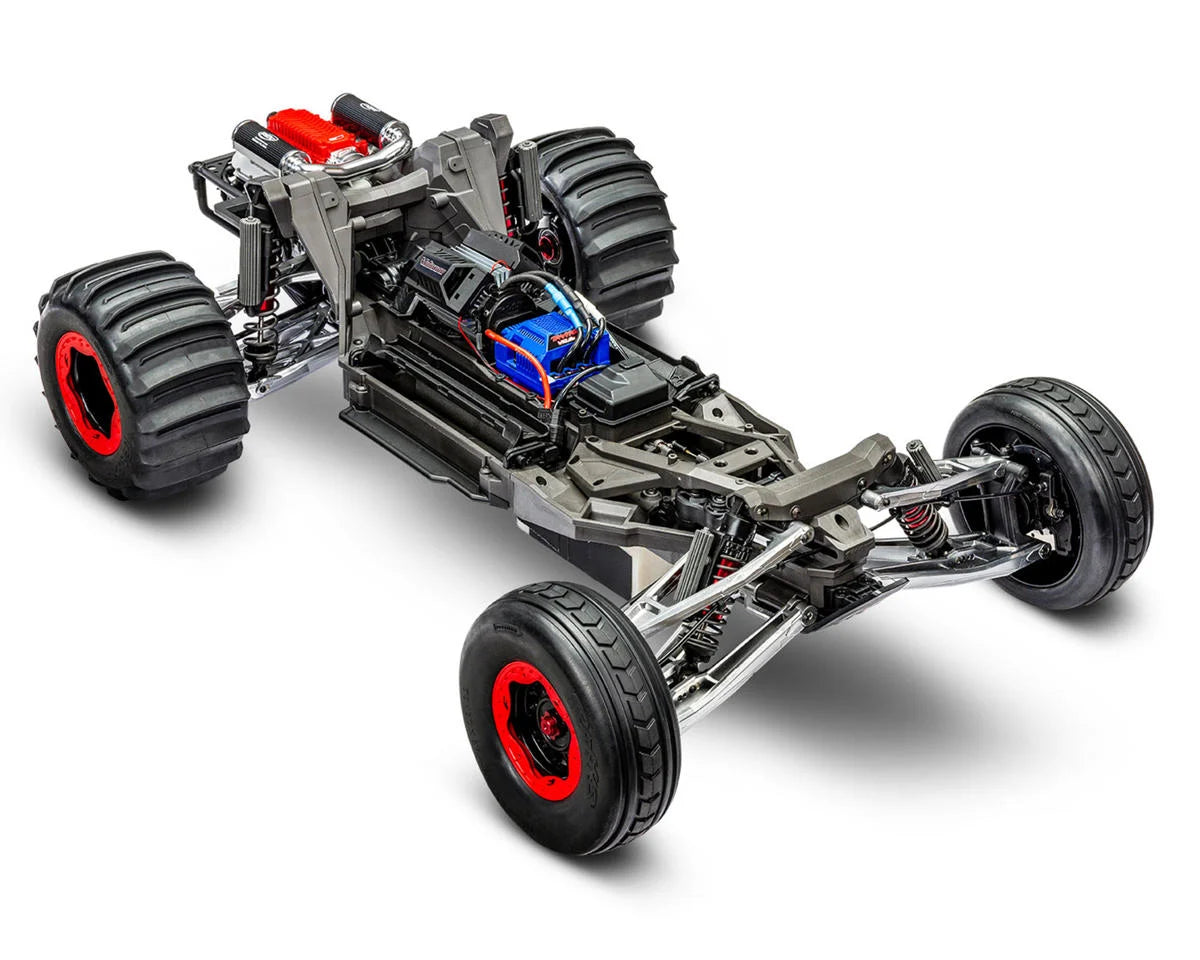

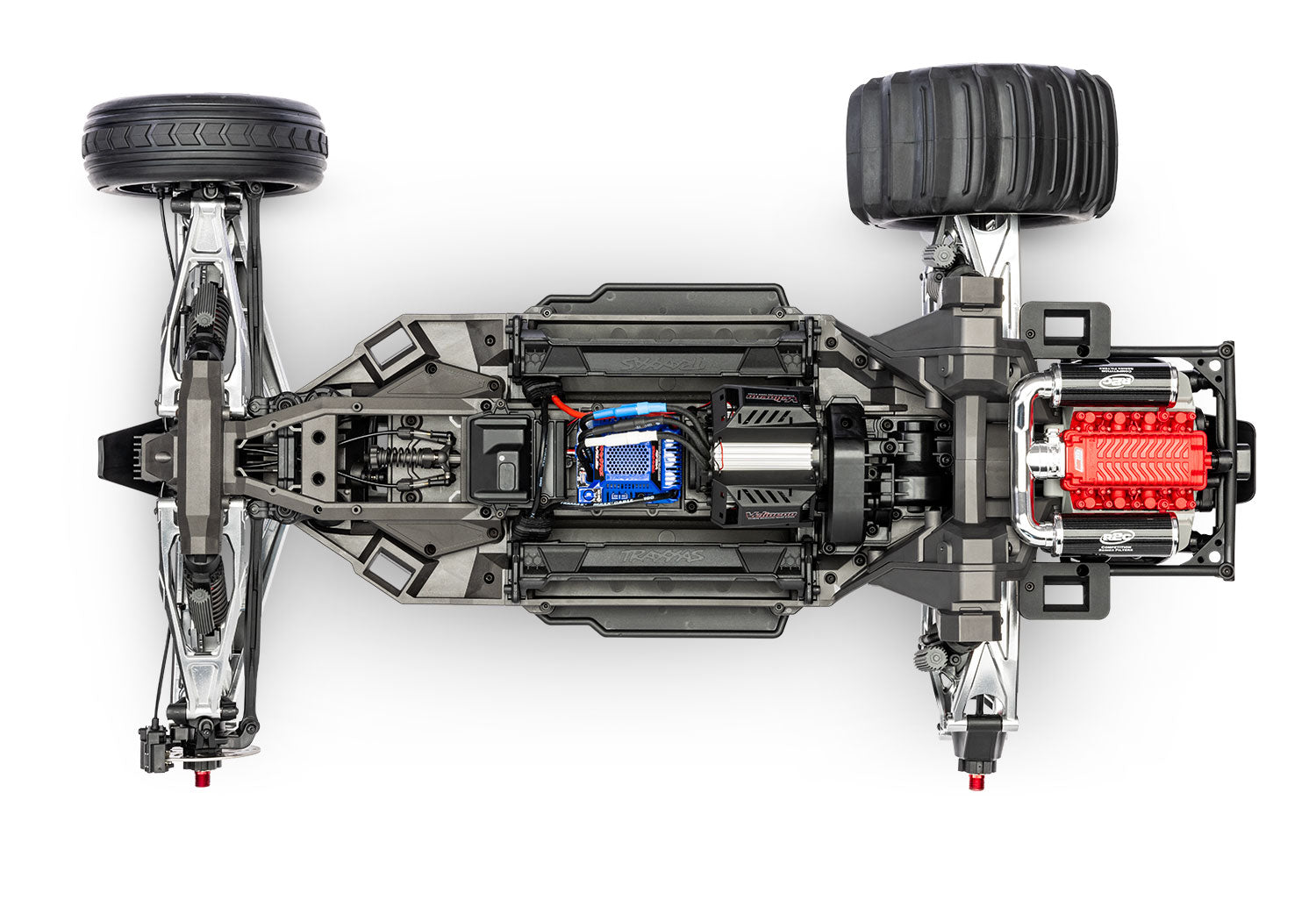

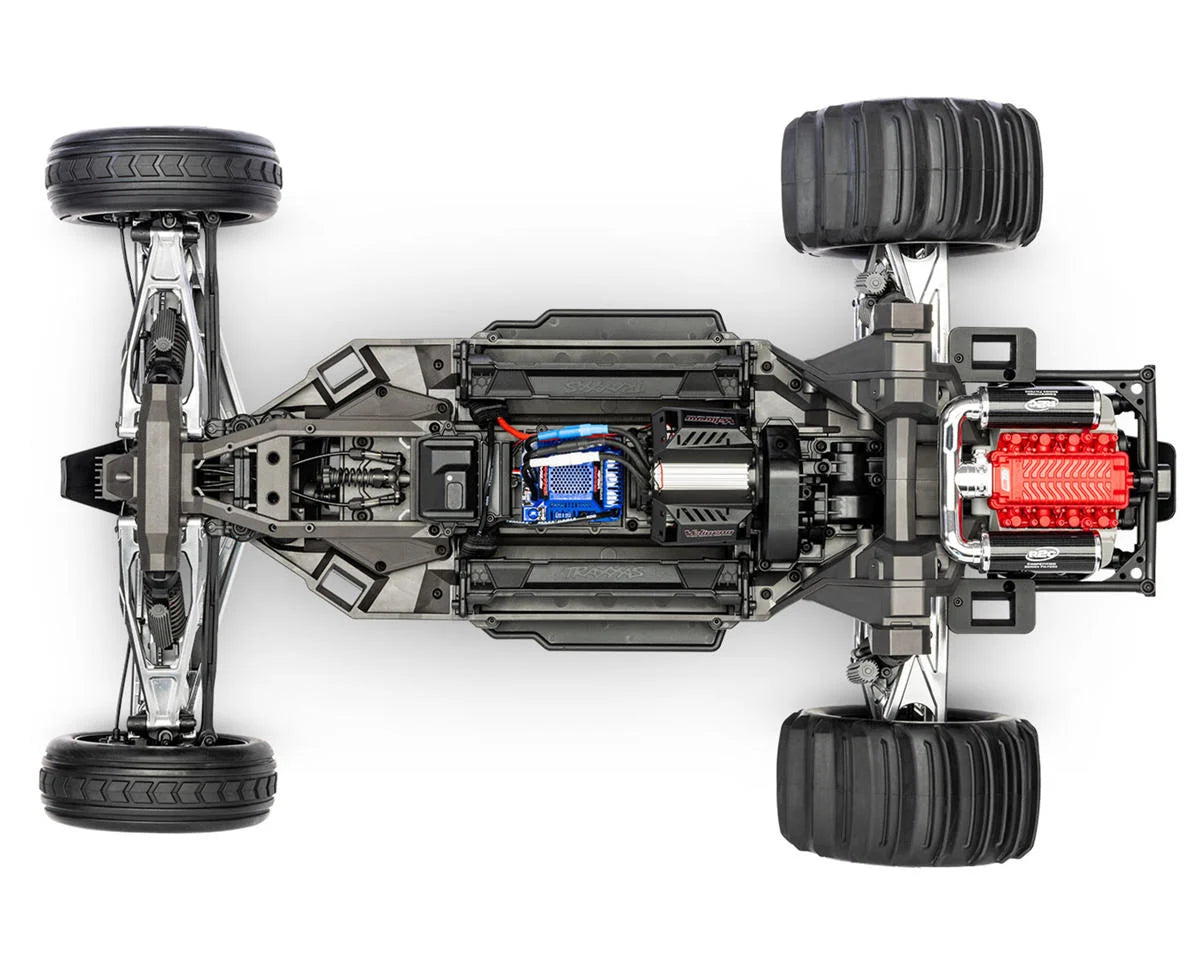

- Low-CG Chassis Design
- Modular chassis with interlocking bulkheads
- Low center of gravity for improved handling
- Flat bottom design
- Interlocking skid plates
- High-strength buttressing on shock towers
- Dual snap-lock battery compartments
- Protects batteries from side impacts
- Allows secondary battery-clip security
- Interlocking components for tight tolerances
- Wire management for clean appearance
- Wheels and Tires
- 7.5" Rear paddle tires
- Aggressive paddle design
- Belted carcass resists ballooning
- 6.8" front arrow-pattern tires
- Excellent traction on sand, dirt, and pavement
- Replica Funco beadlock wheel design

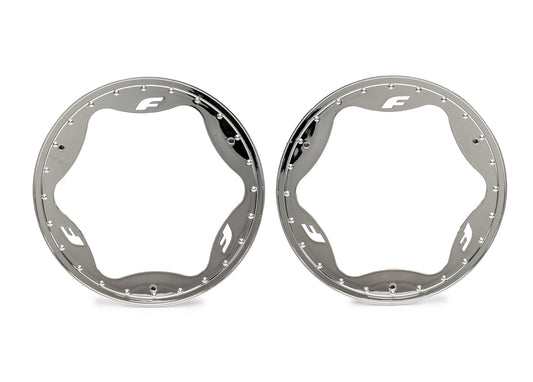

- Color-matched beadlock rings and axle nuts
- High-strength glue and bead design
- Huge 24 mm splined wheel hubs
- Steering
- Powerful 450 oz-in steering servo (2085XL)
- Heavy-duty cam-style servo saver
- Dirt evacuation channels
- Fully waterproof
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- Pro Scale Sand Car Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High visibility whip lights
- Wheelie bar
- Speed gearing
- High quality maintenance tools
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).
- LiPo Balance Charger with iD®
Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
