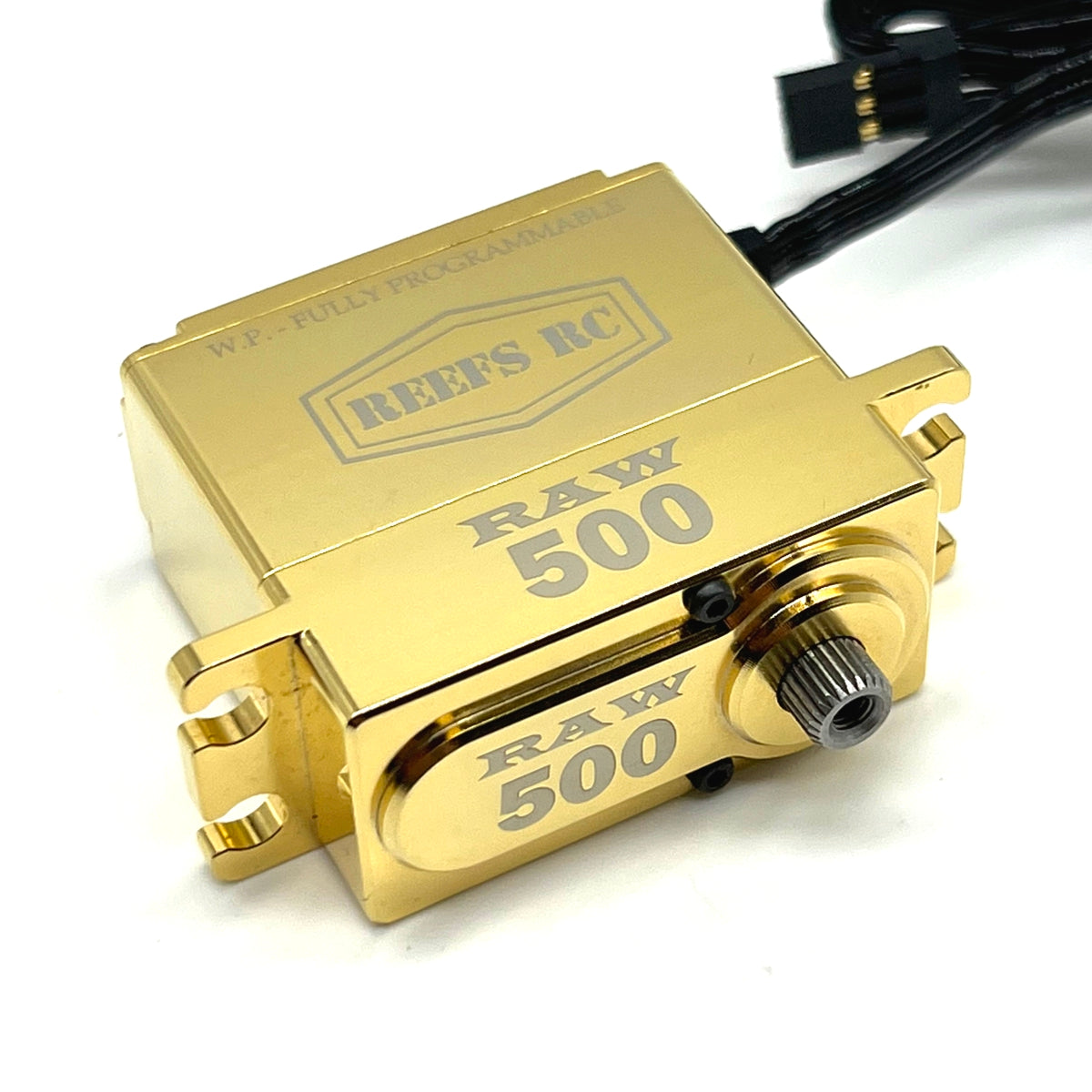

RAW500 Brass Edition, High Torque, High Speed, Programmable, Brushless Servo (565/.08)

• High Torque High Speed Brushless Servo
• Submarine Waterproof: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable with REEFS Software (REEFS LINK required for Programming)

• Input Voltage Range: 4.8 V - 8.4 V
• Bearing Type: 2 Ball Bearings
• Internal: Steel Gears
• Spline: 25T / Dead Band Width: 2µs
• Brass Casing with Ultra Finish
• Weight: 5.2oz / 145.2G
• Dimension: 1.57 x .79 x 1.5 (LWH)
• Torque: 450oz-in @ 6 V/ 500oz-in @7.4 V/ 565oz-in @8.4 V
• Speed: .11sec @6 V/.095sec @7.4 V/.08sec @8.4 V
• Unload Current: 320mA @ 6.0 V / 360mA @ 7.4 V / 400mA @ 8.4 V
• Load Current: 4000mA @ 6.0 V / 4300mA @ 7.4 V / 4600mA @ 8.4 V
• BEC not required, recommended for max performance
