TRX-4 SPORT
TRX-4 SPORT
Regular price
$369.95 USD
Regular price
Sale price
$369.95 USD
Unit price
/
per
SKU:82024-4
TRX-4 SPORT
-
Tough, Lightweight Pickup Truck Body
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
-
Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
-
Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
-
Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
-
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
-
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
-
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
-
Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
-
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
-
Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
-
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
-
Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
Model Specs
Model Name: | TRX-4 Sport |
---|---|
Model Type: | Trail / Crawler |
Model Skill Level: | 1 |
Scale: | 1/10 |
Weight: | 5.79 pounds (2.63 kg) |
Length: | 21.93 inches (557 mm) |
Width: | 9.78 inches (249 mm) |
Front Track: | 9.78 inches (249 mm) |
Rear Track: | 9.78 inches (249 mm) |
Height: | 9.47 inches (241 mm) |
Wheelbase: | 12.28 inches (312 mm) |
---|---|
Center Ground Clearance: | 3.14 inches (80 mm) |
Drivetrain: | Shaft-driven 4WD |
Transmission: | Single speed |
Differential Type: | Spool (no differential) |
Gear Pitch: | 32 pitch |
Servo(s): | 2075X metal gear, digital high-torque waterproof |
Radio System: | TQ™ 2.4 GHz 2-channel radio |
Battery Compartment Specs: | 159 mm X 47 mm X 23 mm, 26 mm |
Motor Specs
Motor Name: | Titan® 21T Reverse Rotation |
---|---|
Motor Type: | High-torque brushed motor |
Motor Weight: | 8.47 ounces (240 g) |
Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
Motor Diameter: | 1.53 inches (39 mm) |
Motor Shaft Size: | 3 mm |
Motor Connector Type: | Bullet |
ESC Specs
ESC Name: | XL-5™ HV |
---|---|
ESC Type: | Brushed |
ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
ESC Weight: | 2.60 ounces (74 g) |
Motor Connectors: | Bullet |
Battery Connectors: | Traxxas High-Current Connector |
ESC Power Wire: | 14 gauge |
Share
Accessories for this product...
-
Auto-Detectable Voltage Sensor
Regular price $14.00 USDRegular priceUnit price / per -
Auto-Detectable Temperature Sensor
Regular price $14.00 USDRegular priceUnit price / per -
Spare Tire Mount & Cover (Ford Bronco)
Regular price $12.00 USDRegular priceUnit price / perSold out -
TRX-4 Offset Rod Ends (4)
Regular price $4.00 USDRegular priceUnit price / per -
TRX-4 Slipper Eliminator Plate (2)
Regular price $9.95 USDRegular priceUnit price / per -
TRX-4 Portal Drive Caster Block Set
Regular price $5.00 USDRegular priceUnit price / per -
LINE, WINCH
Regular price $5.00 USDRegular priceUnit price / per -
TRX-4 Spare Tire Mount
Regular price $6.00 USDRegular priceUnit price / per -

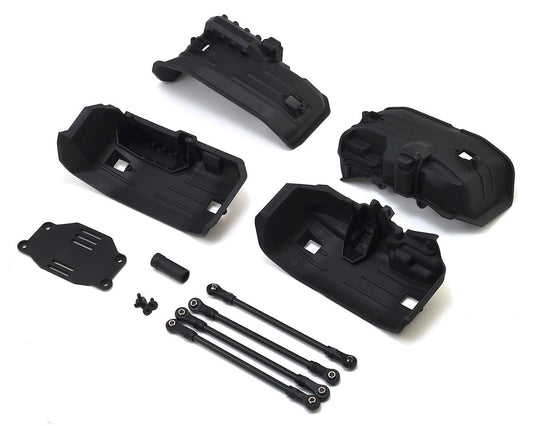

TRX-4 Chassis Conversion Kit (Long To Short Wheelbase) (324mm to 312mm)
Regular price $24.95 USDRegular priceUnit price / per -

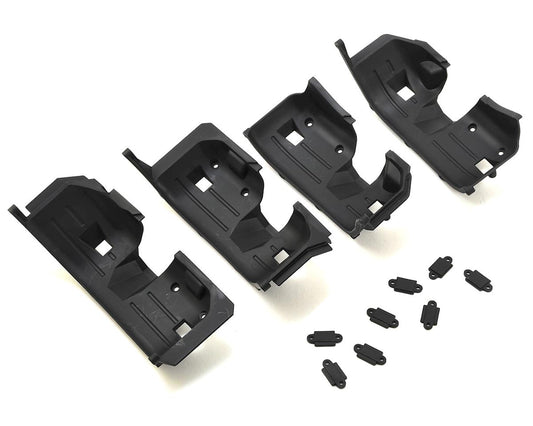

Traxxas TRX-4 Land Rover Defender Front & Rear Inner Fenders & Rock Light Covers
