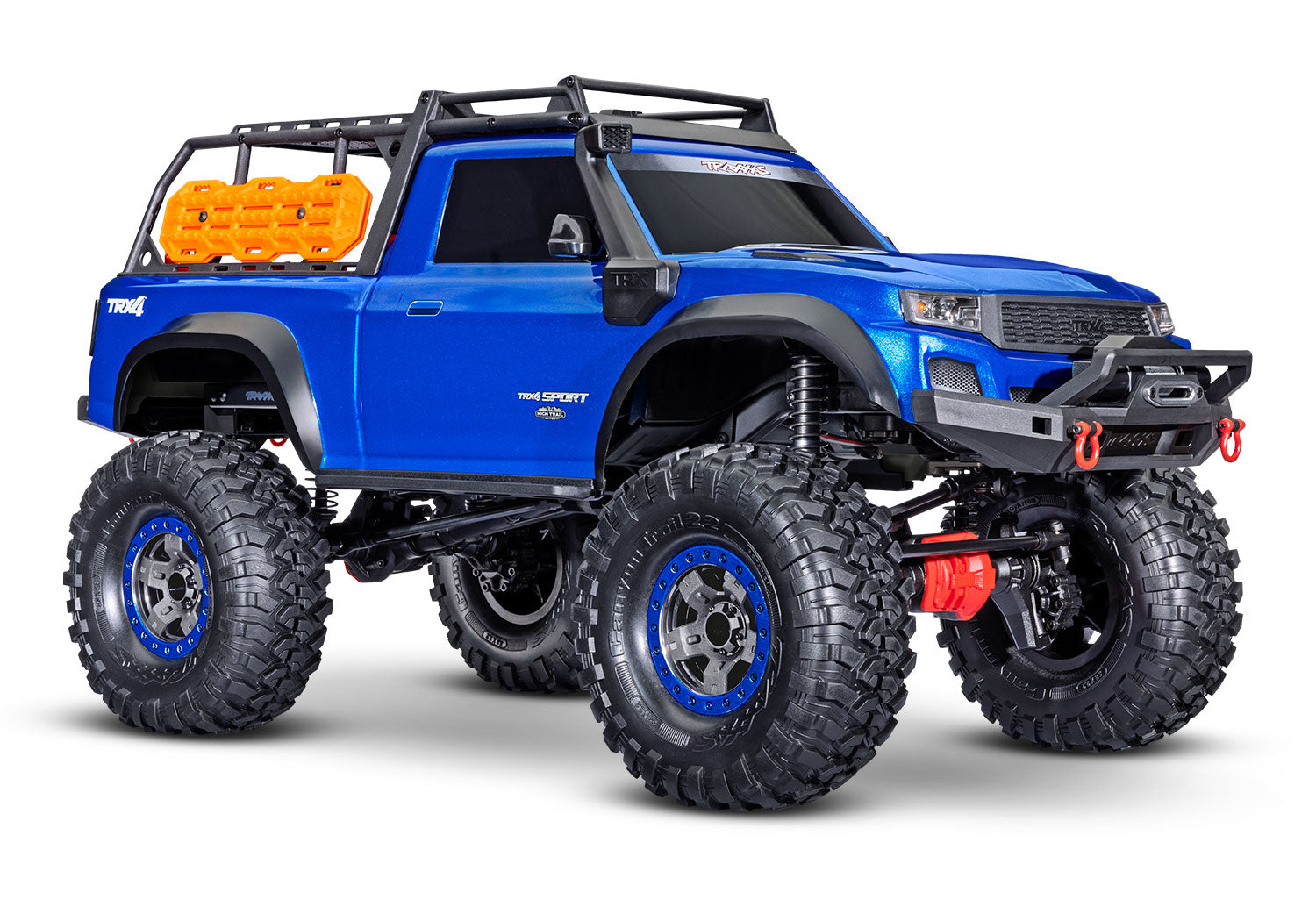

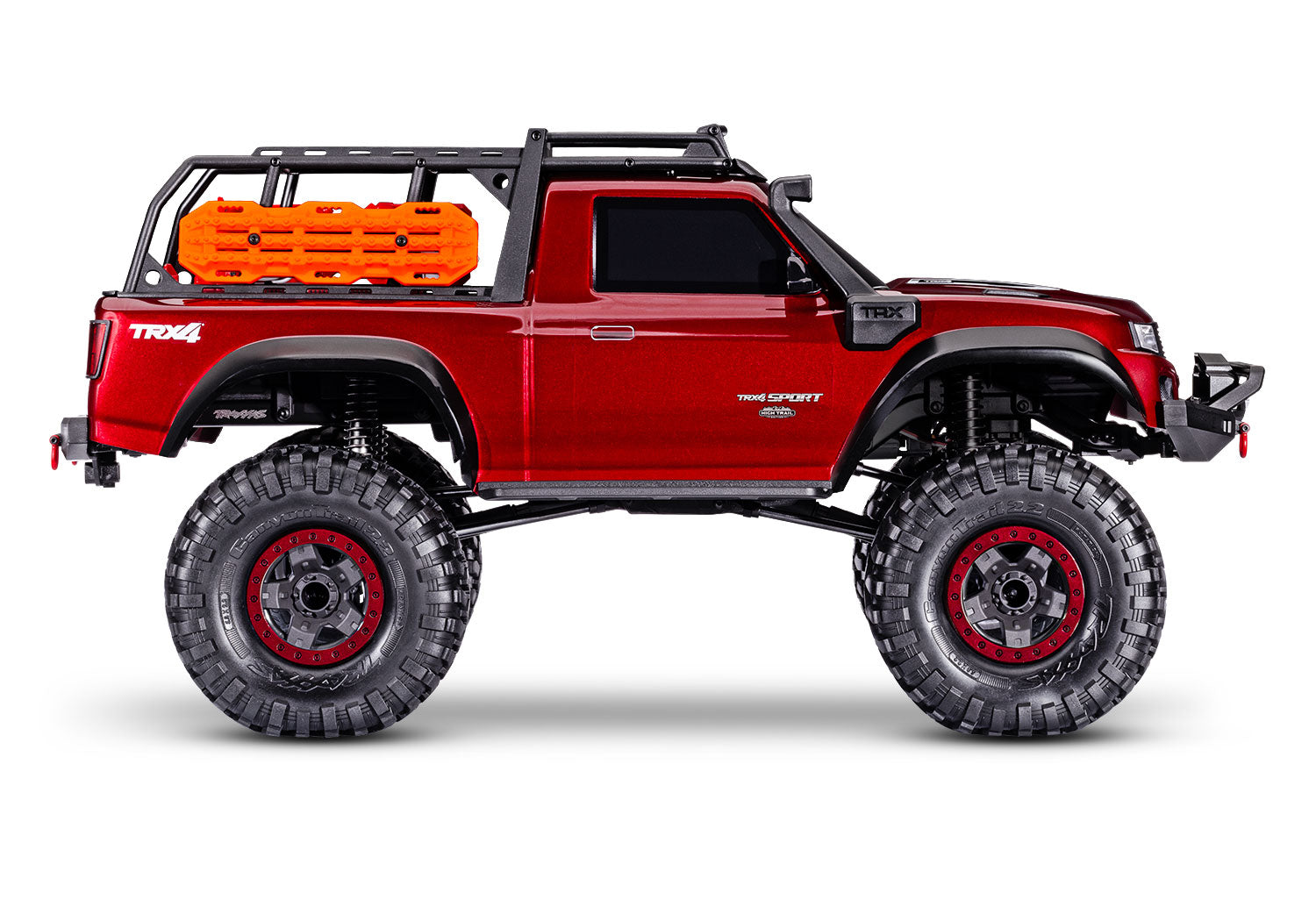

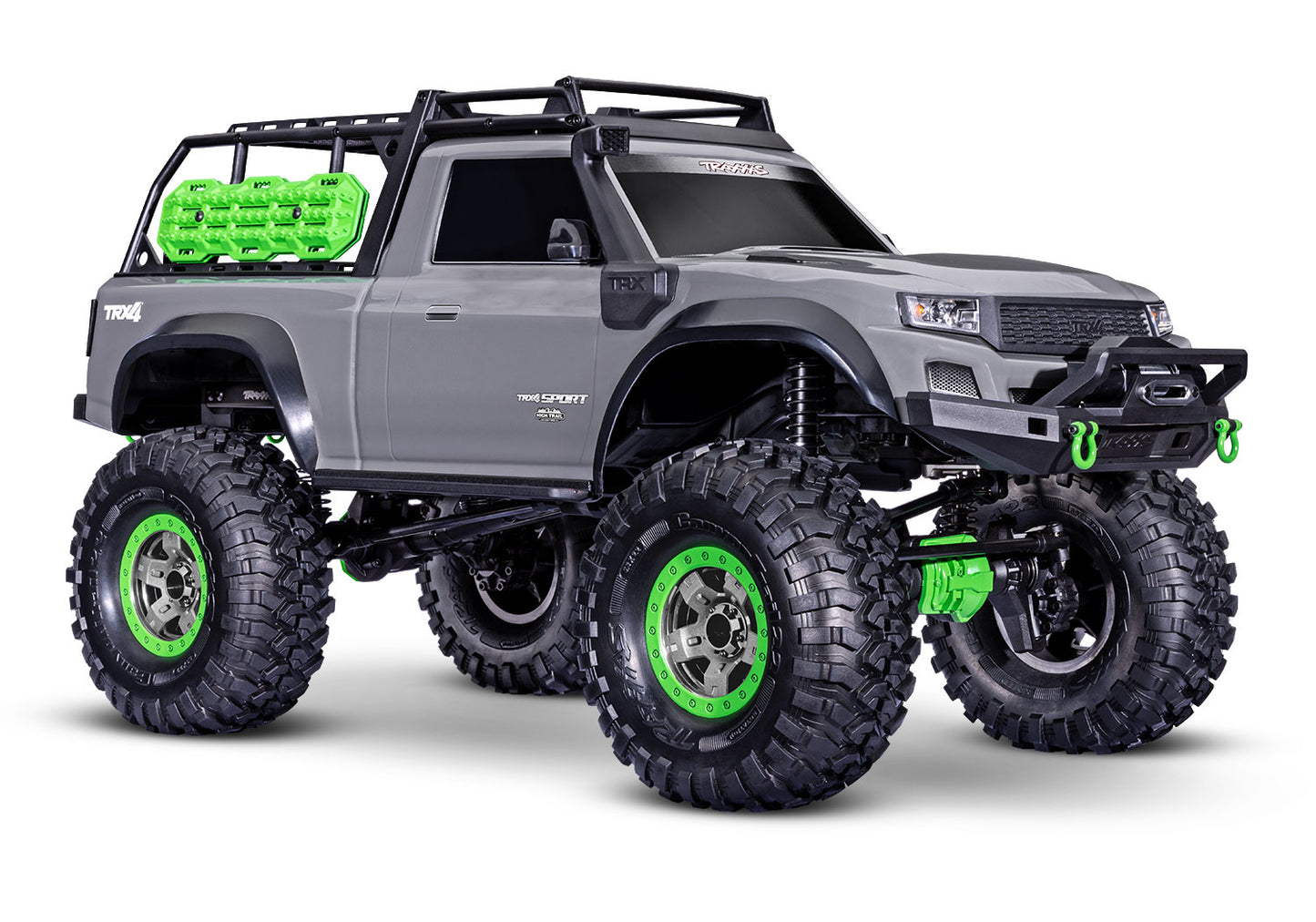

82044-4
TRX-4 Sport High Trail Edition
Spare Parts
- Color:
- Blue
TRX-4 Sport High Trail Edition
-
Tough, Lightweight Pickup Truck Body

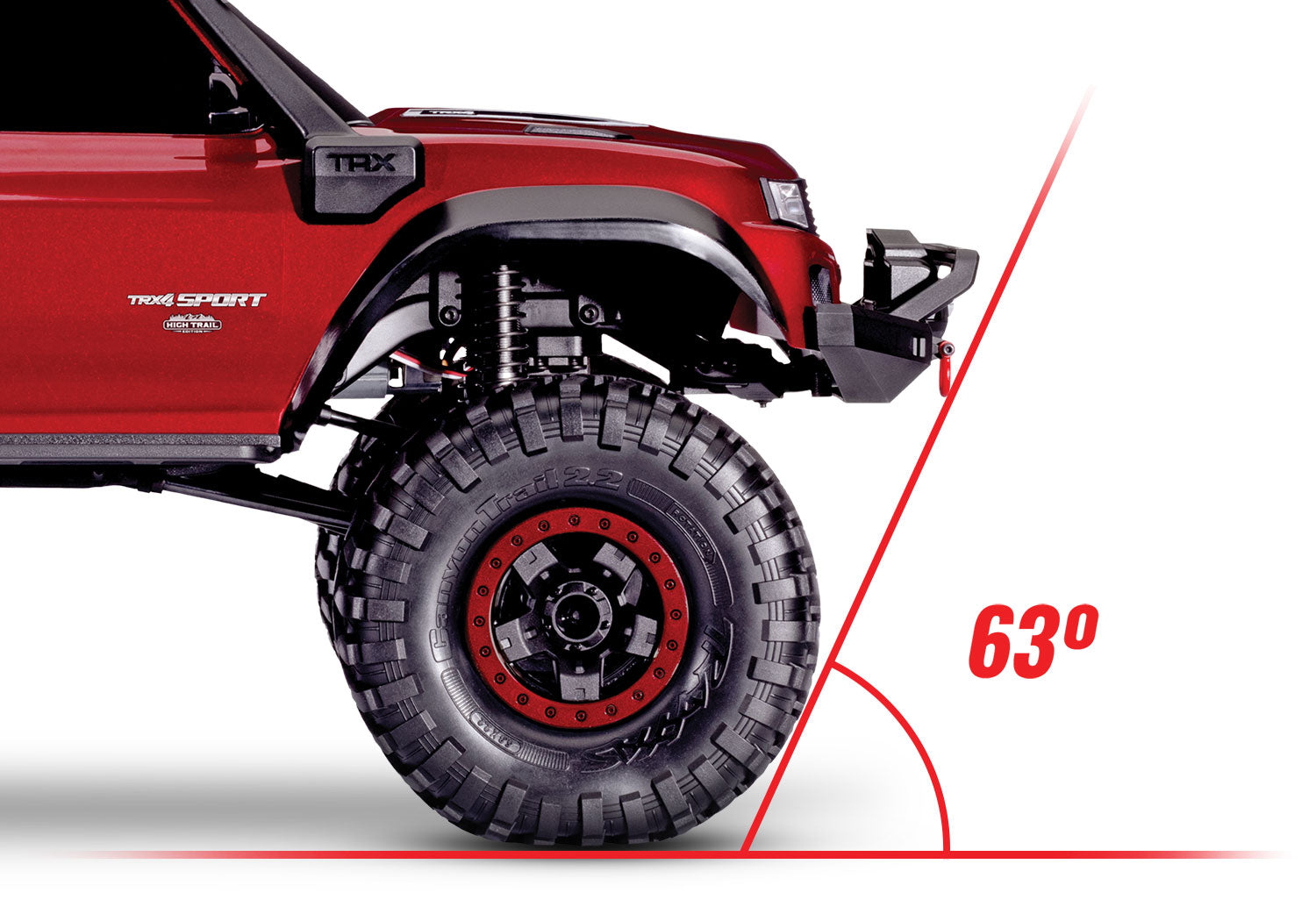

- High-angle bumpers for increased clearance
- Molded grille and tailgate
- LED-ready headlights, tail lights
- Full Nylon composite wheel wells and floor pans
-
Scale Accessories
- Rugged Expedition Rack with detailed accessories
- Injection-molded snorkel and side mirrors
-
Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
-
Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
-
Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
-
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
-
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
-
Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
-
Reinforced Steel Ladder Frame
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
-
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
-
Transmission
- Single-speed with steel gears
- Dual horizontal shafts

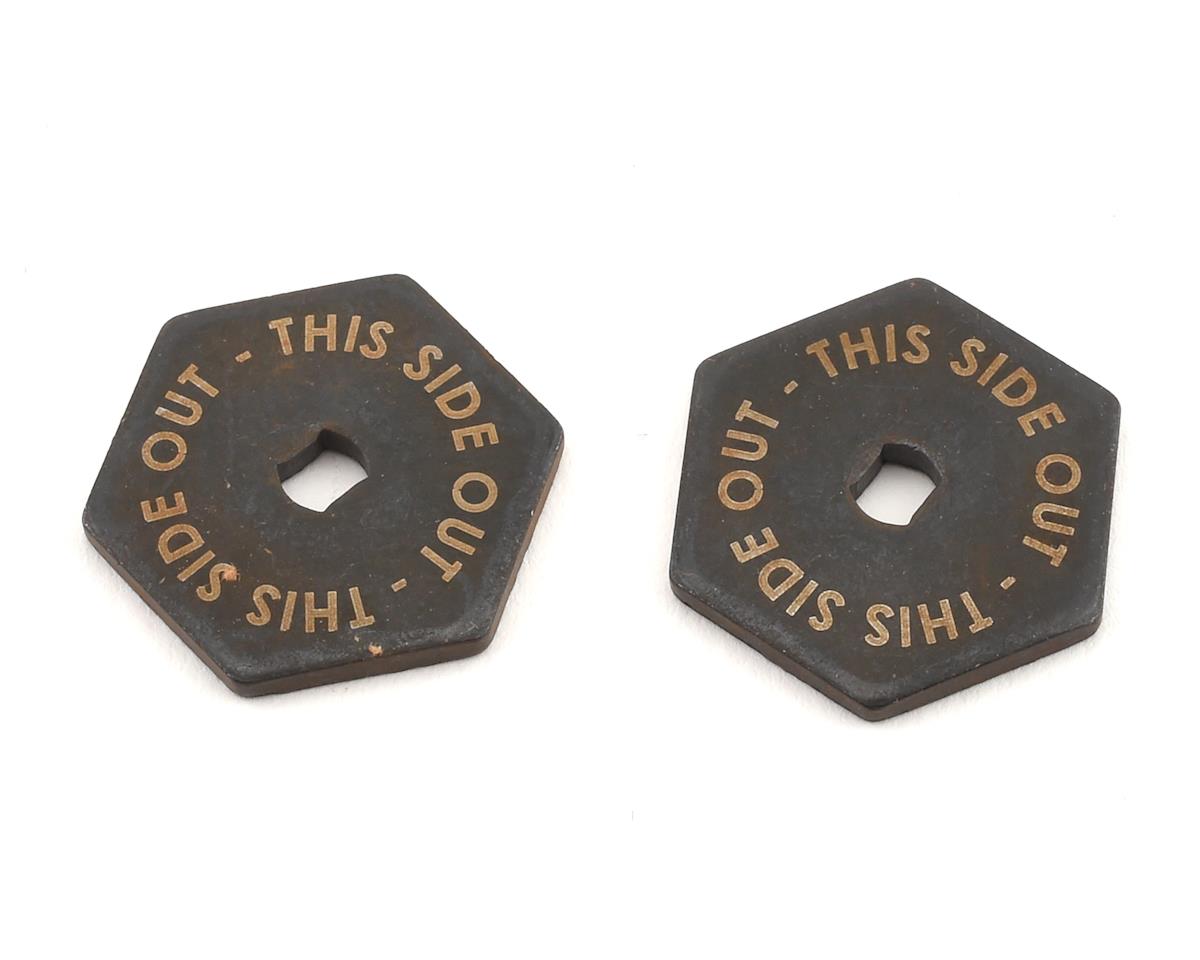

- Twin friction plate slipper clutch
- Easily removed for servicing
-
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
-
Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link

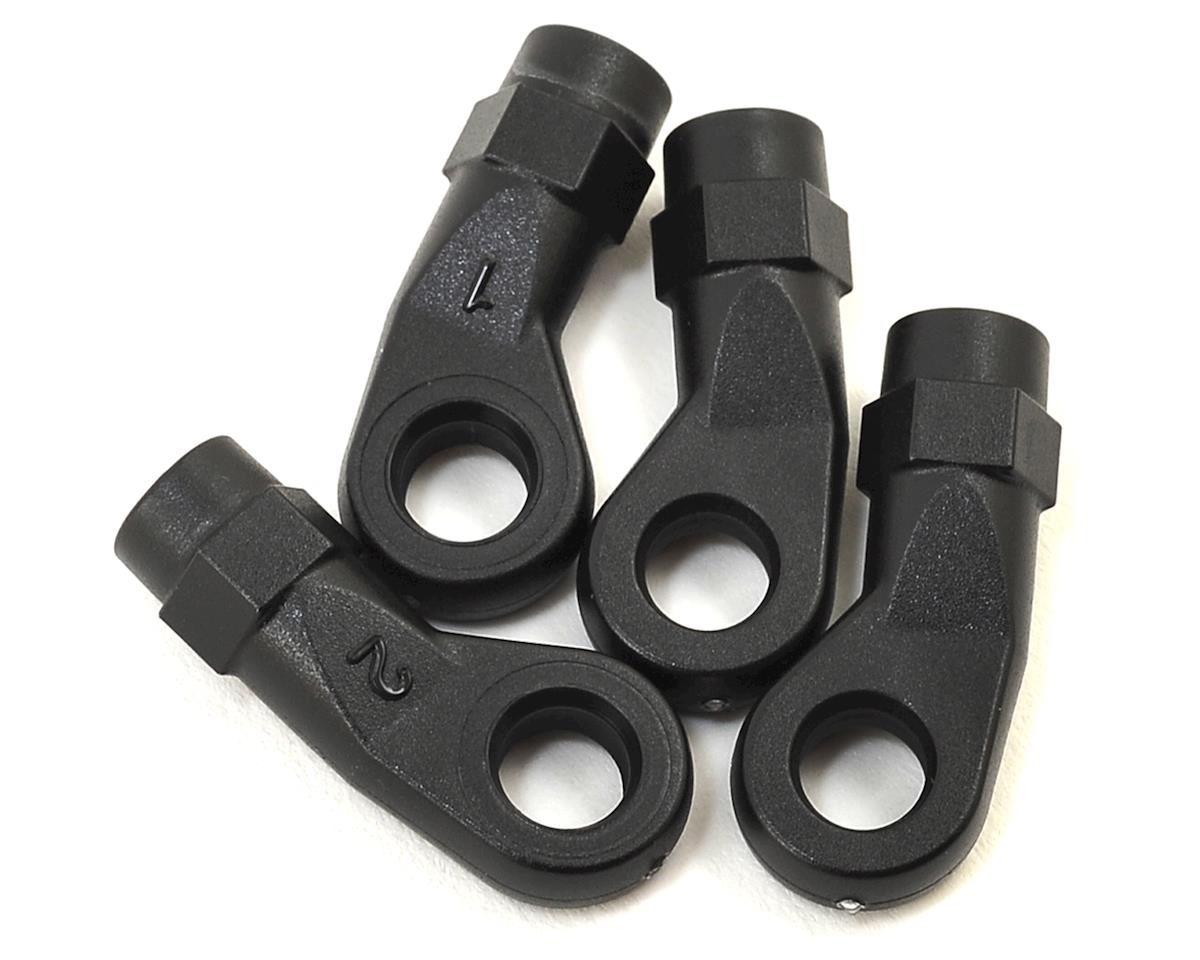

- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
-
Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
-

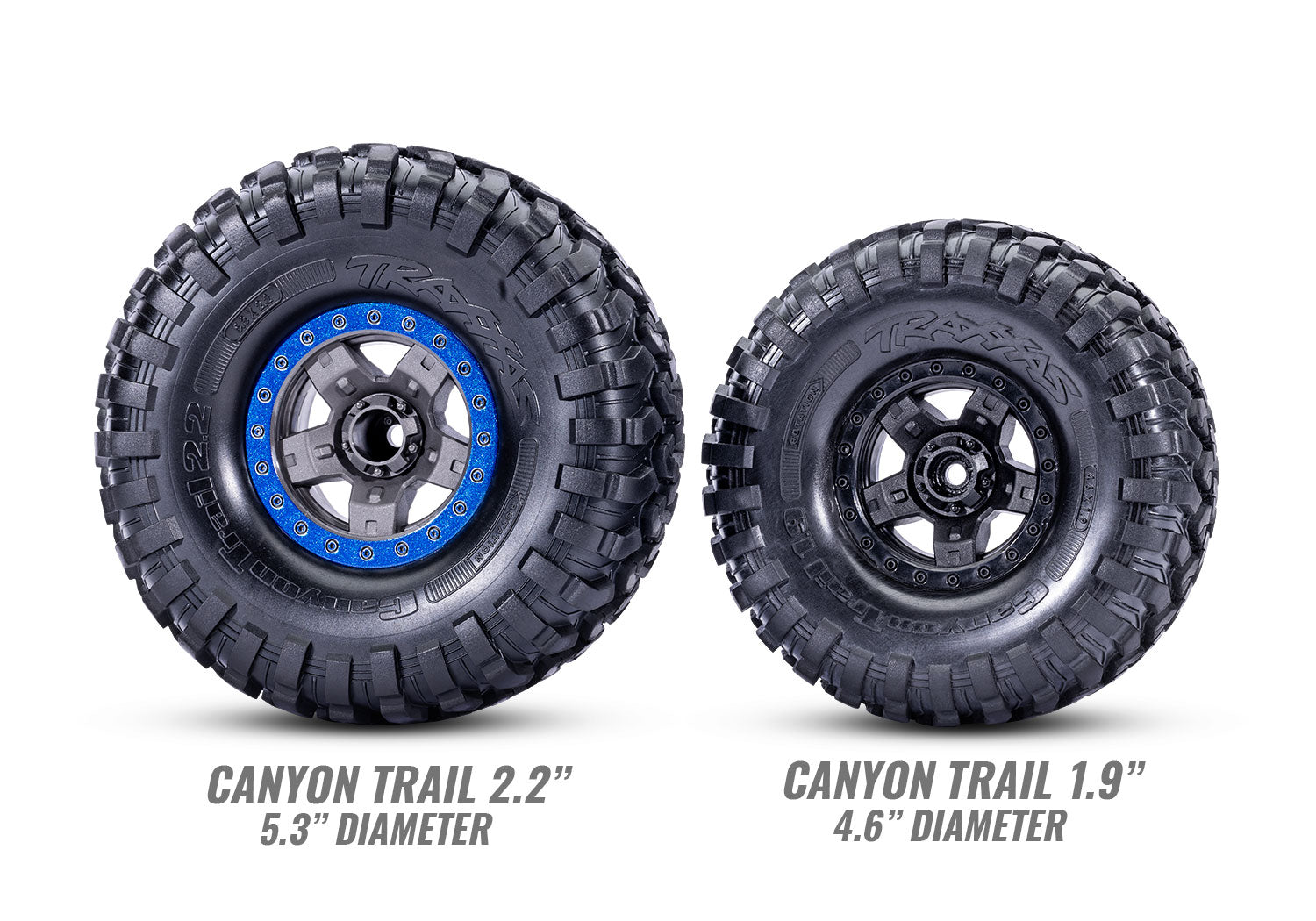

Oversize Wheels and Tires
- 2.2” 5-spoke wheels with replica beadlock rings
- Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
Model Specs
| Model Name: | TRX-4 Sport High Trail Edition |
|---|---|
| Model Type: | Trail / Crawler |
| Model Skill Level: | 1 |
| Chassis: | Steel ladder frame |
| Scale: | 1/10 |
| Weight: | 7.04 lb (3.20 kg) |
| Length: | 22 inches (564 mm) |
| Width: | 10.63 inches (270 mm) |
| Front Track: | 10.63 inches (270 mm) |
| Rear Track: | 10.63 inches (270 mm) |
Motor Specs
| Motor Name: | Titan® 550 21T reverse rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Motor Weight: | 390 g (13.76 oz) |
| Motor Length: | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length |
| Motor Diameter: | 1.532″ (39 mm diameter) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
ESC Specs
| ESC Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: | 2.6 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 14 gauge |
