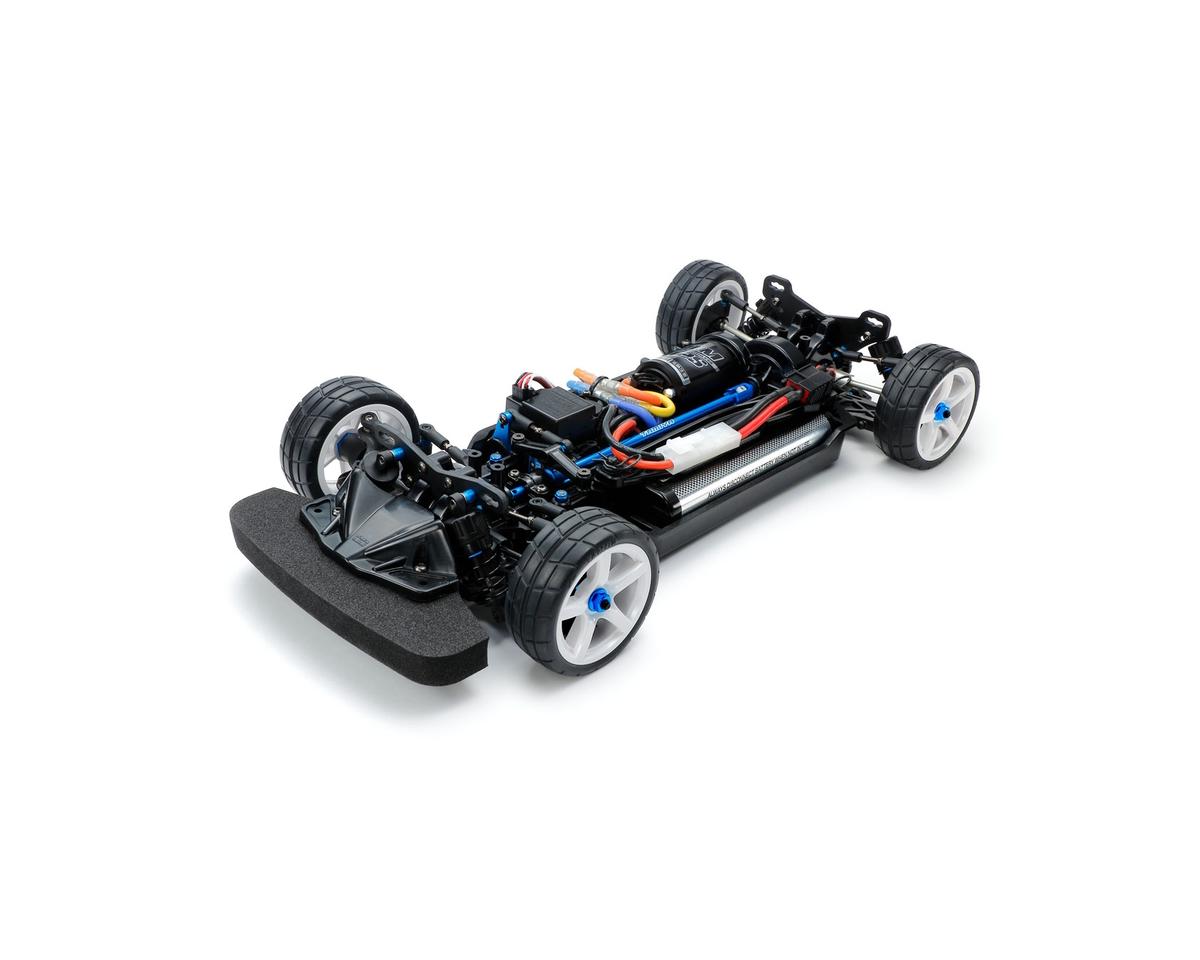

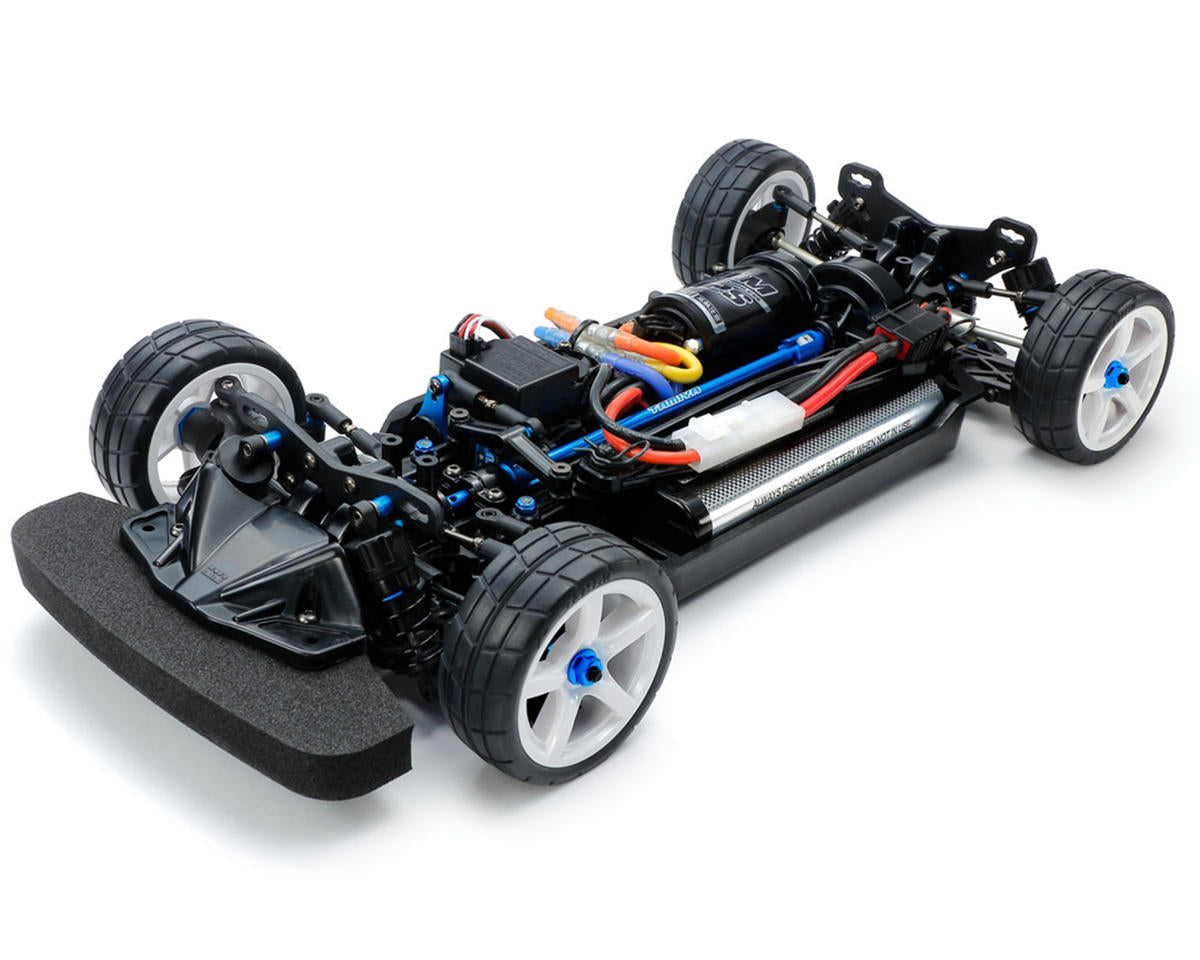

TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit

Tamiya TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit

This is the Tamiya TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit. An upgraded version of the TT-02 Type-S kit Series that comes loaded with Tamiya Hop-up parts, 37mm drive shafts, aluminum propeller shaft and lightweight aluminum joint cups to reduce 7.8g of the weight, making this kit a capable performer out of the box and a great option to start racing!

Note: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• Included Tamiya Hop-Up options:
  • 37mm Drive shafts for double Cardan joint shafts
  • Carbon fiber damper stays
  • XV-02/TT-02 oil gear differential unit
  • XV-02/TT-02 (39T) front direct coupling set
  • 06 Module (27T) hard-coated aluminum pinion gear
  • TRF419 Suspension upgrade set
  • Aluminum propeller shaft
  • (68T) High speed gear set
  • 5mm Thick clamp type blue aluminum wheel hex
  • TRF damper oil seal
  • Cross joints for low friction assembly universal shafts
  • Short ball connector nuts for TRF dampers
  • Blue 4mm aluminum serrated wheel nut
• Universal drive shafts to maintain a stable drivetrain regardless of suspension stroke
• Full ball bearings
• Independent double wishbone suspension
• Front direct spool ensures ease of assembly and stable drivability

Specifications:

• Scale: 1/10
• Chassis Type: TT-02
• Suspension: Independent double wishbone
• Suitable Terrain: On-Road
• Drivetrain: 4WD Shaft Driven

Includes:

• (1) Tamiya TT-02 Type-SRX 1/10 4WD Electric Touring Car Kit
• (1) Carrying case dedicated for the TT-02 Type-SRX chassis

Needed to Complete:

• (1) 2-channel Transmitter/Radio
• (1) Steering Servo
• (1) 1/10 Electronic Speed Controller
• (1) 540 motor,
• (1) 7.2 - 7.4V battery
• Compatible charger
• 257mm Polycarbonate body
• Polycarbonate paint for body
• Tires
