Traxxas

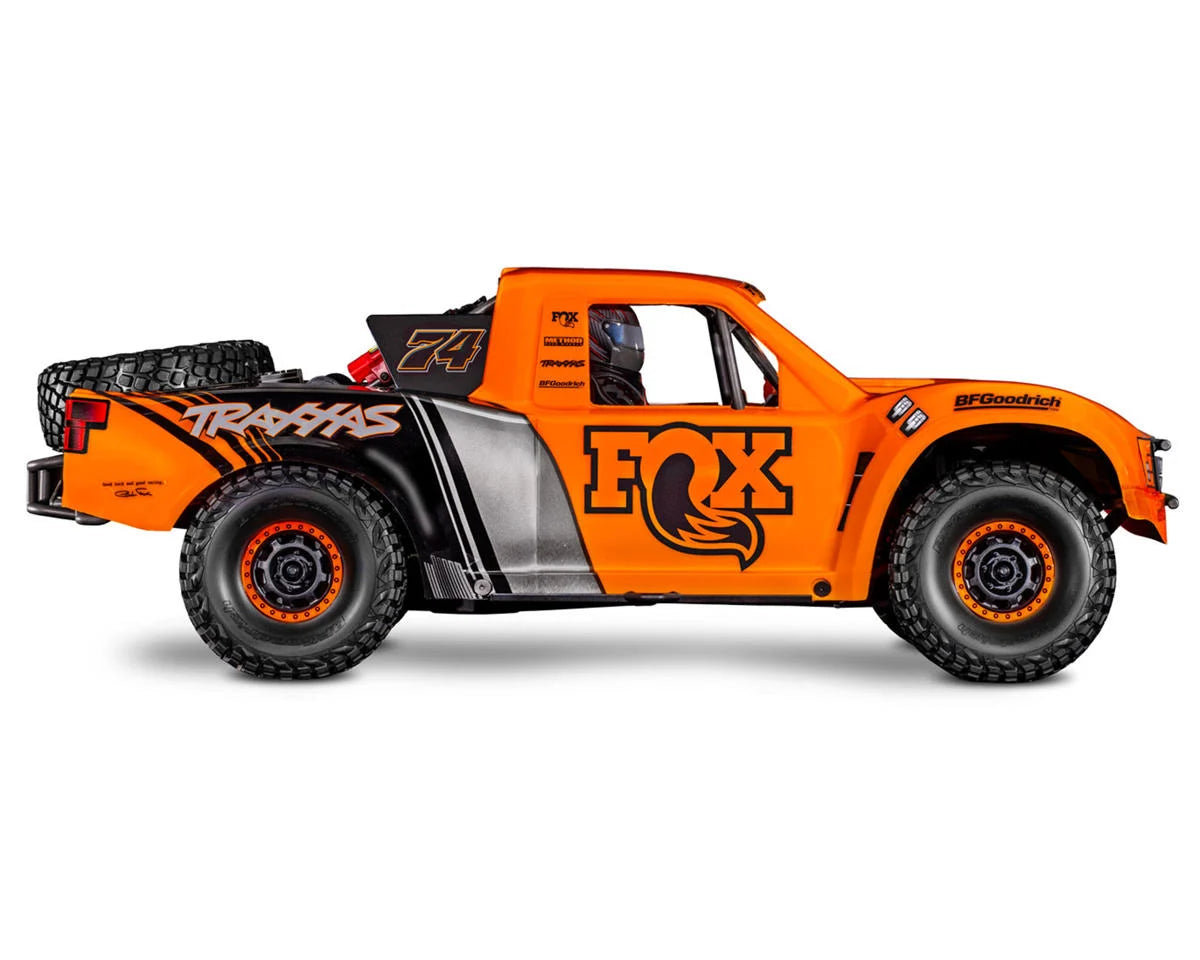

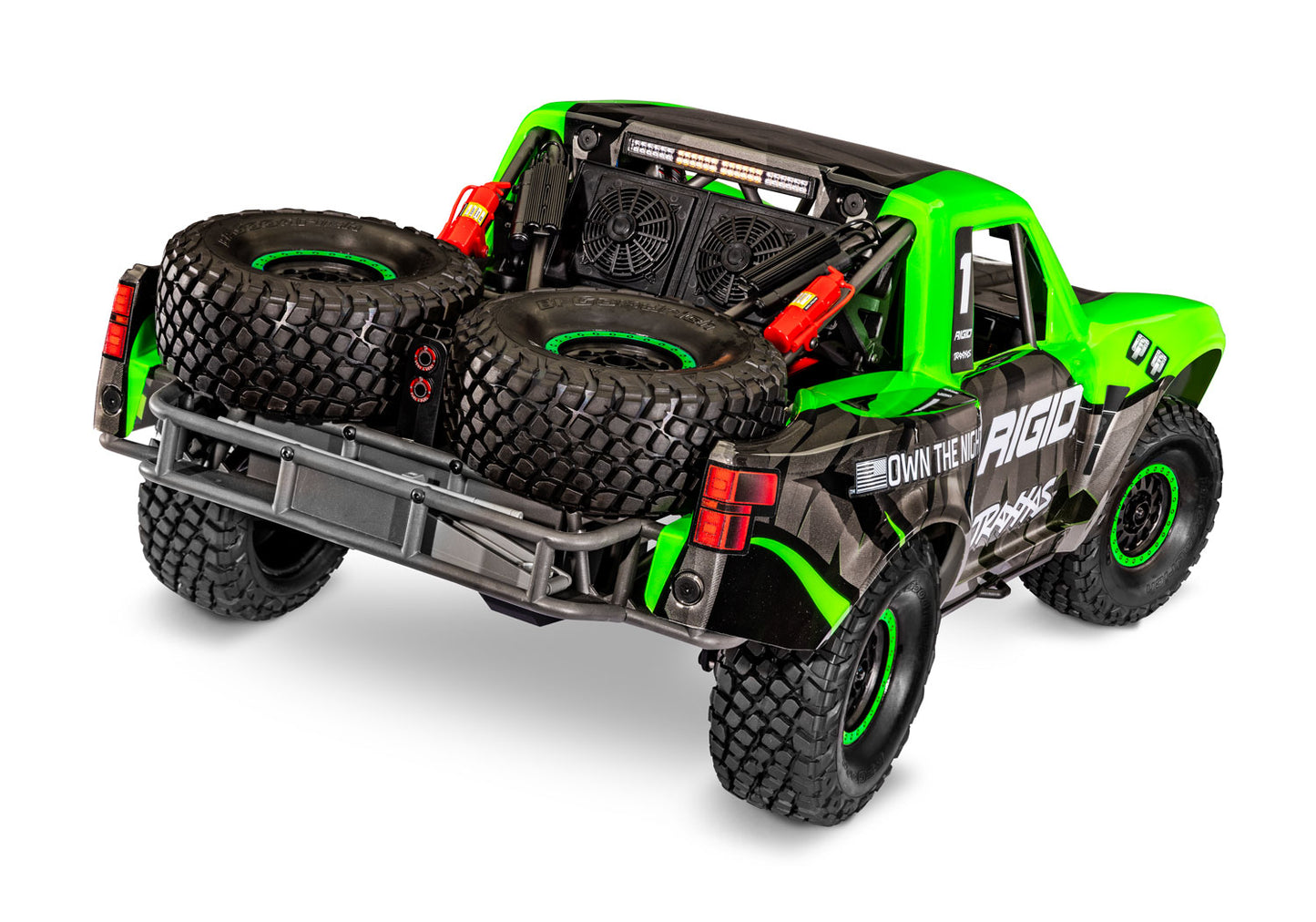

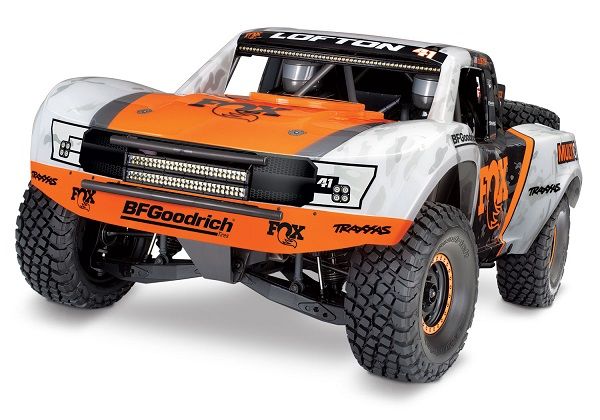

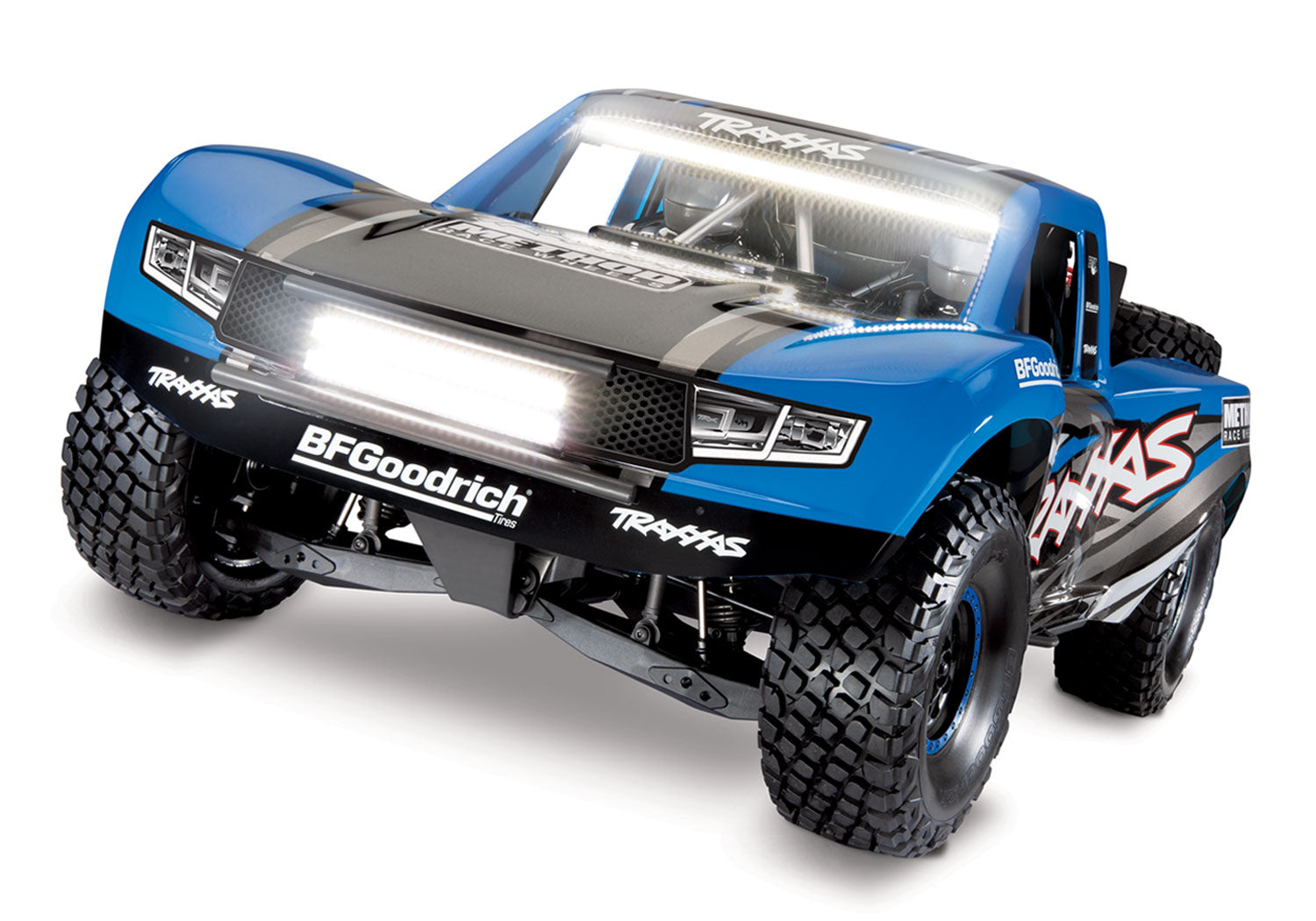

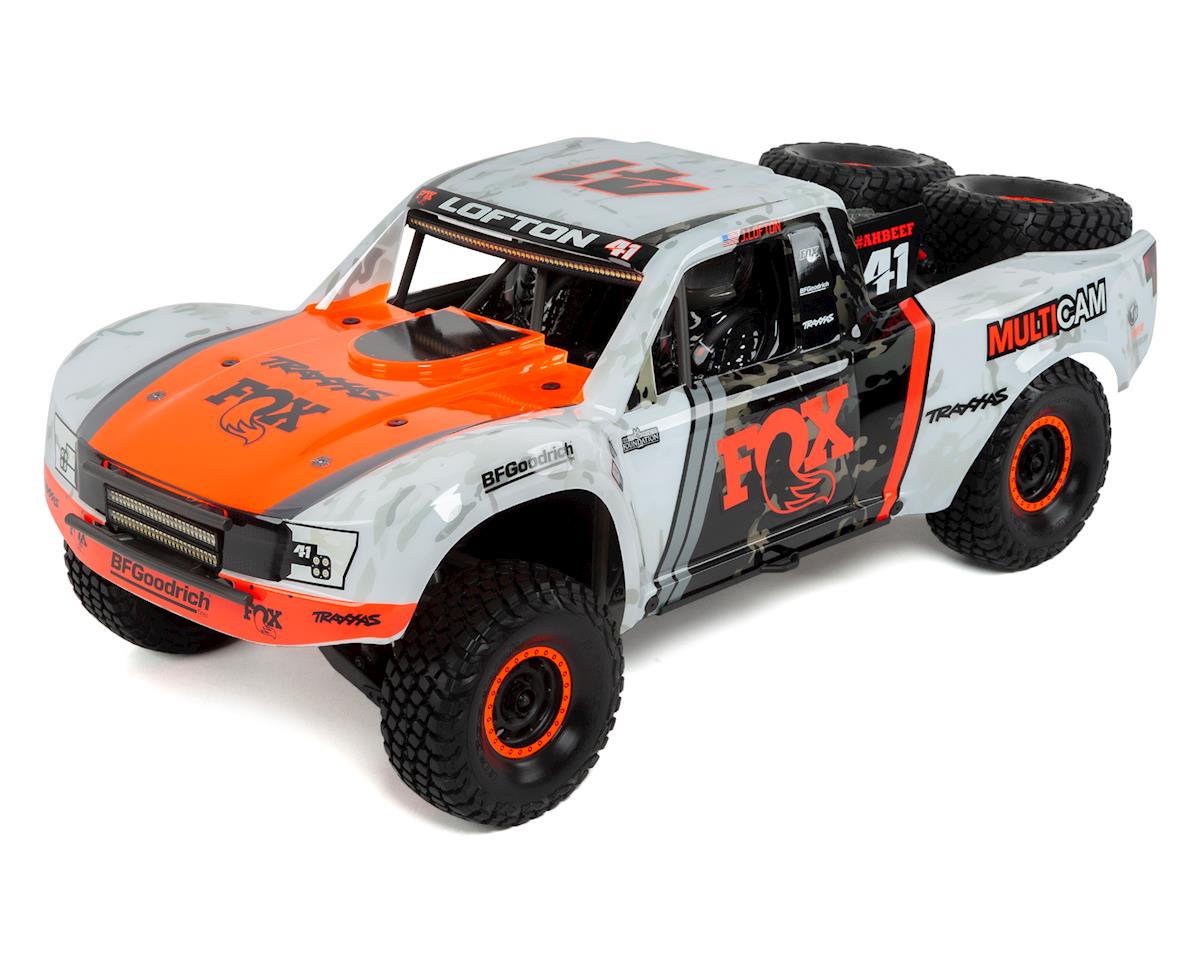

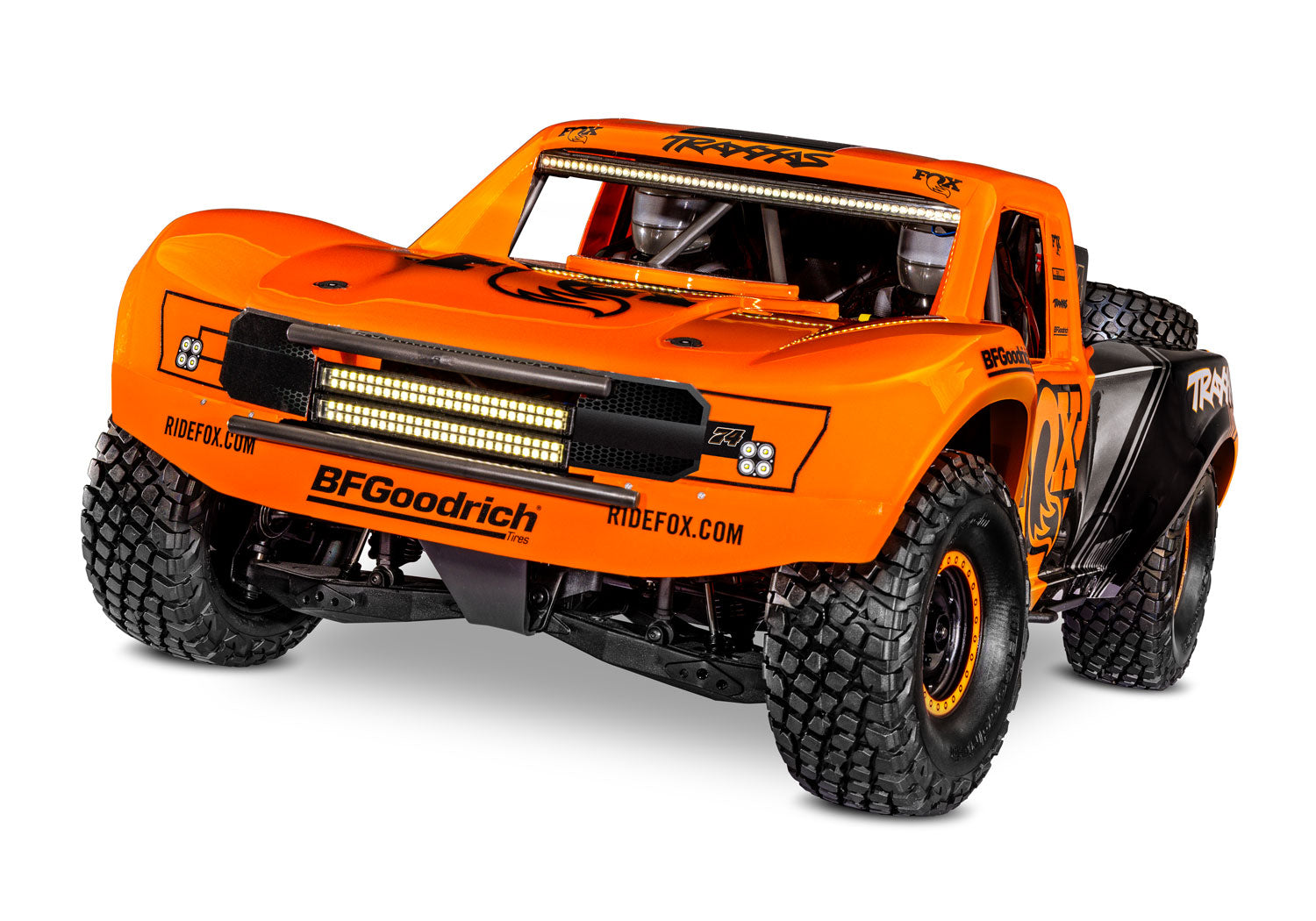

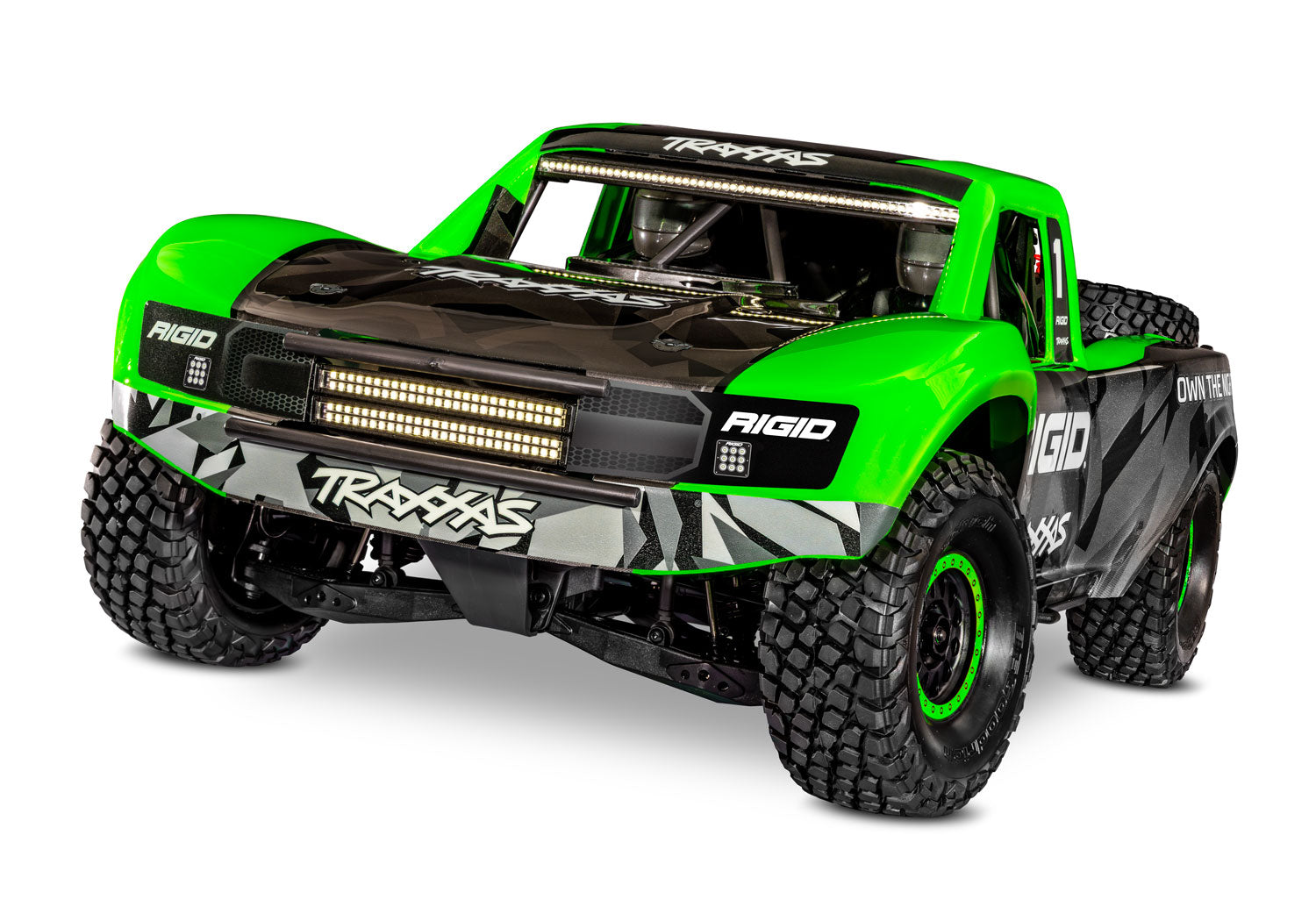

UNLIMITED DESERT RACER PRO SCALE - 1/7 SCALE

$799.95 USD

Sale Sold out

Shipping calculated at checkout.

You might also need...

$79.95 3S LIPO 5000MAH 11.1V 25C (addon details...)

Color Orange Green

Product variants

SKU:85086-4-RGD1

Quantity

MODEL SPECS

Model Name:	Unlimited Desert Racer
Model Type:	Desert race truck
Model Speed:	30+ mph (with 4s LiPo), 50+ mph (with 6s LiPo)
Model Skill Level:	5
Scale:	Pro-Scale^®
Weight:	13.4 pounds (6.1 kg)
Length:	27.32 inches (694 mm)
Width:	13.57 inches (345 mm)
Front Track:	13.57 inches (345 mm)
Rear Track:	13.57 inches (345 mm)
Height:	10.29 inches (261 mm)

Wheelbase:	16.53 inches (420 mm)
Center Ground Clearance:	2.27 inches (58 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Direct-drive with Torque-Biasing Center Drive
Differential Type:	Sealed, 4-gear (front), locked spool (rear), Sealed, 4-gear (1M weight oil) (center)
Gear Ratio (Internal):	17.89:1
Gear Pitch:	32 pitch
Servo(s):	2075R metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver
Battery Compartment Specs:	181 mm X 46 mm X 56 mm

MOTOR SPECS

Motor Type:	2200 Kv Sensorless brushless
Motor Weight:	14.32 ounces (406 g)
Motor Length:	2.97 inches (76 mm)
Motor Diameter:	1.65 inches (42 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	6.5 mm bullet

ESC SPECS

ESC Name:	Velineon VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.30 ounces (207 g)
Motor Connectors:	6.5 mm bullet

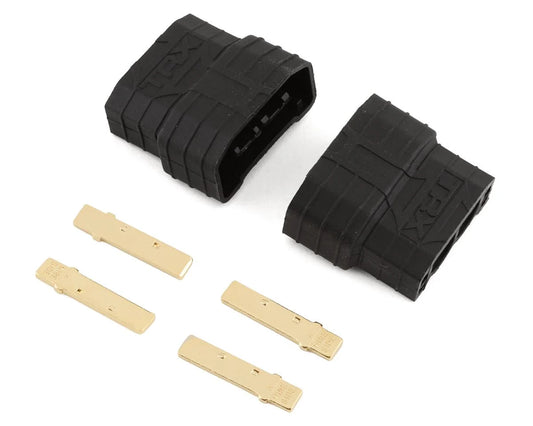

Battery Connectors:	Traxxas High Current Connector

Large Pro Scale^® Body with Highly Detailed Replica Parts

Heavy-duty truck body mounts to chassis in multiple locations
Strong and functional tube frame mimics full-size off-road racers
Detailed interior cabin with driver figures
Replica brake calipers and discs with integrated 17 mm wheel hubs
Two fully functional spare tires and functional spare driveshaft
Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
Realistic side plates mount to tube frame

VXL-6s™ Waterproof Electronic Speed Control

6s LiPo compatible
Integrated cooling fan
Real-time telemetry via Traxxas Link™
Machined heat sink
3-LED status indicators
Powered accessory ports
10-gauge silicone wire

Velineon^® Brushless Motor

4-pole 2200 Kv brushless motor
5 mm output shaft
Finned can for better heat dissipation

Traxxas Stability Management^® (TSM)

Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter

Factory Installed LED light kit

Dual bumper-mounted light bars (52 LEDs each)
Curved roof light bar (52 LEDs)

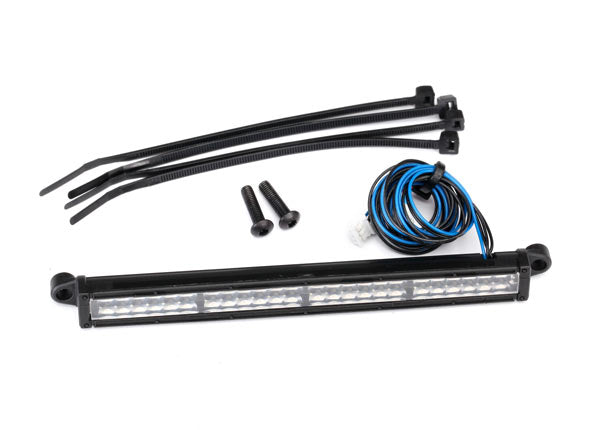

Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
High-voltage 8-channel power amplifier
Regulated output for stable lighting performance

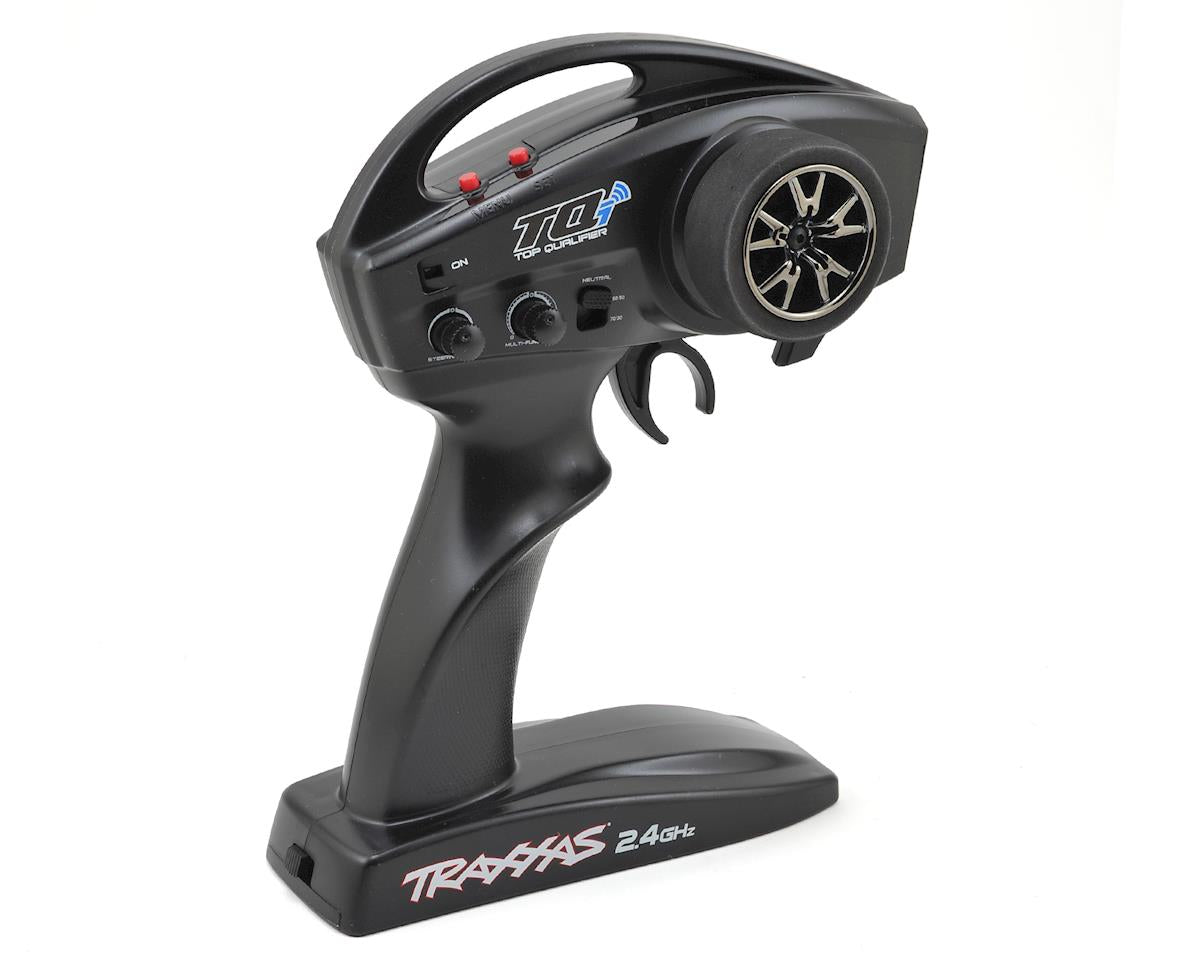

TQi™ 2.4 GHz Radio System

2-channel transmitter
5-channel micro receiver (6533) with fail-safe and integrated telemetry ports
Compatible with optional TQi Traxxas Link Wireless Module (6511, sold separately) to access full Traxxas Link app functionality
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
Patented waterproof receiver box with easy-access plug

Chassis

Composite inverted tub design

Makes maintenance easier
Lowers center of gravity (CG) for improved handling
Allows easy access to components

Tough skid plates protect critical components

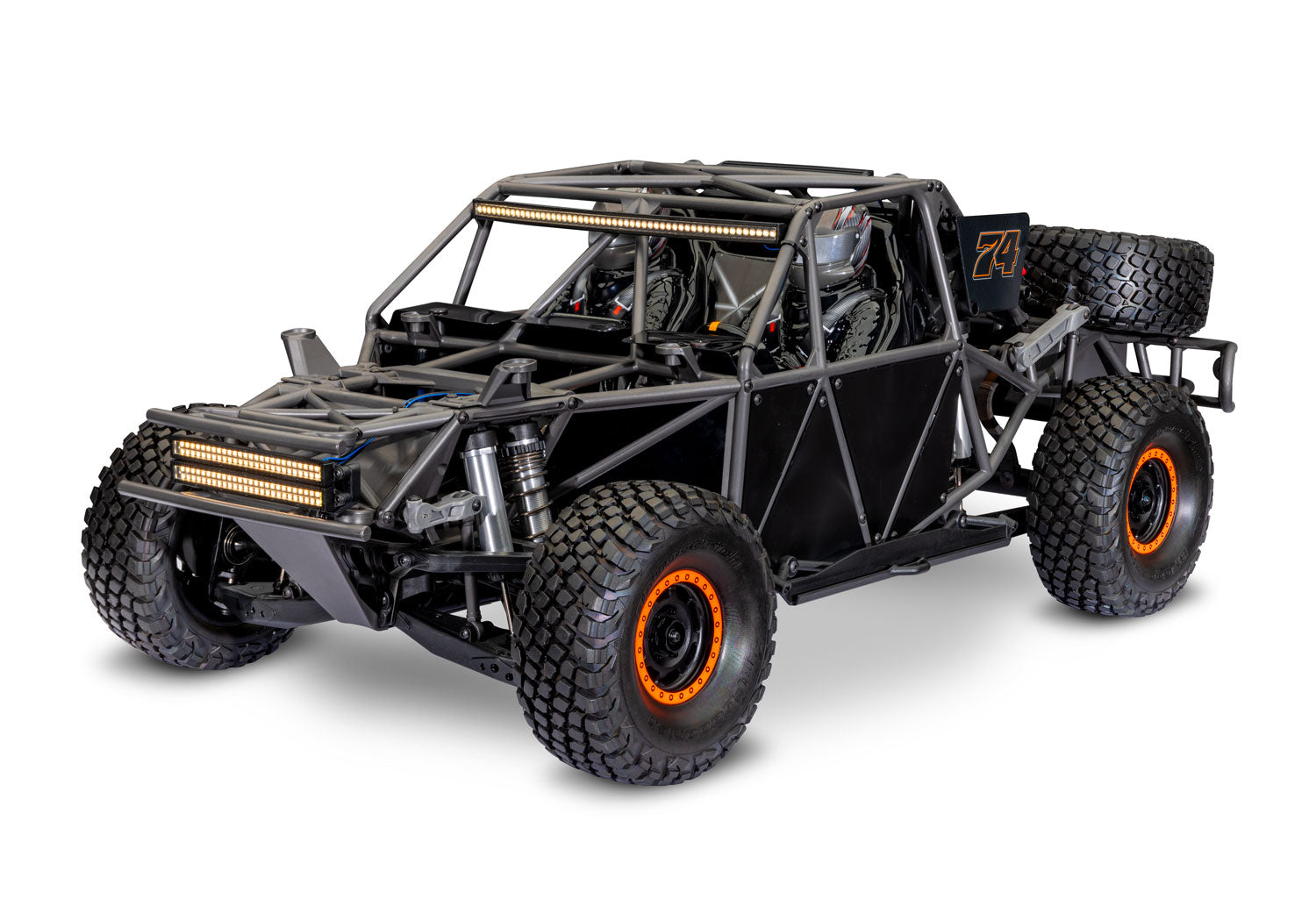

Fully integrated tube frame for scale appearance and added rigidity
Reinforced bumpers to absorb impacts
ESC battery plugs hard mounted to chassis

Innovative Battery Compartment

Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
Opens from underneath without removing body
Fixed oversize battery strap locks batteries securely into place
Separate skid plate to protect batteries

Transmission

All-steel gear direct drive transmission

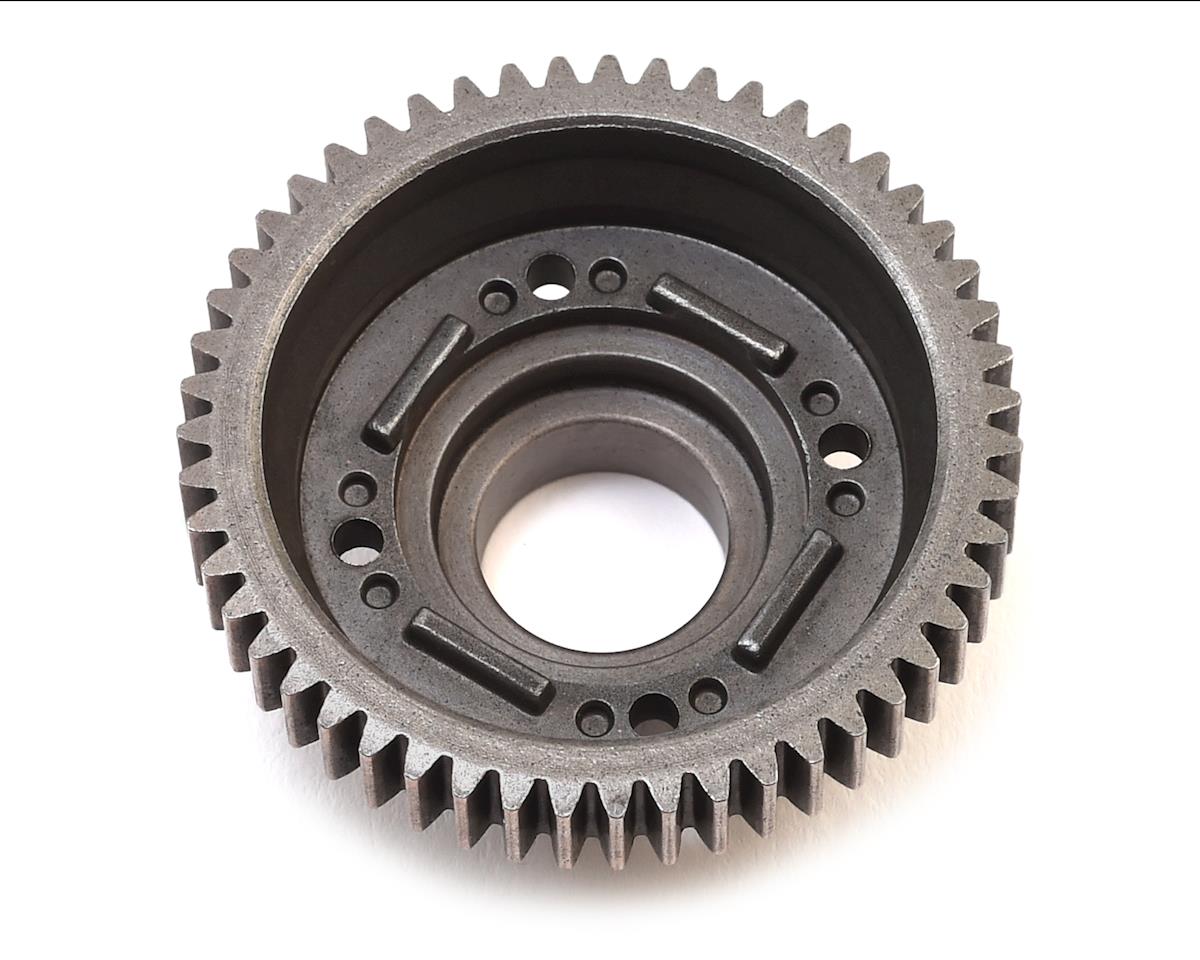

Torque-Biasing Center Drive™
Removes as a single piece for easy maintenance
Fixed-pin gear mesh system

Drivetrain

Steel CV driveshafts (front) with 6 mm stub axles
Steel straight axle (rear)
Oil-filled limited slip front differential
Locked steel spool (rear)

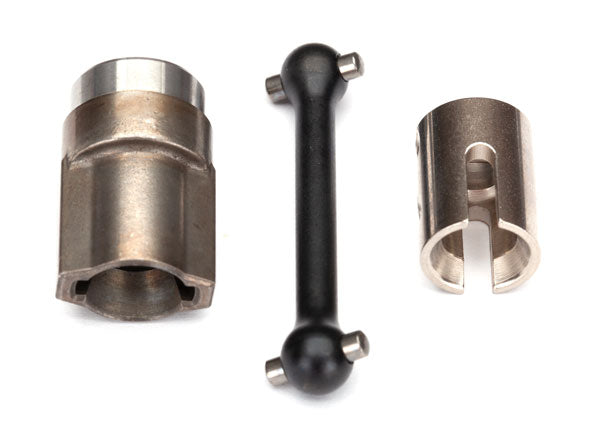

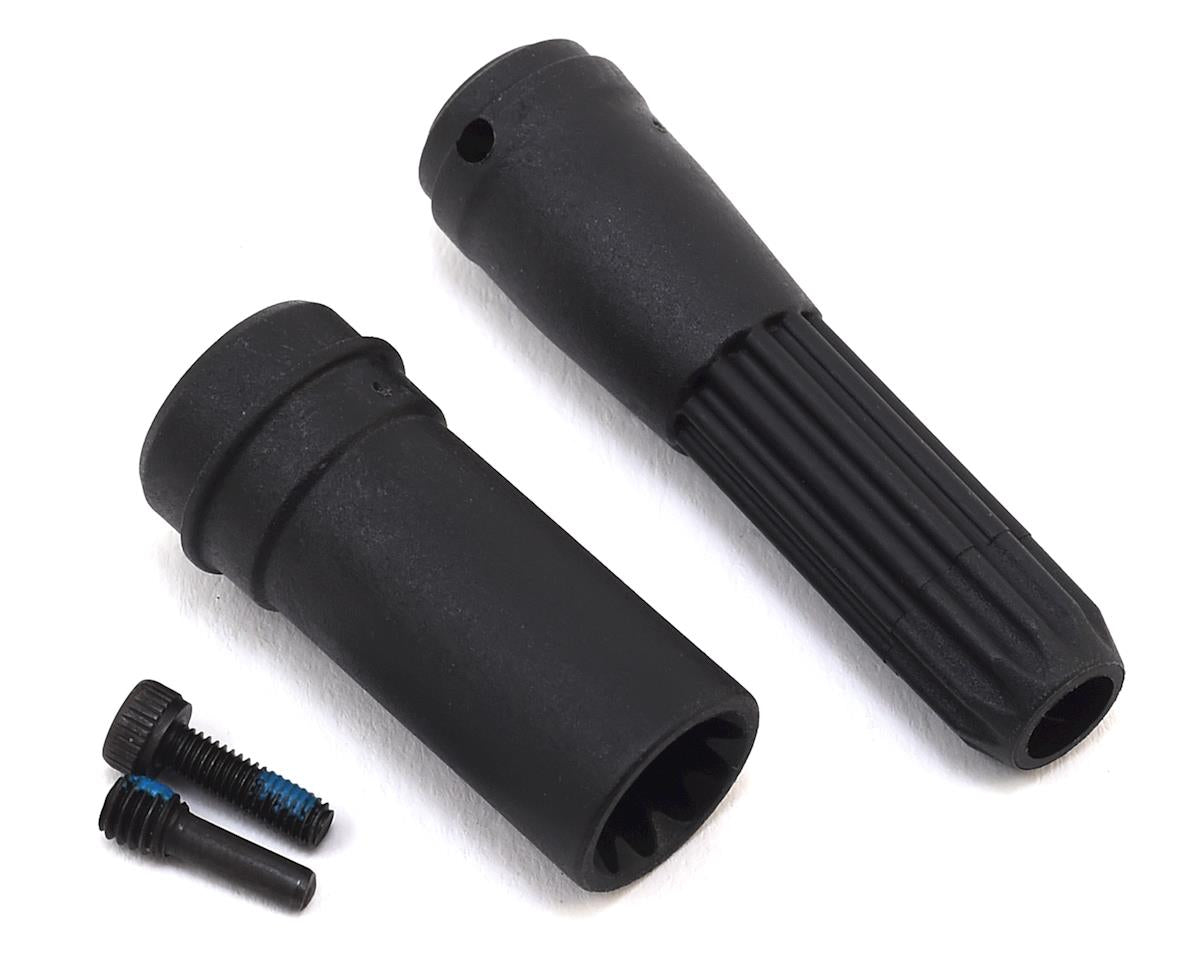

Heavy-duty splined front driveshaft
Fixed-length steel rear driveshaft

Steering

Chassis mounted 2075R metal-gear servo
Dual-bellcrank design with bearings and integrated servo saver
Solid non-adjustable steering links for rugged durability

Suspension

Provides scale looks and authentic off-road driving dynamics

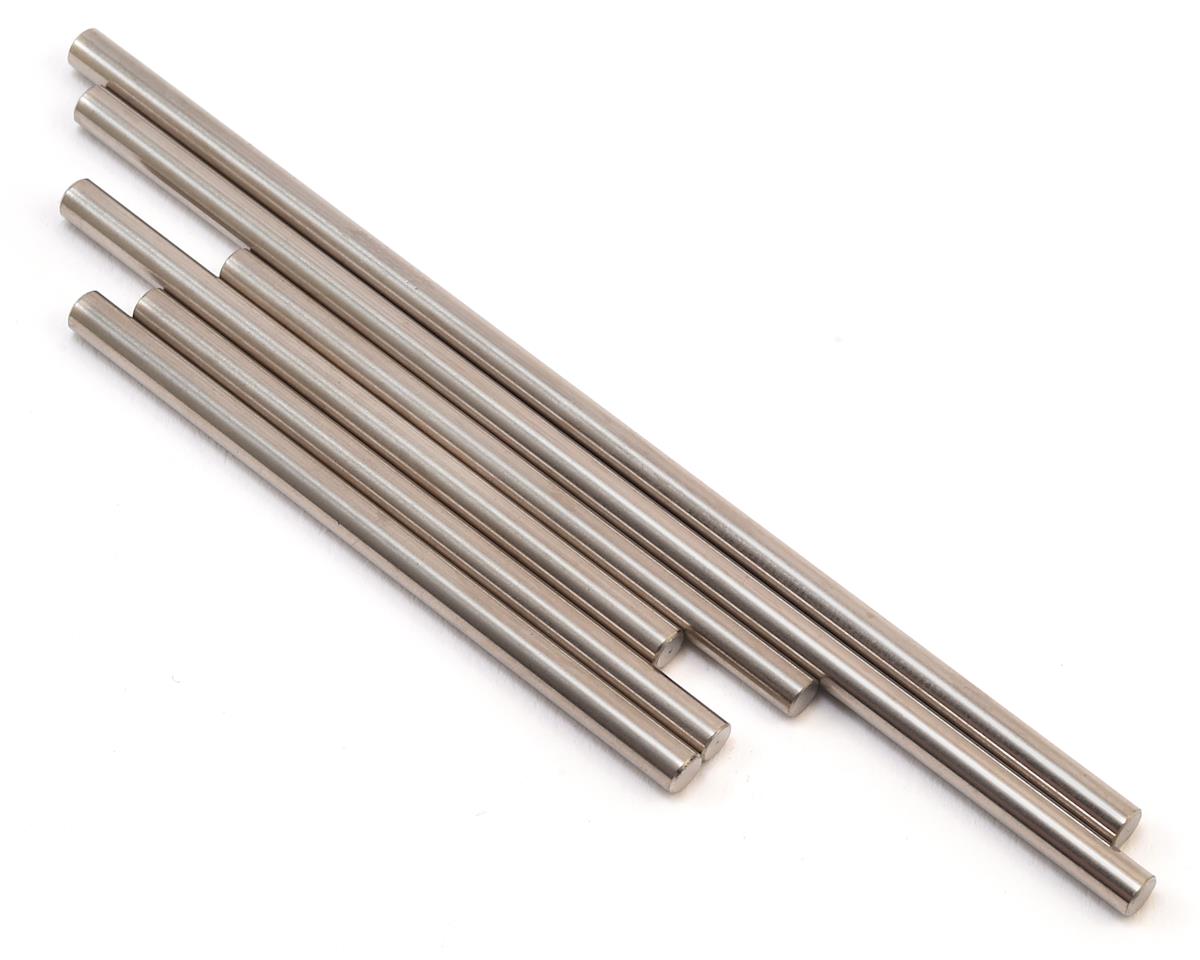

Tough independent double-wishbone front suspension with captured rod ends
Triangulated 4-link rear suspension with solid rear axle

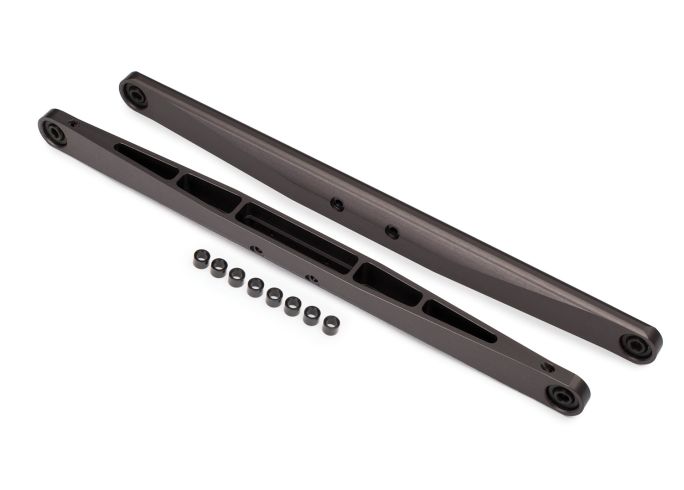

Tough composite trailing arms

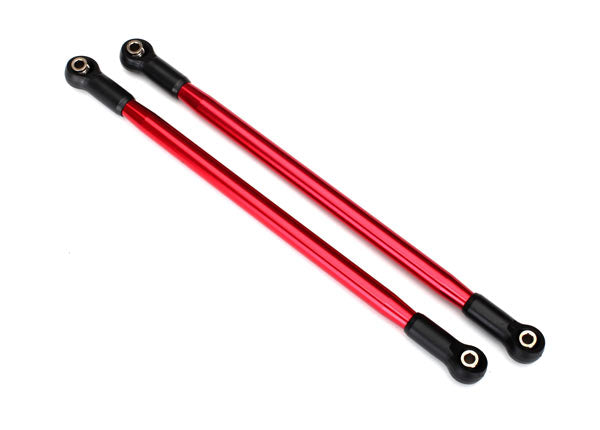

Steel upper links with 3 optional positions for suspension tuning

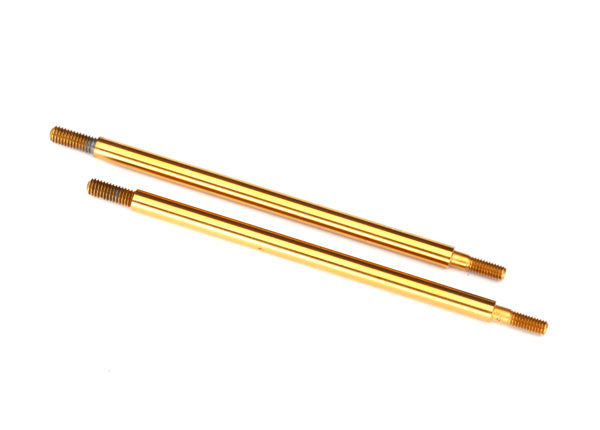

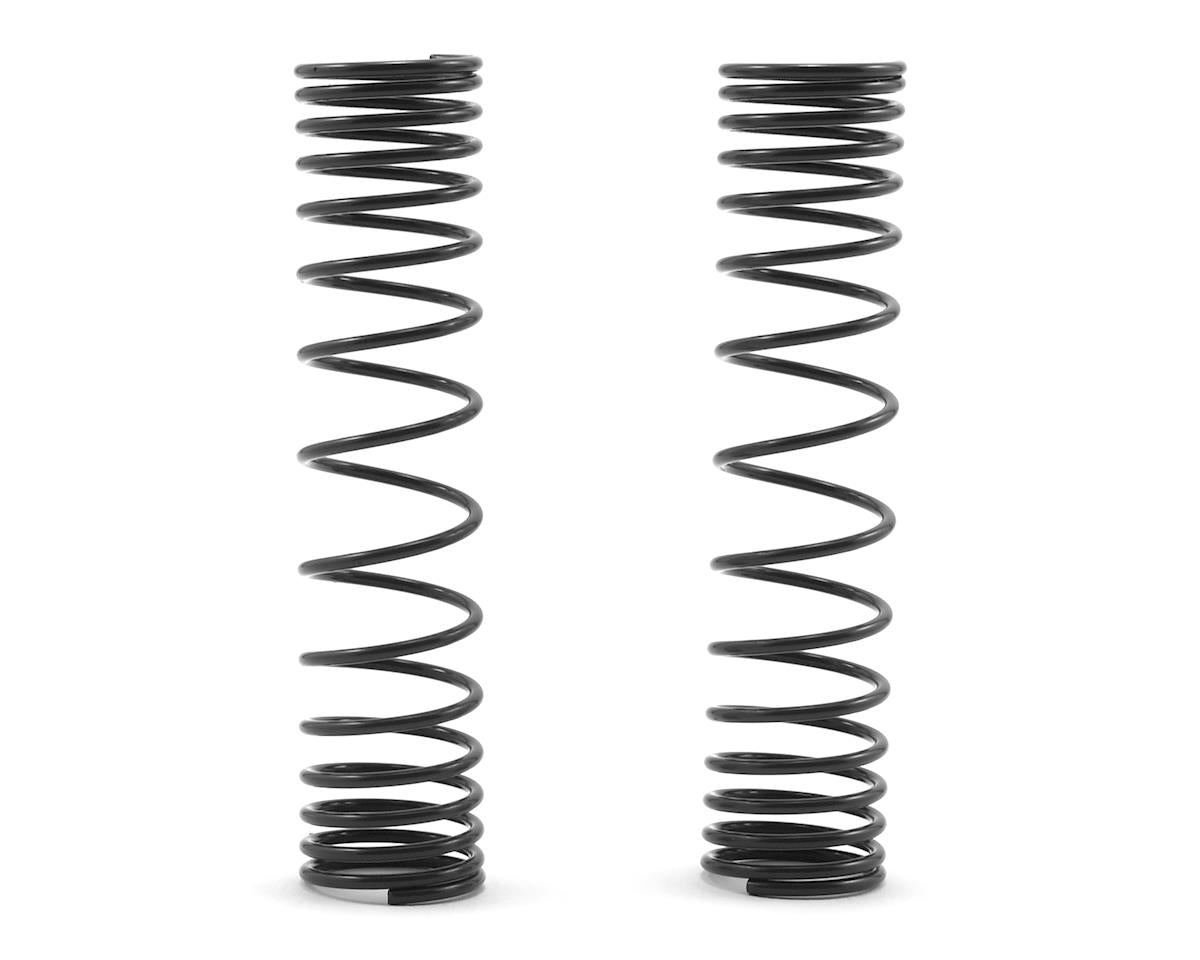

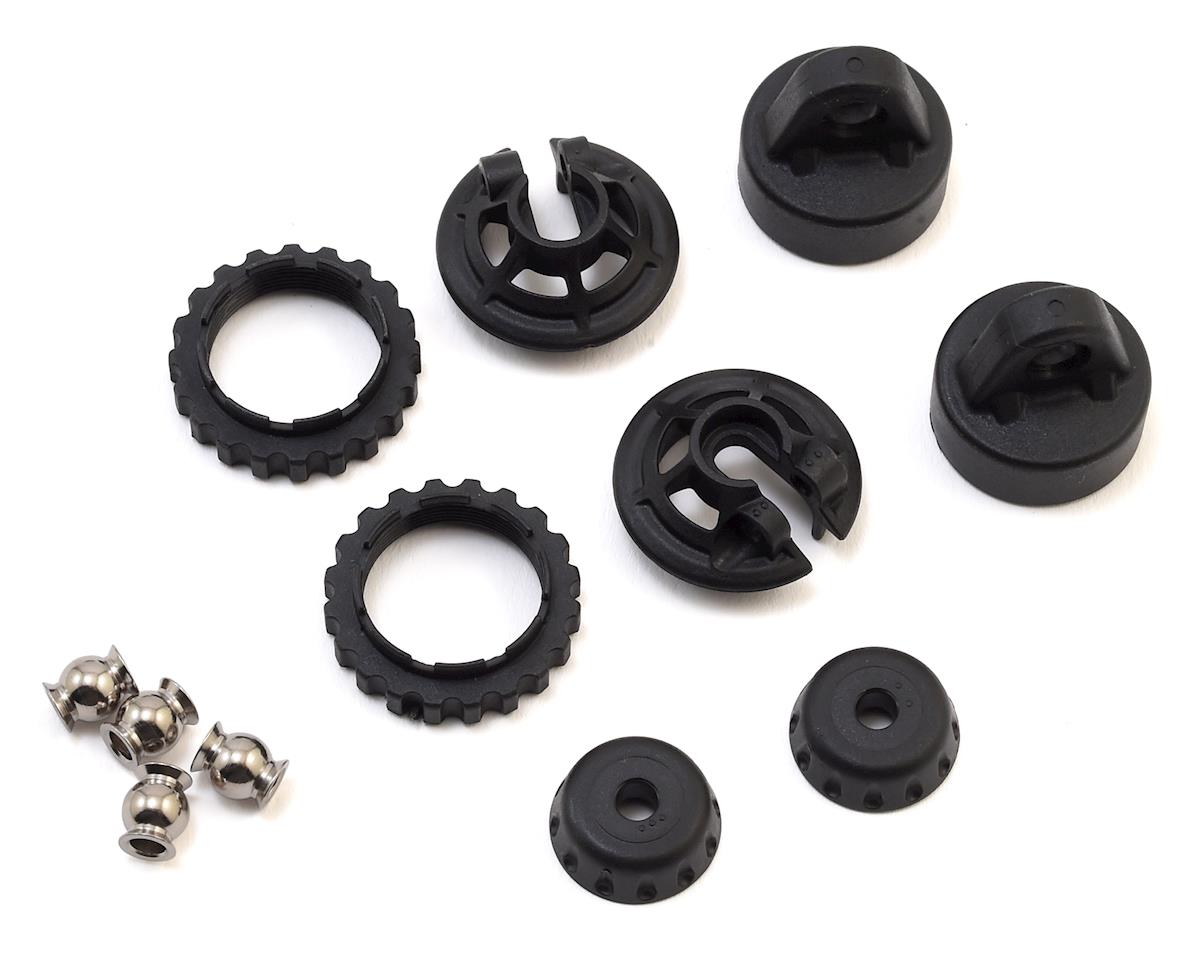

Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars

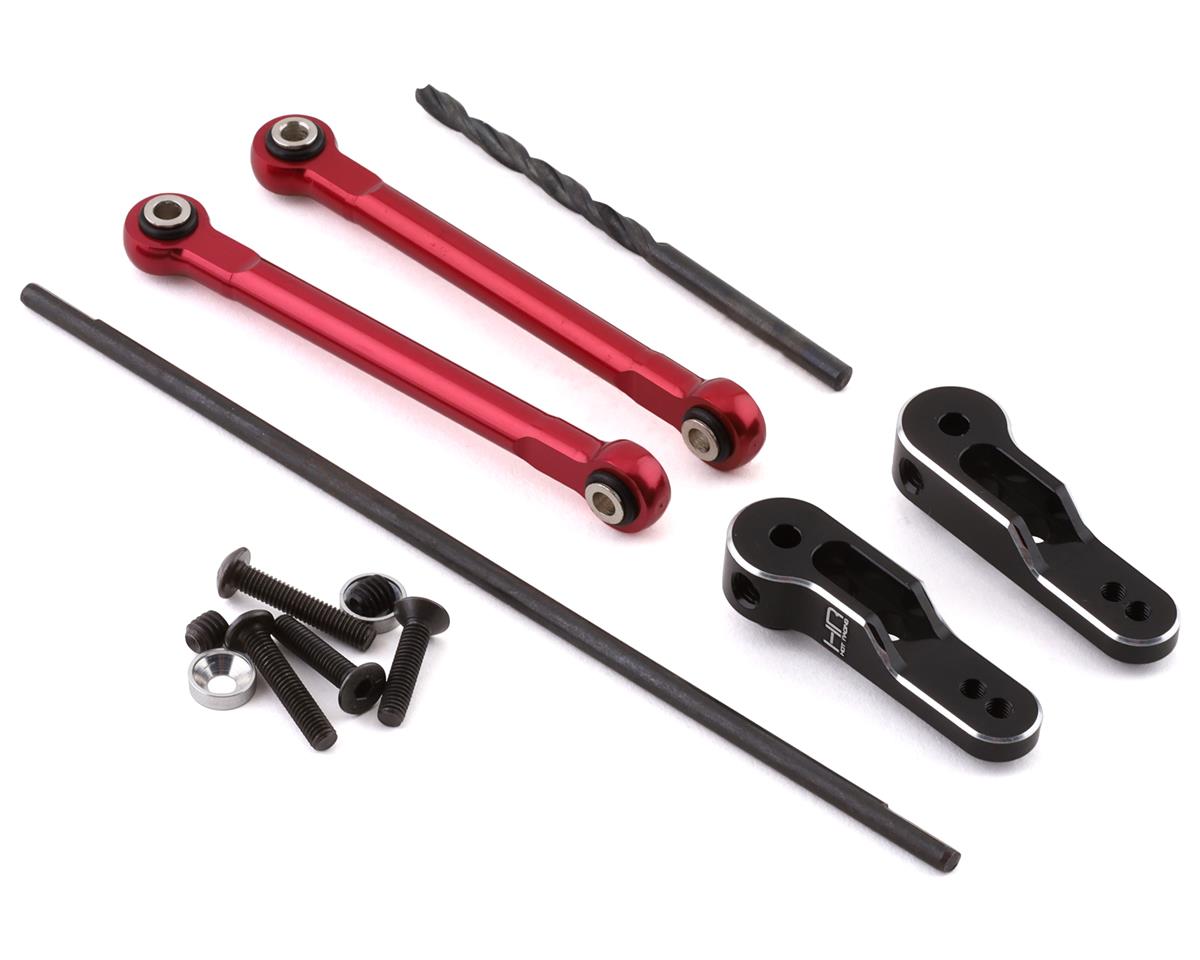

Realistic and functional front and rear sway bars
Detailed functional limit straps on rear axle

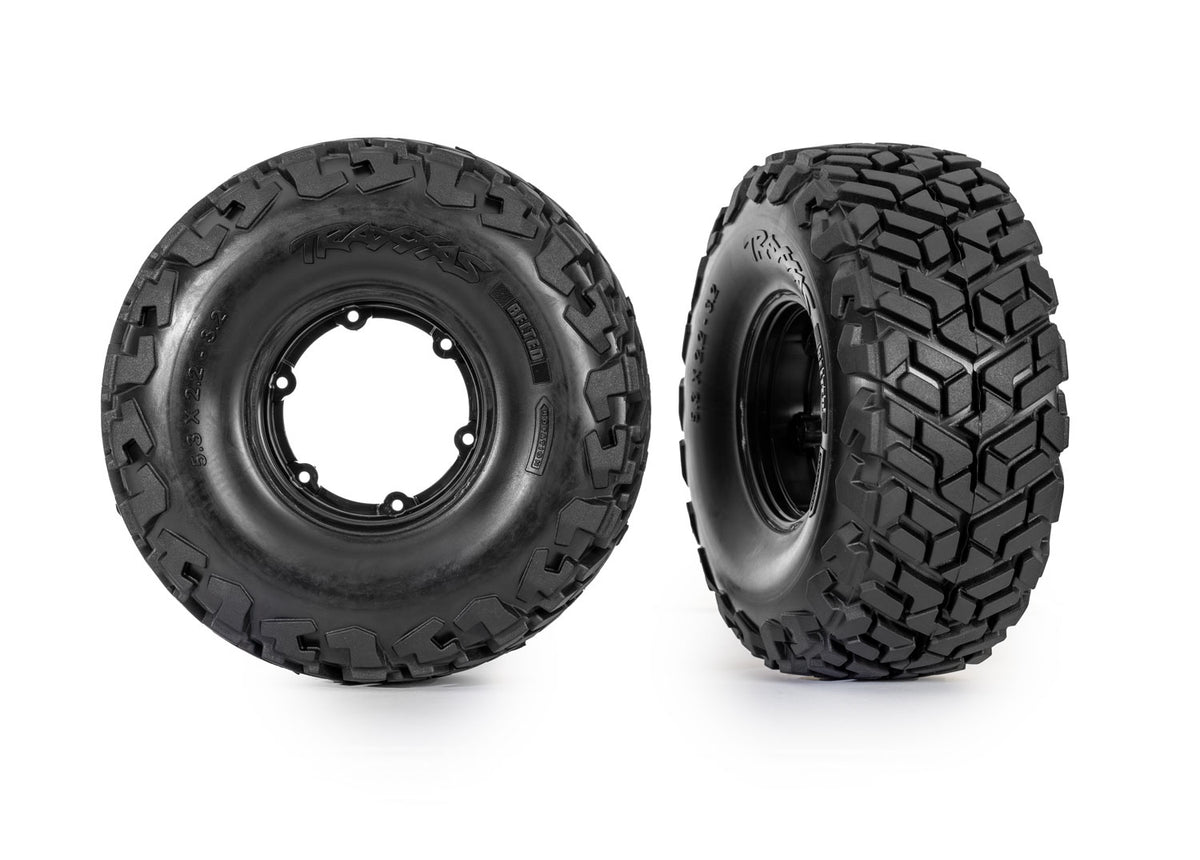

Wheels and Tires

Replica BFGoodrich^® KR3 off-road tires

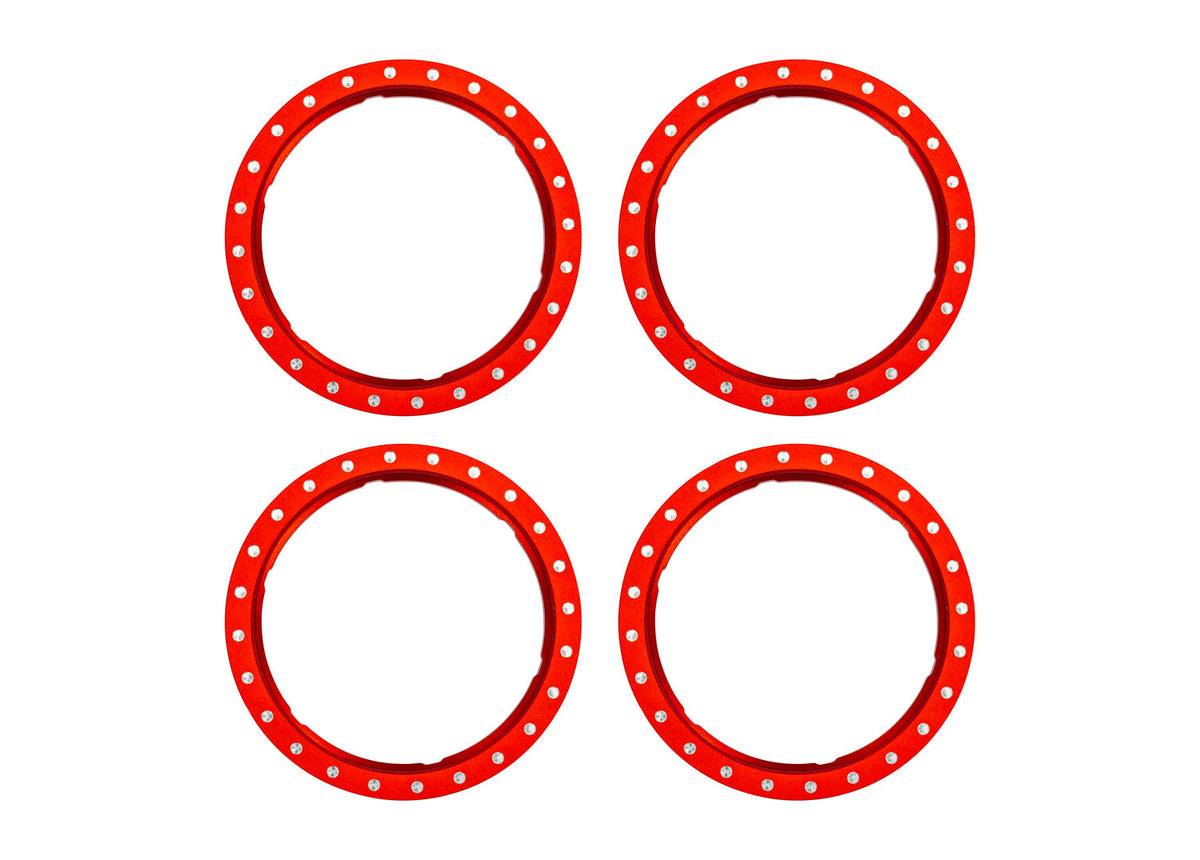

Beadlock-style 17 mm dual-diameter wheels

Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating

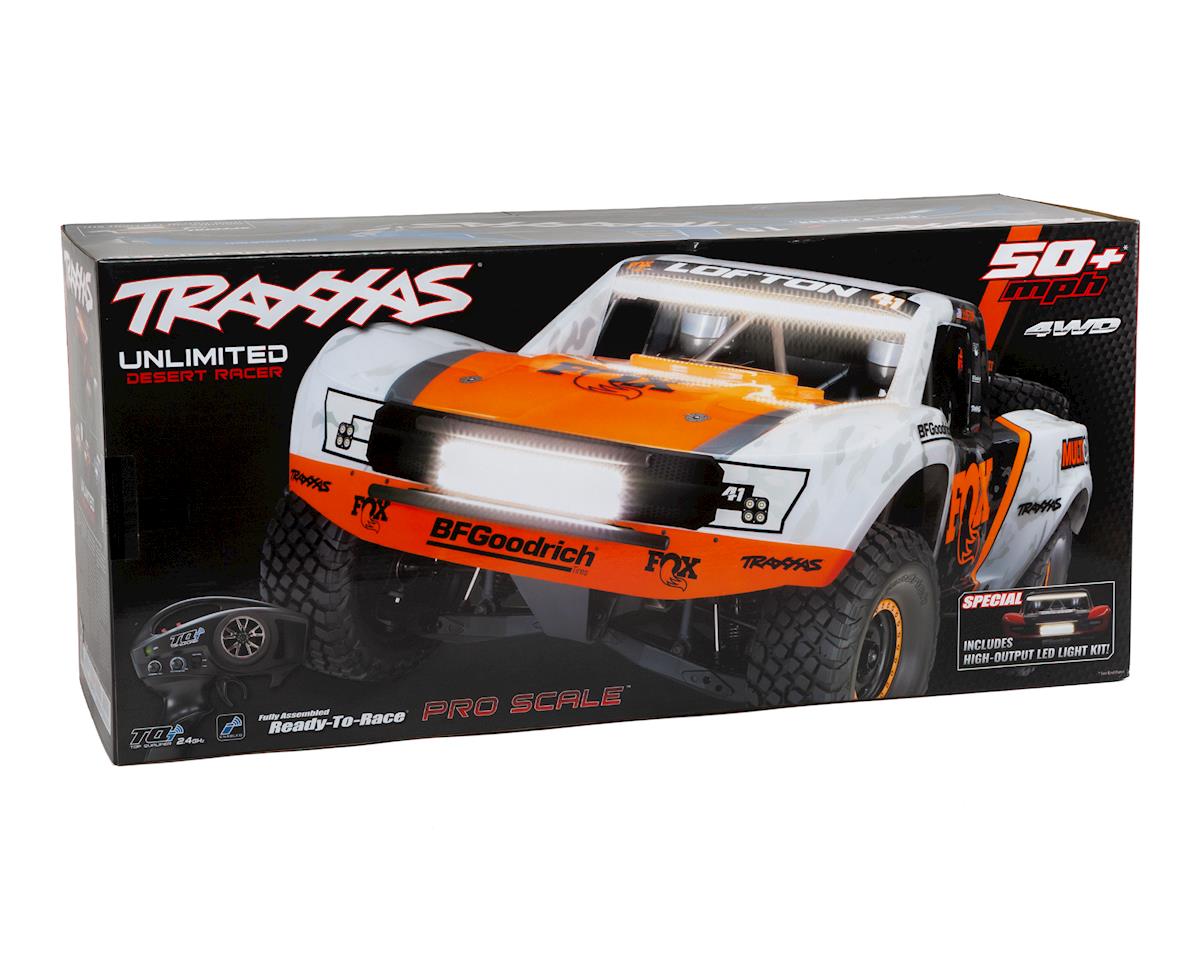

MODEL 85086-4: Unlimited Desert Racer Pro Scale^® 4WD race truck, Ready-To-Race^® with TSM^®, with TQi™ 2.4 GHz radio system, VXL-6s brushless power system, and licensed race replica painted body

What’s In The Box:

Unlimited Desert Racer with VXL-6s ESC and 2200 Kv motor
Quick Start Guide
TQi™ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:

Batteries
Unlimited Desert Racer accepts a single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
Charger
Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
