TRAXXAS

X-Maxx Ultimate

$1,599.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:77097-4-BLUEX

Color: Blue

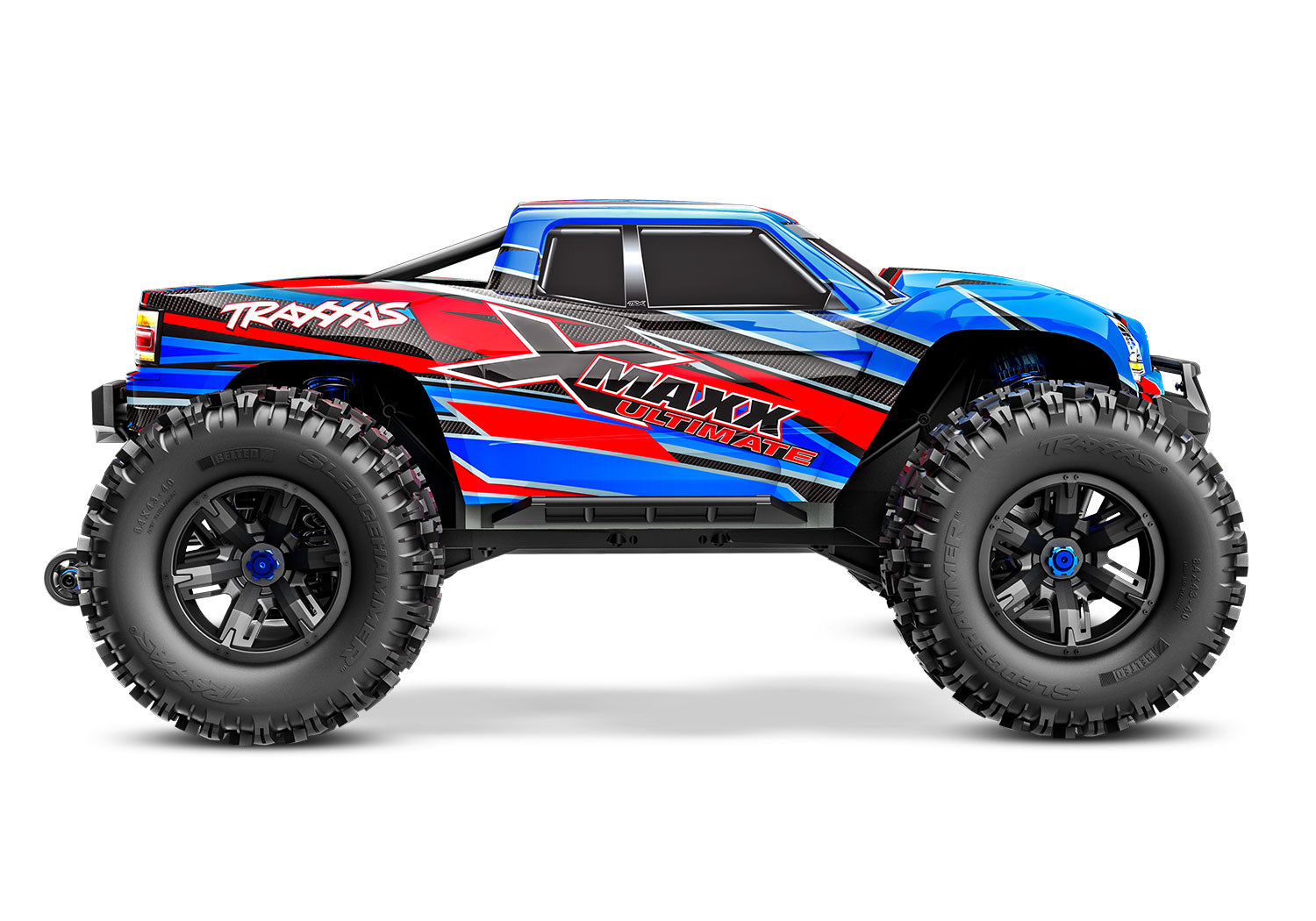

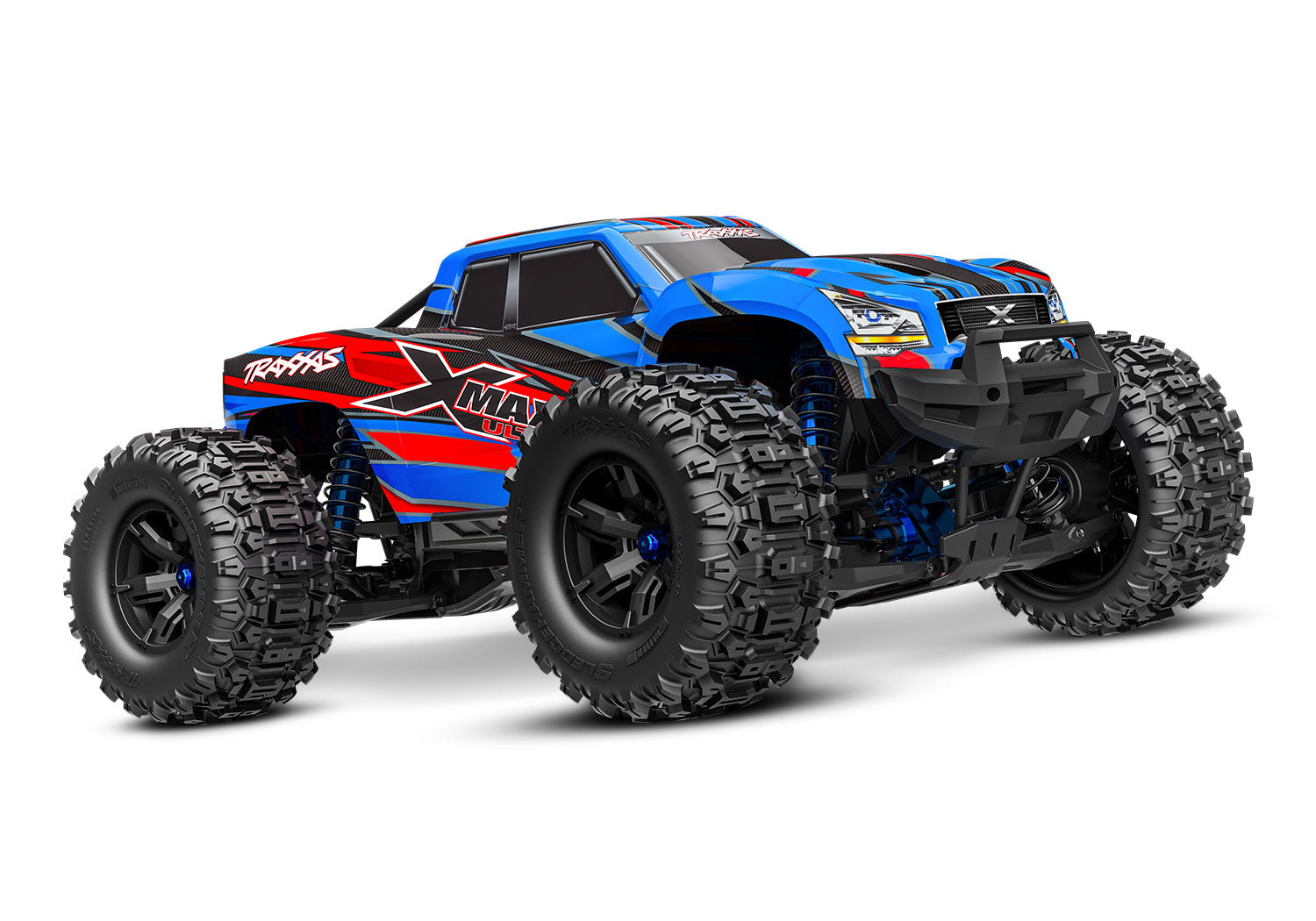

X-Maxx Ultimate

MODEL SPECS

Model Name:	X-Maxx Ultimate
Model Type:	Monster Truck
Top Speed:	50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level:	6
Scale:	X-Truck^®
Weight:	22.20 pounds (9.5 kg)
Length:	30.67 inches (779 mm)
Width:	21.3 inches (540 mm)
Track:	21.3 inches (540 mm)
Height:	13.99 inches (355 mm)

Wheelbase:	18.92 inches (480 mm)
Center Ground Clearance:	4.2 inches (107 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	8.11 (stock, out-of-box)
Gear Pitch:	1.0 metric pitch (Mod 1)
Steering Servo:	2085RL metal gear ultra-high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with wireless module
Battery Compartment Specs:	197 mm X 52 mm X 44 mm

MOTOR SPECS

Motor Name:	Velineon^® 1200XL
Motor Type:	1275 Kv sensorless brushless
Motor Weight:	23.44 ounces (665 g)
Motor Length:	4.32 inches (110 mm)
Motor Diameter:	1.88 inches (48 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	6.5 mm bullet connectors

ESC SPECS

ESC Name:	Velineon^® VXL-8s™
ESC Type:	Brushless
ESC Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
ESC Power Wire:	10 gauge Maxx^® Cable

High Performance Aluminum Upgrades

6061-T6 aluminum C-hubs
6061-T6 aluminum steering blocks
6061-T6 aluminum rear hub carriers
6061-T6 aluminum differential housings
6061-T6 aluminum motor mounts

VXL-8s™ Waterproof Electronic Speed Control

8s LiPo compatible
Built-in cooling fan
Machined heat sinks
10-gauge silicone wire
Integrated protection circuits
LED status lights

Velineon^® 1200XL Brushless Motor

4-pole 1275 Kv
5 mm output shaft
Aluminum slip-on heat sink
Dual motor cooling fans

50+ MPH with Two 4s LiPo Batteries and Optional Gearing (sold separately)
Traxxas Stability Management^® (TSM)

Helps prevents spinouts and loss of control
Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module

Factory-installed telemetry sensors
5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

Quick one-handed installation and removal
Uses pivoting rear latch mechanism
Eliminates body posts and clips
Reinforced for extra protection

8s Drivetrain

Machined, hardened steel pinion and spur gear
Full-time shaft-driven 4-wheel drive
Heavy-duty steel CV driveshafts with laser etching
Beefed-up steel differential output cups
Splined aluminum center driveshaft
Machined aluminum stub axles
Torque-Biasing Center Drive™ absorbs shocks and distributes power
24 mm splined wheel hexes
Sealed, silicone fluid-filled diffs with large module ring and pinion gears

Fixed Motor Mounting System

Rigid aluminum motor mounts
Preset gear mesh adjustments
No manual adjustments required
Motor retention separate from gear mesh

Heavy-Duty Modular Composite Chassis

Interlocking front and rear bulkheads
Motor mounts to rear bulkhead to eliminate gear crunching flex
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit

Snap-Lock Battery Retention System

No body clips or hook and loop straps
Battery hold-downs pivot for easy access
Adjustable for battery size
More secure than conventional retention systems
Integrated into chassis top brace for improved battery tray and chassis stiffness

Bumpers

Front energy absorbing rubber impact bumper
Lower front and rear skids for impact and abrasion resistance
Integrated nerf bars for side impact resistance

Steering

6061-T6 aluminum steering bellcranks
2085RL high-output metal-gear steering servo

650 oz-in torque at 6.0 volts
0.13 sec/60° at 6.0 volts

Double-shear aluminum servo horn
Heavy-duty servo saver spring

Suspension

TUBES 7075-T6 Aluminum front toe links
All critical suspension points have double shear strength
High strength steel suspension pins used throughout
Suspension pins retainers won’t come loose or “back-out”
C-hub and steering block geometry maximizes steering angle
Adjustable roll center
Steel upper and lower tie bars
Full contact sealed bearings used in exposed locations

Aluminum GTX™ Shocks

Machined aluminum threaded body
Extra-large bore and capacity
Ultra-smooth TiN-coated 5.2 mm damper shafts
Lower seal cartridge includes integrated wiper seal combination
Adjustable aluminum upper spring retainer
Aluminum shock caps with pivot balls
Fixed shock locations
Lower spring perches bolted on

Wheels/Tires

Massive 8.4″ Sledgehammer^® belted tires

Virtually eliminates ballooning at high speeds
Open tread block design
2-piece foam insert
High-strength glue and bead design

Large, dual-diameter wheels

MODEL 77097-4: X-Maxx^® Ultimate: fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz radio system, VXL-8s™ brushless power system, and ProGraphix^® clipless body.

What’s In The Box:

X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
VXL-8s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi 2.4 GHz radio system with factory-installed wireless module
High quality maintenance tools

What You’ll Need:

Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).
Charger
4s LiPo Balance Charger with iD^®
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
