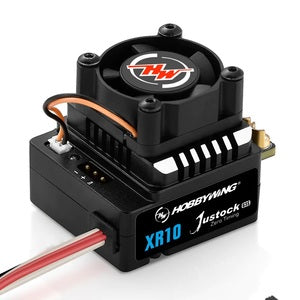

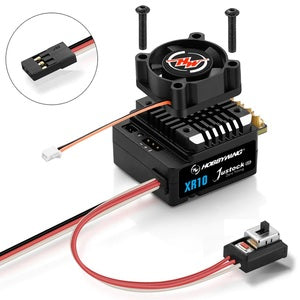

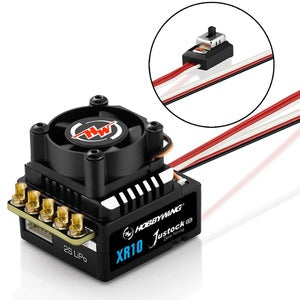

Xerun XR10 Justock G3S ESC

With the XR10 Justock G3S, the timing has been permanently set to 0 degree. With the identical competition motor, this ensures that every driver will have the same power system and have an equal race. The built-in capacitor avoids the trouble of finding installation position for the external capacitor module, saves space and is convenient for layout. The built-in reverse connection protection circuit prevents damaging ESC due to reverse connection of battery. The innovative capacitor overheat protection function can avoid a capacitor explosion caused by overload and damage the ESC. The multiple protections featured include battery low-voltage cutoff protection, over temperature protection, fail safe (throttle signal loss protection) and motor lock-up protection. It supports the multi-function LCD program box pro and OTA programmer to set parameters of the ESC, which is convenient for outside use. It also supports a firmware upgrade of the ESC (Multi-function LCD program box pro or OTA Programmer need to be purchased). It supports various RPM limit values to meet the needs of different races. It can be set directly by the program box pro or OTA programmer.

ESC Overview:

The Xerun XR10 Justock G3S 1/10 Sensored Brushless ESC is a versatile and reliable electronic speed controller designed for competitive RC racing. It features built-in polarity protection to prevent damage from reverse battery connections, ensuring system safety. With programmability options via OTA Wireless module or 3in1 program box, users can easily customize settings to suit their racing preferences. Additionally, its RPM speed limit function offers flexibility with up to 6 different speed selections, catering to various competition requirements worldwide. The ESC also incorporates a built-in capacitor module, eliminating the need for external capacitors and saving space.

Features:

• Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
• Programmable via OTA Wireless module or 3in1 program box
• Built-in capacitor module eliminates the need for external capacitors and unwanted space
• RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
• Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
• Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
• Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
• Supports both CCW (counterclockwise) and CW (clockwise) motor directions
• Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
• ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
• Built-in data logging for post-run reports

Specifications:

• Continuous Current: 60A
• Burst Current: 380A
• Battery: 2S Lipo (Only 2S)
• Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
• ESC programming: Independent programming port
• Motor Supported: Sensor and sensorless brushless motor
• Motor Limit: 10.5T, or greater,3650 Motor
• Application: 1/10, 1/12 On-road and Off-road
• Cooling Fan: Powered by BEC
• Size: 40.9x33.9x32.1mm (LxWxH)
• Weight: 75.4g (Including weight of wire)
• ROAR Approval: Yes

Includes:

• (1) Justock G3SS ESC
• (1) 5V cooling fan
