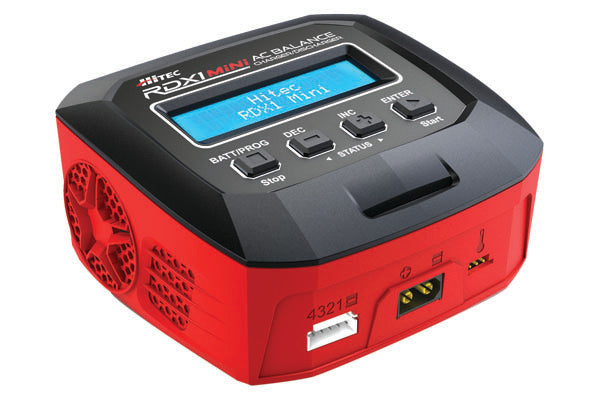

RDX1 Mini 65 Watt Single Port AC Charger

RDX1 Mini 65 Watt Single Port AC Charger

Expanding on the popularity and superior performance of the RDX1 charger line, this is the AC input, micro processor RDX1 Mini. Hitecs sleekly-designed, compact AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including the new generation LiHV. With 6 amps of maximum charging current and 2 amps of discharging current.

Features:

• User-Friendly LCD Interface
• Stores 10 Different Battery Memory Charge/Discharge Profiles
• Terminal Voltage Control
• Built-in Balance Connector (JST, XT)
• Cell Balancing While Discharging
• Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
• Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
• Optional Temperature Sensor for NiCd/NiMH Charging
• Built-in XT60 Connector
• Smart Ventilation Fan

Charging Specifications:

• AC Input: 100-240 Volts AC
• Charge Power: 65 Watts
• Charge Current Range: 0.1 - 6.0 Amps
• Discharge Power: 10 Watts
• Discharge Current Range: 0.1 - 2.0 Amps
• Current Drain for LiPo Balancing: 200mA per Cell
• NiCd/NiMH Battery Cell Count: 6 - 8 Cells
• LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
• Pb Battery Voltage: 6 - 12 Volts
• Dimensions: 4.61 x 4.17 x 2.17 in. (117 x 106 x 55mm)
• Weight: .69 lbs. (315g)
