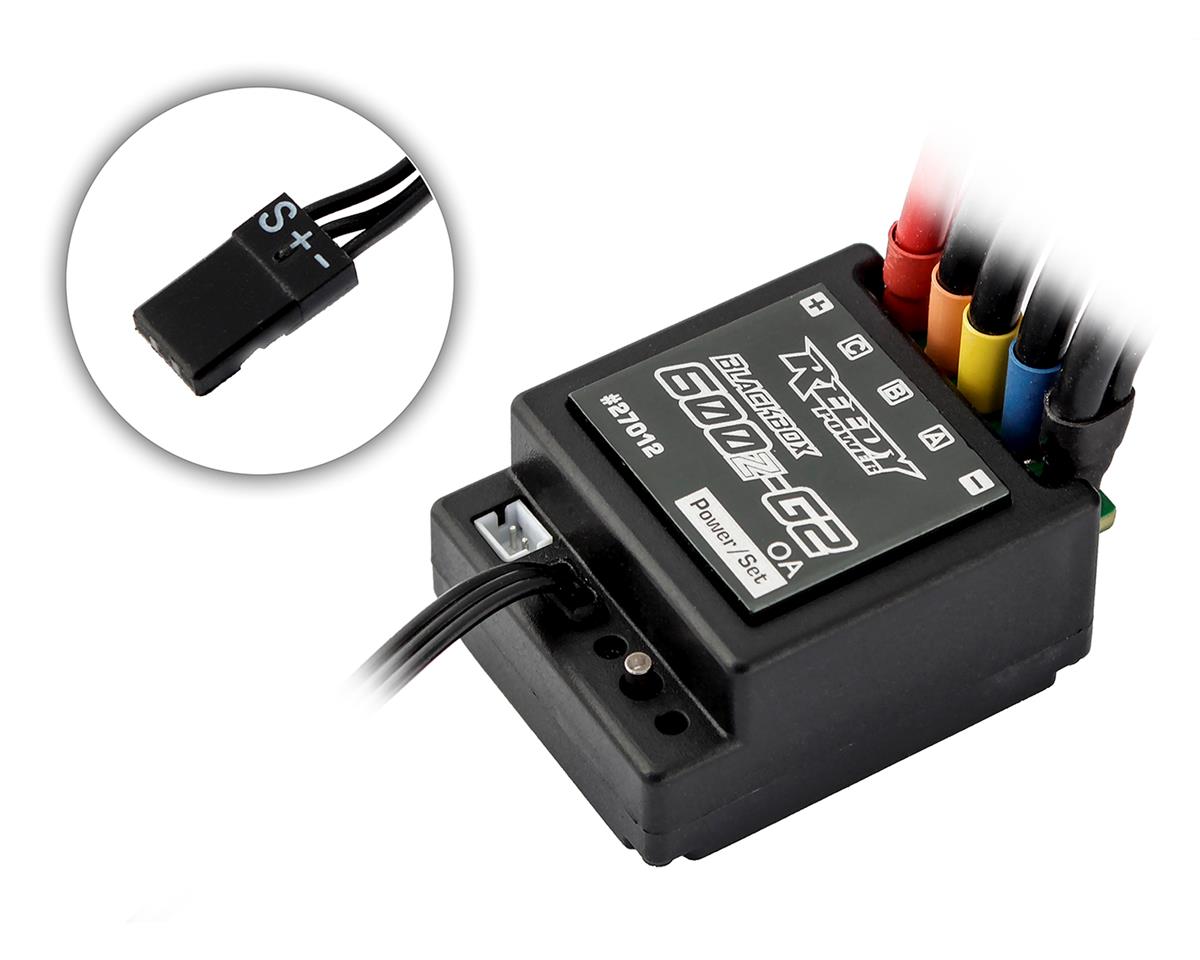

Reedy Blackbox 600Z-G2 2S Zero-Timing ESC

The Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC is an excellent option for entry-level racers thanks to its economical price, versatility, race-proven performance, and improved durability. Excellent throttle and brake feel, a wide range of adjustability, and upgraded hardware make the Blackbox 600Z-G2 suitable for a variety of racing applications, including entry level and cost-controlled “spec” race programs that mandate a specific ESC.

When combined with Sonic 540-FT motors, the pairing also offers the perfect solution for clubs and tracks that are striving to improve entry-level participation or introduce cost-controlled classes for racers of all skill levels.

Features:

• Lightweight plastic case with compact footprint
• Low-profile heat sink
• Fully adjustable brake and throttle functions
• On-board, single-button programming
• Optional Programmer2 programming
• Zero-timing R.O.A.R.-approved software (pending)
• Low-resistance circuitry
• Precision throttle and brake control
• Solder tabs for easy wire placement
• Silicone power wires
• Compact external capacitor
• Firmware updateable
• Competition proven

Adjustable Settings

• Operation Mode – Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation.
• Drag Brake – Adjust automatic braking strength when the throttle trigger is returned to neutral.
• Power Profile – Increase or decreases punch.
• Drive Frequency – Adjust to create a smoother or more aggressive throttle feel.
• Brake Frequency – Adjust to create a smoother or more aggressive brake feel.
• Restore Default – Restore the factory default settings.

Specifications:
Voltage Input: 2S LiPo
On Resistance: 0.0018
Continuous Current: 60
Dimensions: 40.2x31.0x18.8mm
Weight w/o Wires: 37g
Motor Limit: 13.5T

ASC27012
