TRAXXAS

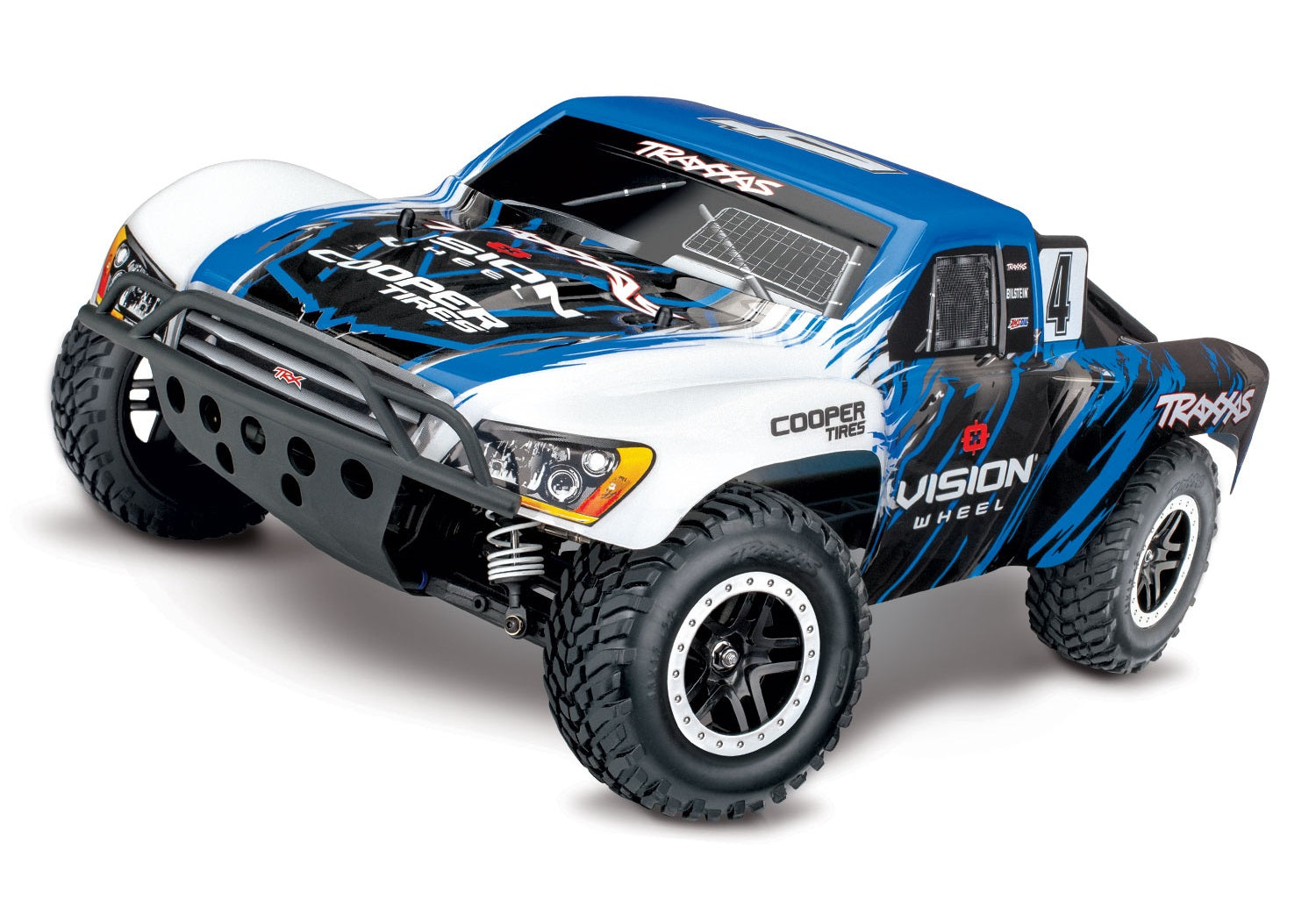

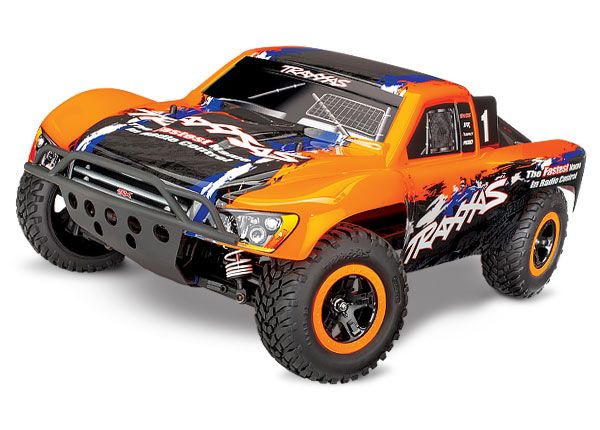

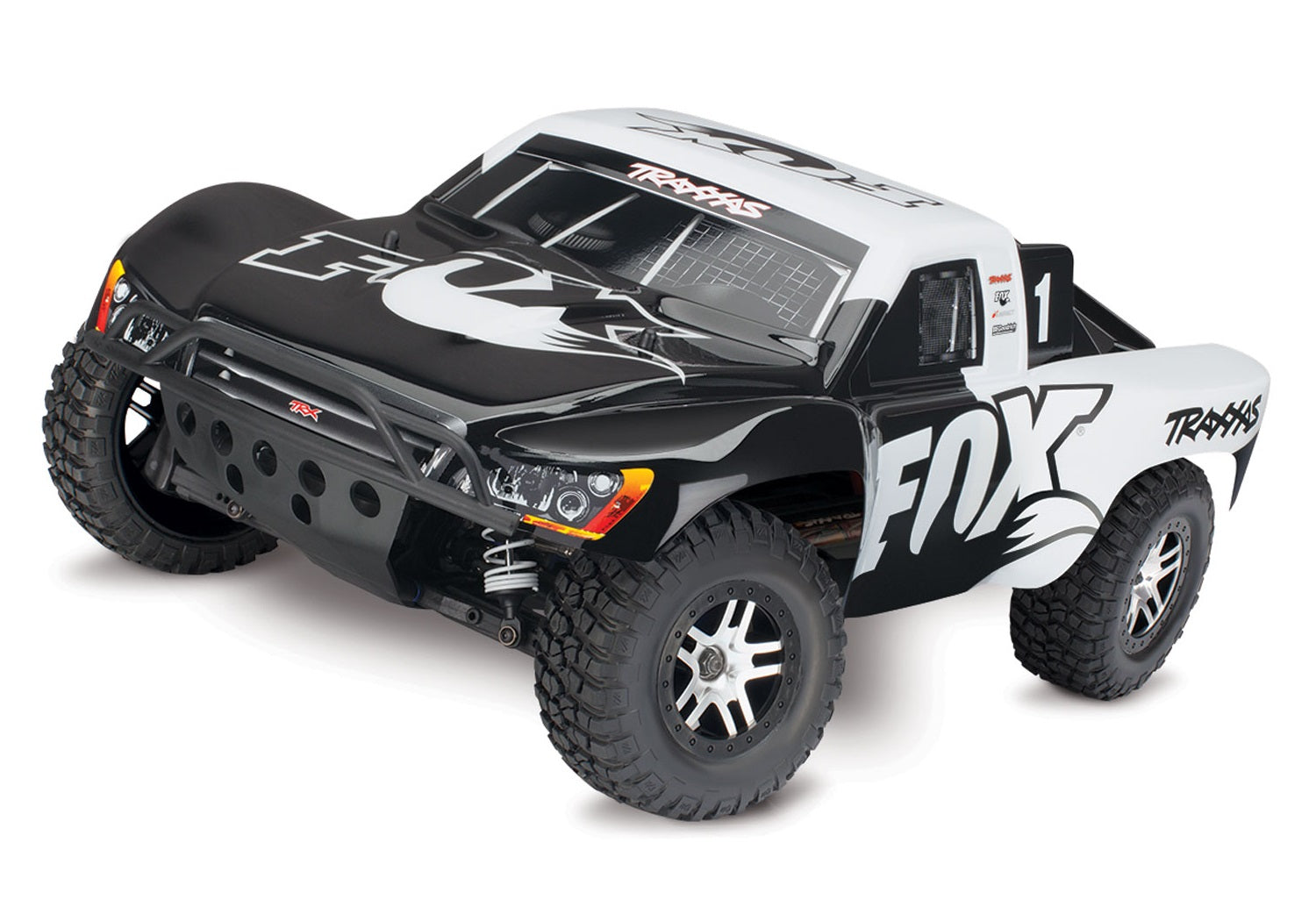

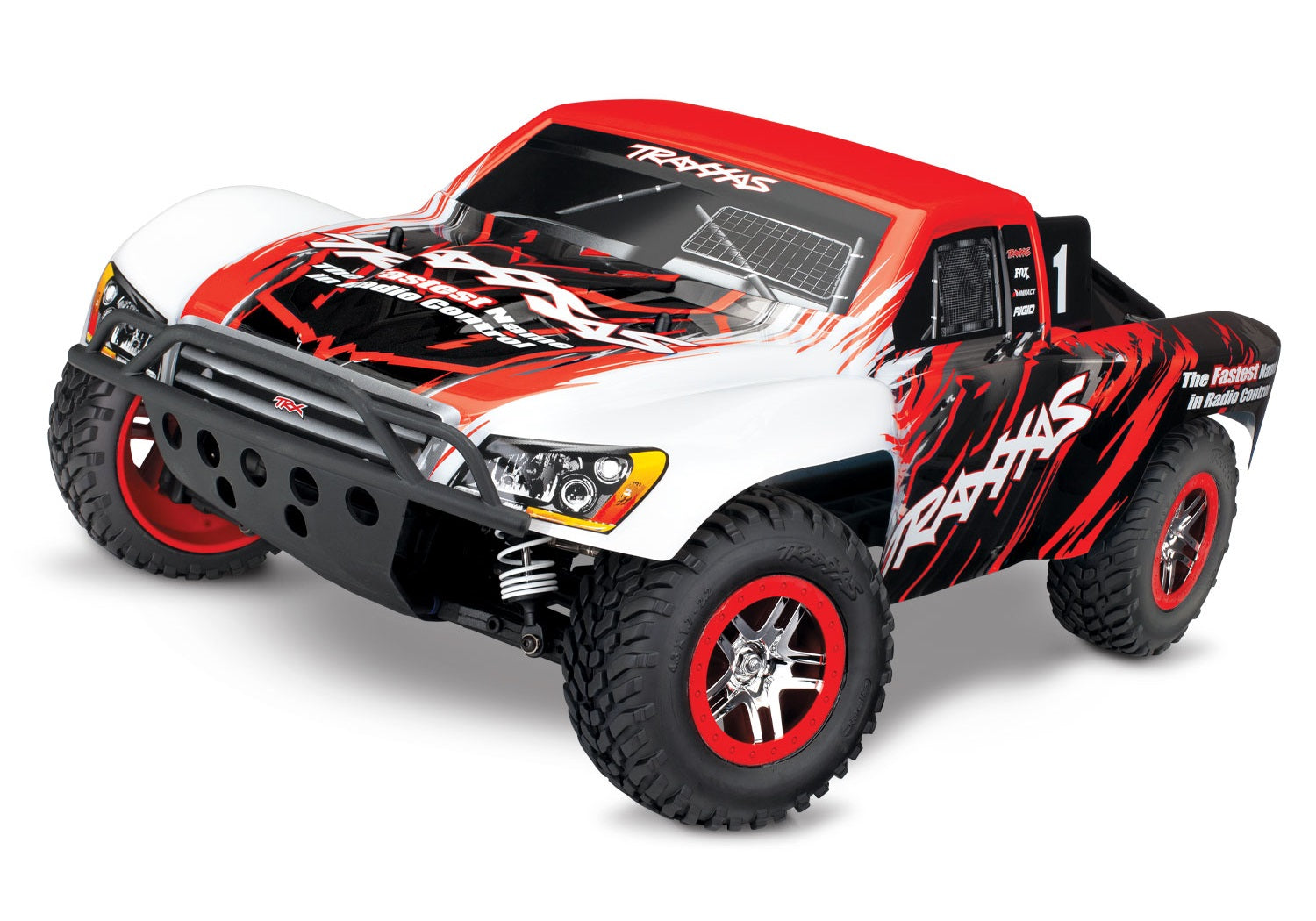

SLASH 4X4 1/10 SCALE 4WD TSM

$399.95 USD

Sale Sold out

Shipping calculated at checkout.

$119.95 Traxxas 3S LIPO COMPLETER 2872X/2970 (addon details...)

Color Fox Orange Red VISN

Product variants

SKU:68086-4

Quantity

Race Replica ProGraphix^® Painted Body
- Pre-painted body with applied decals
- Scale dimensions and looks of actual short course race trucks

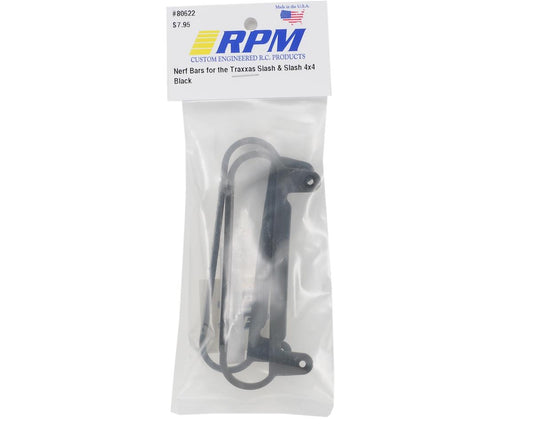

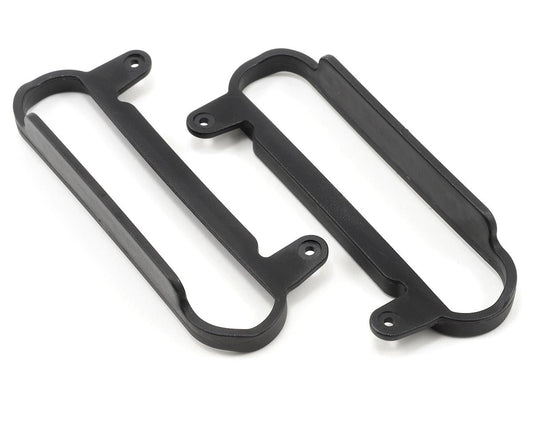

- Chassis nerf bars absorb impact and support the body

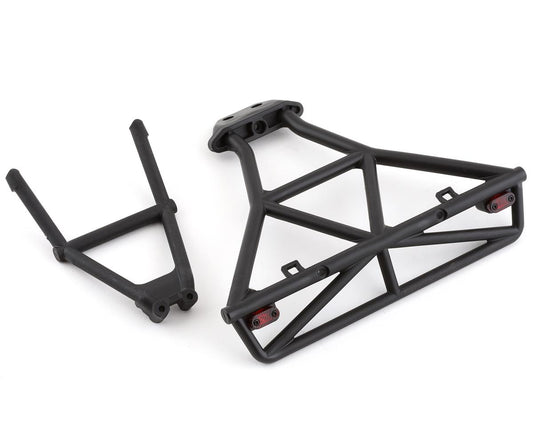

- Scale front and rear tube-style bumpers
VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
  - Sport Mode - Forward / Brake / Reverse
  - Race Mode - Forward / Brake
  - Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
Velineon^® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500kV
- Brilliant blue-anodized finish

Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box

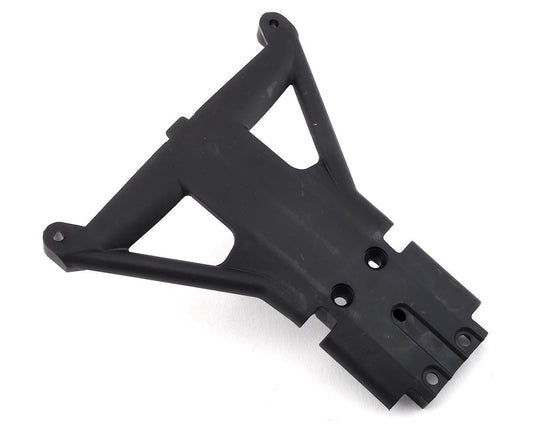

Tough Fiber-Composite Modular Chassis
- Modular chassis makes maintenance quick and easy
- Long 12.75″ wheelbase for increased stability

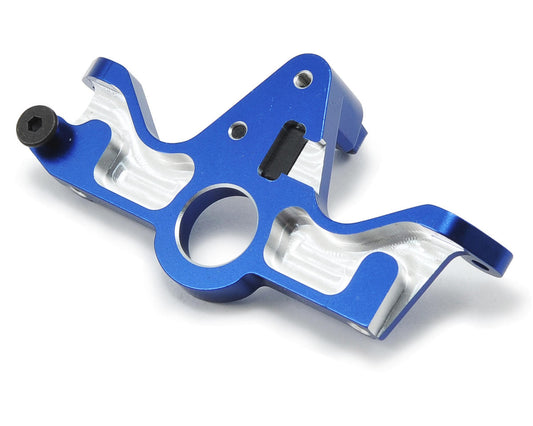

- Easy motor access with single-screw motor plate attachment
- All electronics securely fastened to chassis
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell and 8-cell hump packs
- Accepts many 2s and 3s LiPo battery configurations

Transmission and Driveline
- Full-time shaft-driven 4WD
- Blue-anodized aluminum center driveshaft
- Torque-Control™ slipper clutch with large 32-pitch gearing

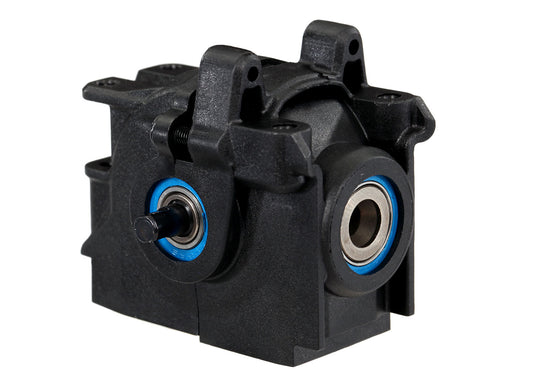

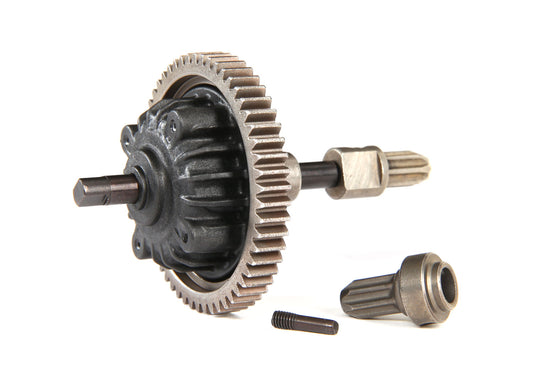

- Sealed, silicone-filled differentials with steel gears
- Heavy-duty telescoping U-joint driveshafts
Steering
- Digital high-torque 2075 waterproof steering servo
- Dual bellcrank steering system with integrated servo saver
Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
Wheels and Tires
- Pre-glued scale all-terrain tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels
Rubber-Sealed Ball Bearings
Precision Hex Hardware
Backed by Unparalleled Traxxas Support and Parts Availability
Requires Battery and Charger (Sold Separately)

Model Name:	Slash 4X4 VXL
Model Type:	Short Course Trucks
Model Speed:	60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level:	2
Scale:	1/10
Weight:	5.82 pounds (2.64 kg)
Length:	22.36 inches (568 mm)
Width:	11.65 inches (296 mm)
Front Track:	11.65 inches (296 mm)
Rear Track:	11.65 inches (296 mm)
Height:	7.60 inches (193 mm)

Wheelbase:	12.75 inches (324 mm)
Center Ground Clearance:	2.83 inches (72 mm)
Drivetrain:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	11.82:1
Gear Pitch:	32 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Expansion Kit:	Battery expansion kit available (5827X).
Battery Compartment Specs:	165 mm X 49.5 mm X 23 mm / 25 mm

Motor Name:	Velineon® 3500
Motor Type:	Sensorless brushless
Motor Weight:	9.24 ounces (262 g)
Motor Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	3.5 mm bullet

ESC Name:	VXL-3s™ electronic speed control
ESC Type:	Brushless
ESC Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	12 gauge Maxx® Cable
